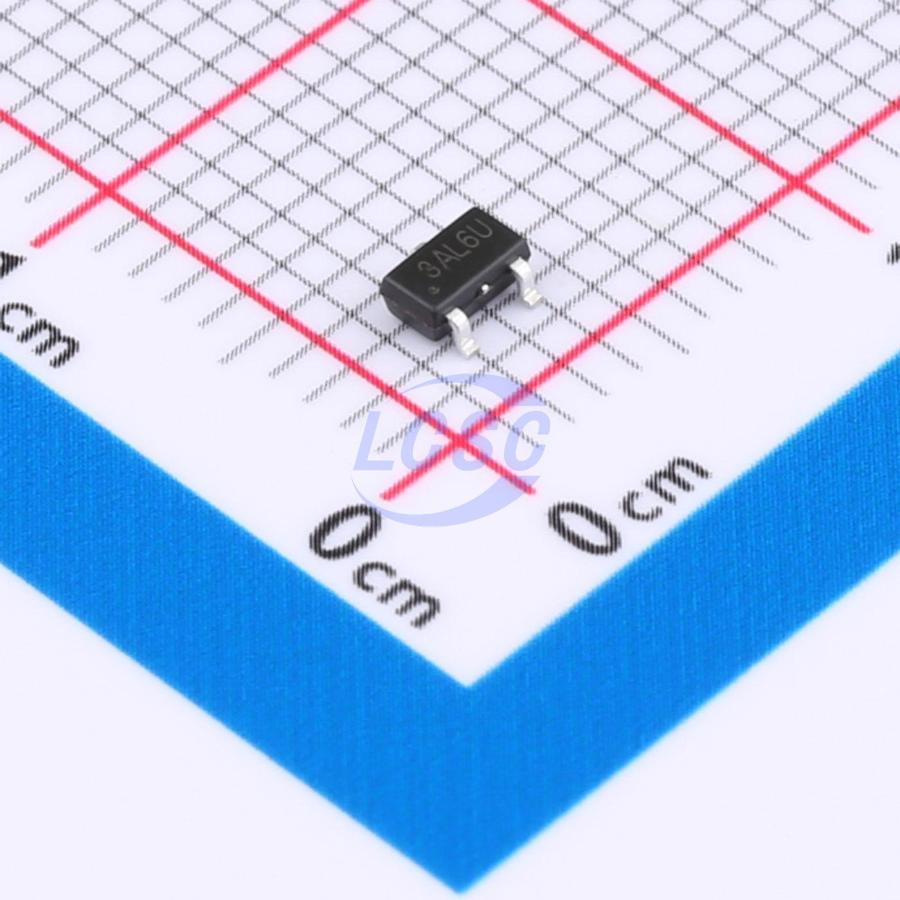

LTR3312T20YT3

The LTR33 series devices are low temperature drift (20 ppm/°C maximum), low-power, high-precision CMOS voltage reference, featuring ± 0.1% initial accuracy, low operating current with power consumption less than 500 μA. This device also offers very low output noise of 15 μVPP/V, which enables its ability to maintain high signal integrity with high-resolution data converters in noise critical systems. Packaged in the same SOT-23-3 package, LTR33xx offers enhanced specifications and pin-to-pin replacement for REF33xx and LM4132. Stability and system reliability are further improved by the low output-voltage hysteresis of the device and low long-term output voltage drift. LTR33xx is specified for the wide temperature range of -40 to +125°C.

Applications

• Data acquisition (DAQ)
• PLC analog I/O modules
• Field transmitters
• Motor drive control module
• Battery test equipment
• LCR meters

Key features

• Voltage options: 1.25 V, 2.048 V, 2.5 V, 3.0 V, 3.3 V, 4.096 V
• Initial accuracy: ± 0.1% (maximum)
• Low temperature coefficient: 20 ppm/°C (maximum)
• Output 1/f noise at 0.1 to 10 Hz: 15 μVPP/V
• Supply voltage: 2.7 to 5.5 V
• Power consumption: < 500 μA
• Start-up time: < 400 μs
• Operating temperature: -40 to 125°C
• Output Current: ±5 mA
