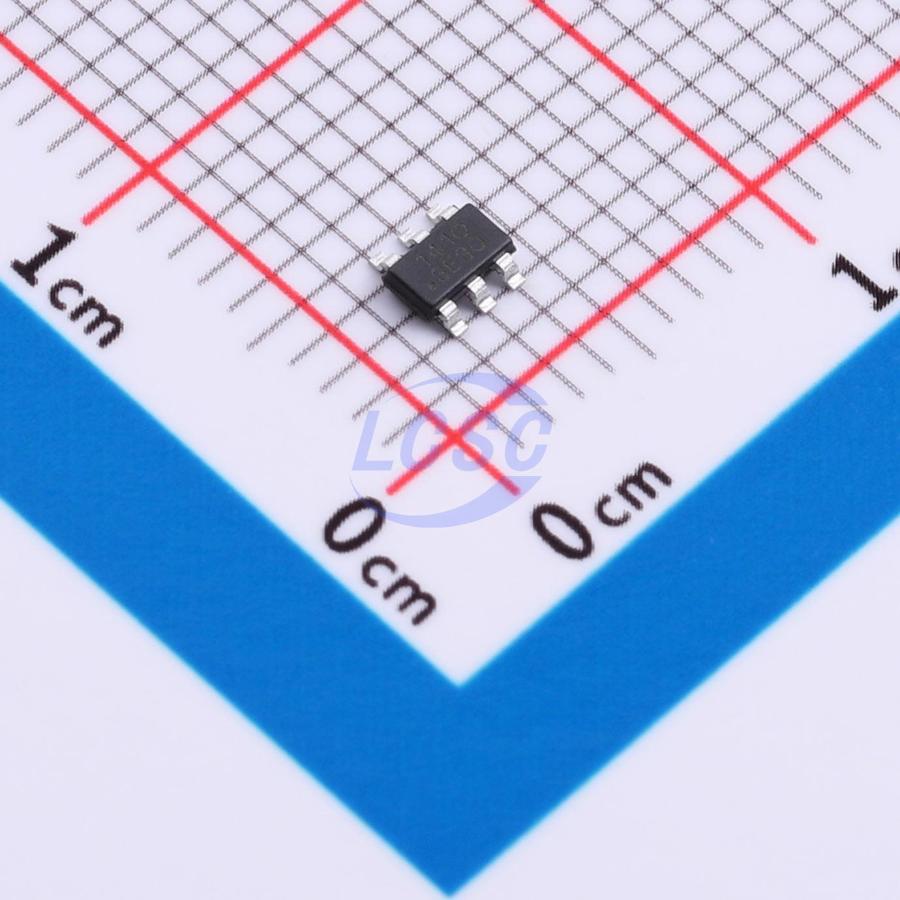

LV2842XLVDDCR-JSM
Step-down type 1MHz Adjustable 1A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LV2842XLVDDCR-JSM
- Store part #
- C50376724
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,705 in stock
#C50376724
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.21 | ₹146.05 |
| 50+ | ₹23.07 | ₹1,153.50 |
| 150+ | ₹20.45 | ₹3,067.50 |
| 500+ | ₹17.17 | ₹8,585.00 |
| 3,000+ | ₹15.70 | ₹47,100.00 |
| 6,000+ | ₹14.83 | ₹88,980.00 |
5 × ₹29.21
₹146.05
excl. GST
₹172.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LV2842XLVDDCR-JSM
₹146.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The LV2842XLVDDCR is a 40V, 1A step-down converter integrating a 400 mΩ high-side MOSFET and a 200 mΩ low-side MOSFET. Its input voltage range spans 4.6V to 40V, making it suitable for applications powered by unregulated sources such as industrial or automotive systems. The device employs peak current mode control with a fixed switching frequency. In sleep mode, quiescent current is 80uA and shutdown current is 1uA, making it well-suited for battery-powered systems. Integrated protection features include cycle-by-cycle current limiting, thermal shutdown, short-circuit protection, and overvoltage protection. It is housed in a cost-effective TSOT23-6L package. The device supports a fixed 1MHz switching frequency to minimize external component count, with an internal 1ms soft-start time.
Applications
- Industrial 24V distributed power bus
- Energy meters
- Elevators, PLCs, servo drives
- Automation control
Key features
- Wide input range: 4.6V–40V
- Up to 1A continuous output current
- 0.81V ±2.5% feedback reference voltage
- Integrated 400mΩ high-side and 200mΩ low-side power MOSFETs
- Fixed frequency 1MHz
- Pulse skip mode at light load
- 80uA quiescent current in sleep mode
- 80ns minimum on-time
- 1ms internal soft-start time
- Overcurrent protection with hiccup mode
