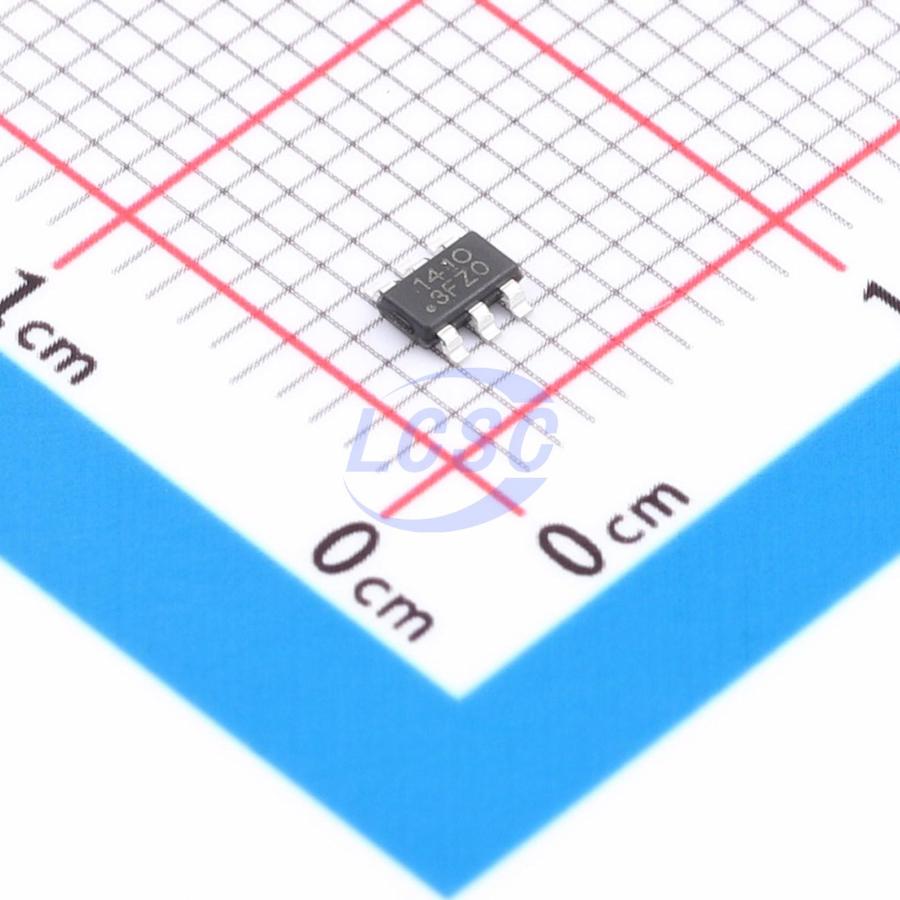

LV2842YLVDDCR-JSM
Step-down type 1MHz Adjustable 1A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LV2842YLVDDCR-JSM
- Store part #
- C50376710
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C50376710
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.85 | ₹124.25 |
| 50+ | ₹19.50 | ₹975.00 |
| 150+ | ₹17.21 | ₹2,581.50 |
| 500+ | ₹14.35 | ₹7,175.00 |
| 3,000+ | ₹13.07 | ₹39,210.00 |
| 6,000+ | ₹12.32 | ₹73,920.00 |
5 × ₹24.85
₹124.25
excl. GST
₹146.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LV2842YLVDDCR-JSM
₹124.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
LV2842YLVDDCR is a 40V, 1A buck converter integrating a 400 mΩ high-side MOSFET and a 200 mΩ low-side MOSFET. The device features a wide input voltage range of 4.6V to 40V, suitable for various applications powered by unregulated supplies. It employs peak current mode control with a fixed switching frequency. In sleep mode, the quiescent current is 80uA and the shutdown current is 1uA, making it well-suited for battery-powered systems. The device integrates multiple protection features, including cycle-by-cycle current limiting, thermal shutdown, short-circuit, and overvoltage protection. It comes in a cost-effective TSOT23-6L package.
Applications
- Industrial 24V distributed power bus
- Energy meters
- Elevators, PLCs, servo systems
- Automatic control
Key features
- Wide input voltage range: 4.6V to 40V
- Up to 1A continuous output current
- 0.81V ± 2.5% feedback reference voltage
- Integrated 400mΩ high-side and 200mΩ low-side power MOSFETs
- Fixed frequency 1MHz
- Pulse skip mode at light load
- 80uA quiescent current in sleep mode
- 80ns minimum on-time
- 1ms internal soft-start time
- Overcurrent protection with hiccup mode
