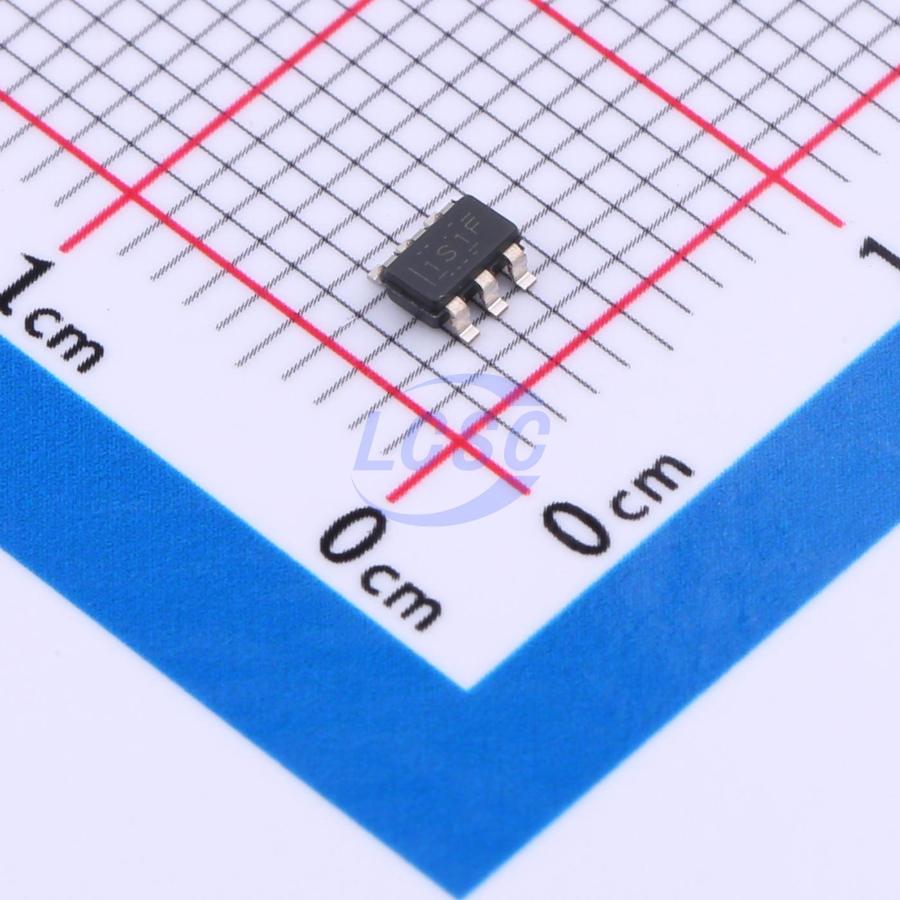

LV3842XDBVR

The LV3842 is an easy to use synchronous step- down DC- DC converter capable of driving up to 600- mA load current. With a wide input range of 4V to 36 V, the device is designed for a wide range of industrial applications for power conditioning from an unregulated source. The LV3842 employs 1.1- MHz switching frequency for small solution size. The LV3842 also has FPWM (forced PWM) version to achieve constant frequency and small output voltage ripple over the full load range. Soft- start and compensation circuits are employed internally which allows the device to be used with minimum external components. The device has built- in protection features, such as cycle- by- cycle current limit, hiccup mode short- circuit protection, and thermal shutdown in case of excessive power dissipation. The LV3842 is available in SOT- 23- 6 package.

Applications

• Electricity meter
• Smart meter data collector, concentrator
• Power Line Communication (PLC) module
• General purpose wide VIN power supplies

Key features

• New product available
• For faster time to market
• Configured for rugged industrial applications
• 4-V to 36-V input voltage range supporting 40-V absolute maximum rating
• 600-mA continuous output current
• 70-ns minimum switching-on time
• 98% maximum duty cycle
• PFM and Forced PWM (FPWM) options
• 1.1-MHz switching frequency
• Support start-up with pre-biased output
• Short-circuit protection with hiccup mode
• ±0.5% tolerance voltage reference at 25°C junction temperature
• Precision enable
• Overtime protection
• Small solution size and ease of use
• Integrated synchronous rectification
• Internal compensation for ease of use
• SOT-23-6 package
