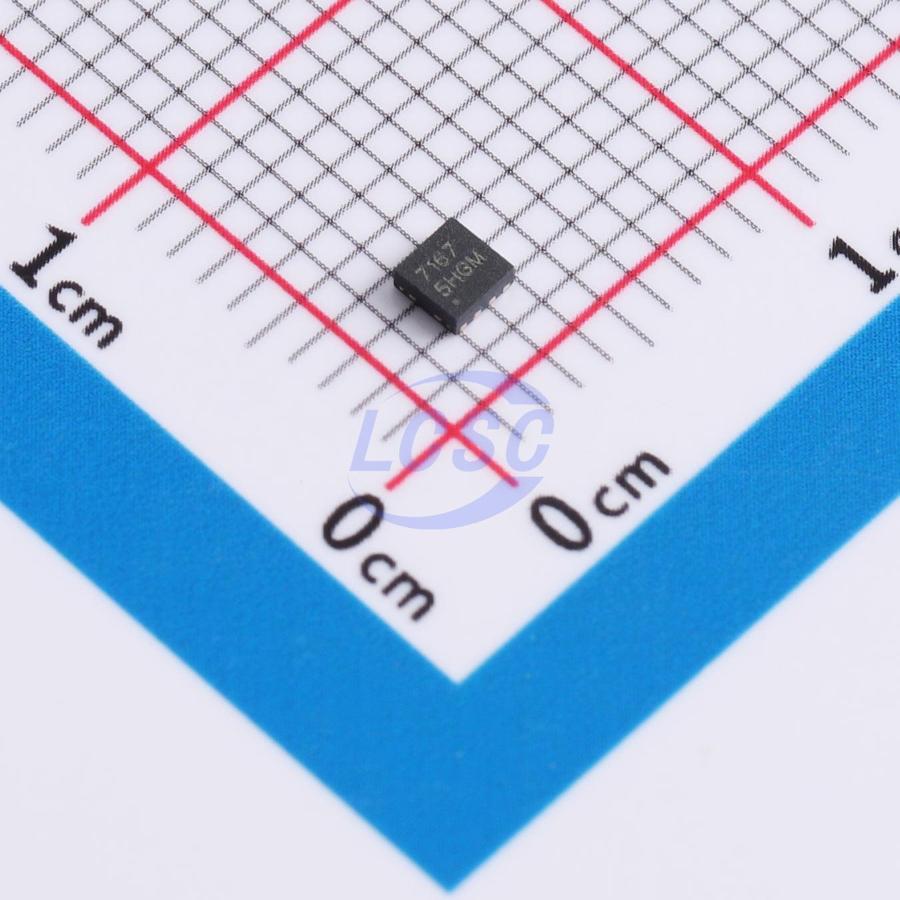

LX7167CLD-TR

LX7167 is a step-down PWM Switching Regulator IC with integrated high side P-CH and low side NCH MOSFETs. The IC operates using a hysteretic control topology with a full load operating switching frequency of 3 MHz allowing small output filter components while maintaining excellent dynamic load response. The operational input voltage range of LX7167 is from 3V to 5.5V. The part has a Power Save Mode (PSM) that automatically transitions between PWM and PSM mode depending on the load current. This allows the converter’s efficiency to remain high when load current drops. There is a Power Good function to indicate the status of the IC. In the shutdown mode, the IC’s current consumption is reduced to less than 1μA and the output capacitor is discharged. Other features of the part are: a) Cycle-by-cycle current limit followed by HICCUP mode which reduces the overall power dissipation of the internal MOSFETs, b) thermal protection and internal digital soft start. The LX7167 is available in a 2mm x 2mm 8 pin exposed pad DFN package.

Applications

• HDD
• Set-Top Box
• LCD TVs
• Notebook/Netbook
• Routers
• Video Cards
• PC Peripherals
• PoE Powered Devices
• Smart Phone

Key features

• 2.4A Step-down Regulator
• Operational Input Supply Voltage Range: 3V - 5.5V
• Integrated PMOS and NMOS
• Load Current from Zero to 2.4A
• 3MHz Switching Frequency
• SKIP Pulse to Improve Light Load Efficiency
• Input UVLO and OV Protection
• Enable Pin
• Power Good
• Internal Soft-start
• Cycle-by-Cycle Over Current Protection
• Hiccup Mode Operation Under FB UVLO
• RoHS Compliant for Pb Free
