Lingyang Micro

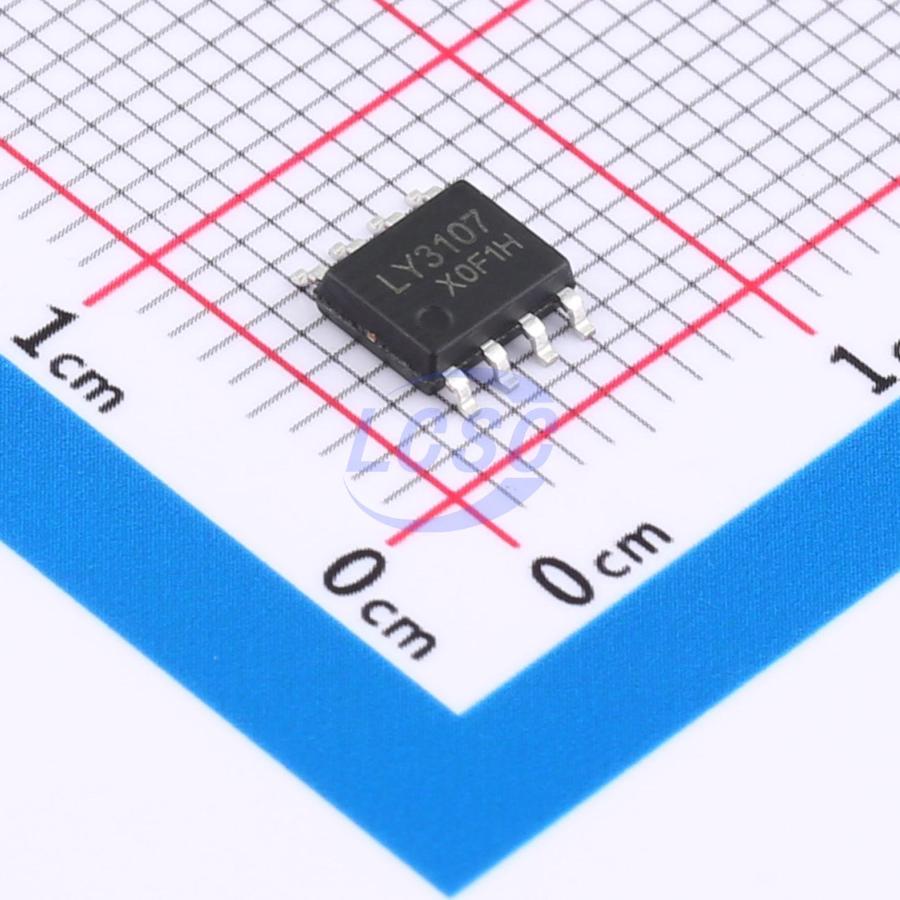

LY3107

LED Driver IC 1.6A SOP-8

SOP-8RoHSSold out at source

Rechargeable inductive lighting control chip

Manufacturer: Lingyang Micro
Manufacturer part #: LY3107
Store part #: C46613932
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,900 in stock

#C46613932

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹8.45	₹84.50
100+	₹6.72	₹672.00
300+	₹5.86	₹1,758.00
1,000+	₹5.21	₹5,210.00
4,000+	₹4.70	₹18,800.00
8,000+	₹4.45	₹35,600.00

Quantity (min 10, multiples of 10)

10 × ₹8.45

₹84.50

excl. GST

₹99.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LY3107

₹84.50 for 10 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Operating temperature: -25℃~+125℃
Type: DC-DC
Output Current: 1.6A
Voltage - Input(DC): 4.5V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.105 g

Overview

This chip integrates a lithium battery charge management module, LED function control module, and protection module, with a shutdown standby current of only 5uA. Output illumination is activated upon detecting a high level on the enable pin, with three selectable output sustain durations — 16S, 32S, and 64S — selected via different states of the FUN pin. Charge current is externally adjustable from 0.3A to 1A, with a maximum output current of 1.6A; applications exceeding 1.6A can also be achieved by adding an external PMOS transistor.
