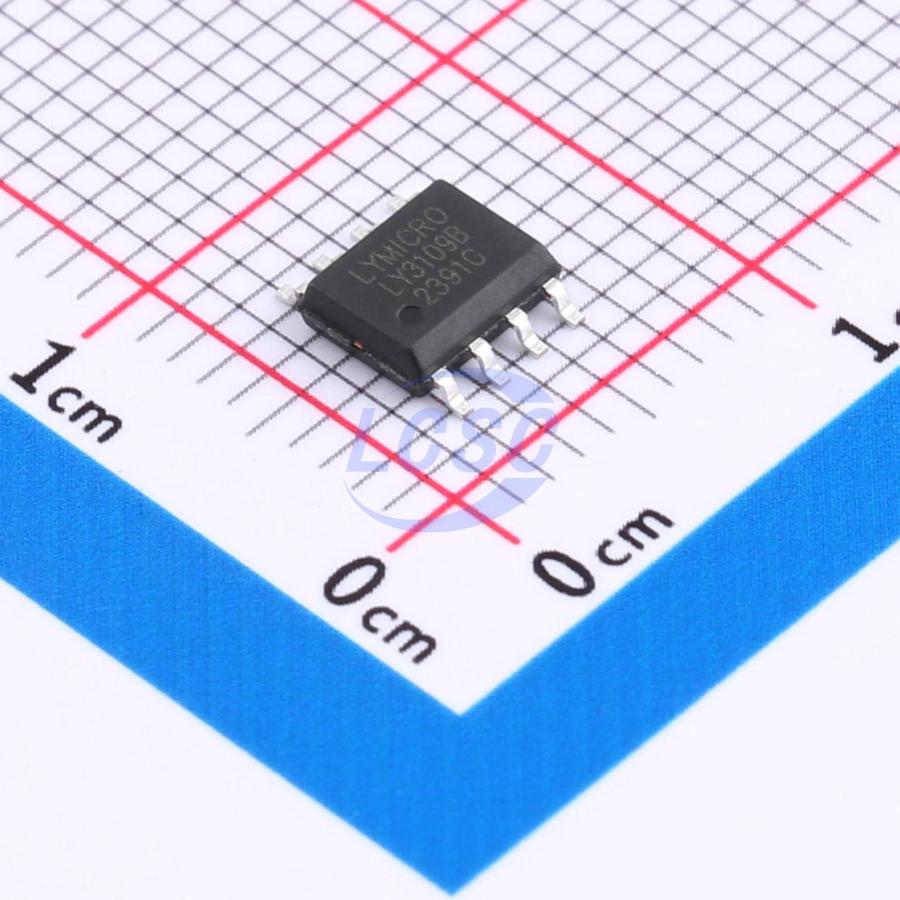

Lingyang Micro

LY3109B

LED Driver IC 2 Output 1A SOP-8

SOP-8RoHSActive

Color temperature adjustable rechargeable table lamp control chip

Manufacturer: Lingyang Micro
Manufacturer part #: LY3109B
Store part #: C46613936
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,290 in stock

#C46613936

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.04	₹50.40
100+	₹4.39	₹439.00
300+	₹4.07	₹1,221.00
1,000+	₹3.82	₹3,820.00
4,000+	₹3.64	₹14,560.00
8,000+	₹3.53	₹28,240.00

Quantity (min 10, multiples of 10)

10 × ₹5.04

₹50.40

excl. GST

₹59.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LY3109B

₹50.40 for 10 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Operating temperature: -25℃~+125℃
Number of Channels: 2
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 4.5V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.117 g

Overview

A dual-output tunable color temperature desk lamp controller IC, integrating a Li-ion battery charge management module, LED function control module, and protection module. Standby current in off state is only 3μA. The IC features dual-channel output control with a maximum output current of 1A per channel.
