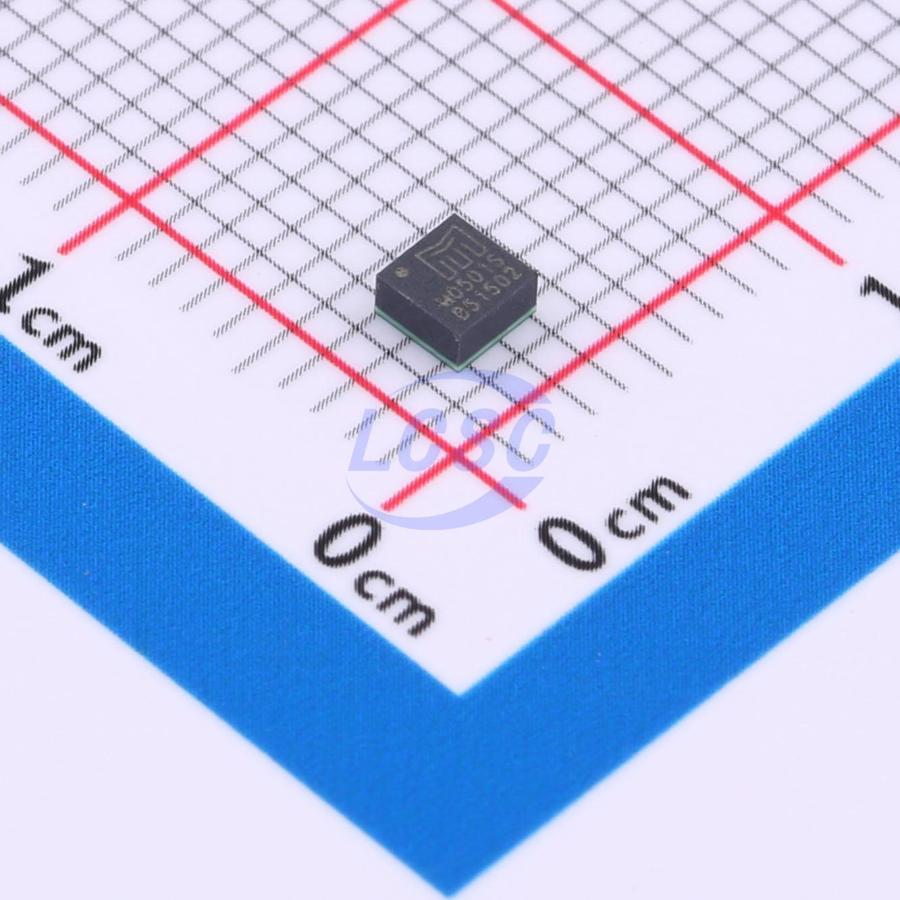

6V Input, 1.5A Step Down DC-DC Power SoC

Manufacturer: iModule
Manufacturer part #: M0501SDLBGP
Store part #: C7509656
Package / case: LGA-13(2.5x2.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,739 in stock

#C7509656

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹496.31	₹496.31
10+	₹420.48	₹4,204.80
30+	₹375.49	₹11,264.70
100+	₹330.08	₹33,008.00
500+	₹309.00	₹1,54,500.00
1,000+	₹299.45	₹2,99,450.00

Quantity (min 1)

1 × ₹496.31

₹496.31

excl. GST

₹585.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

M0501SDLBGP

₹496.31 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 2.5MHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication;Light load efficient mode;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~6V
Output Current: 1.5A
Quiescent Current: 17uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.079 g

Overview

The M0501S is a 1.5A step-down switching mode Power SoC (System on Chip) with integrated power MosFETs, inductor and input capacitors in LGA-13 package. The input voltage is from 2.5V to 6V and the switching frequency is fixed at 2.5MHz. The M0501S provides high efficiency with COT control mode for fast transient response and good loop stability. It works on FCCM for light load and supports 100% duty cycle for low dropout. The M0501S indicates faults by PG and provides short circuit and over-load hiccup protection and over temperature shutdown protection. The M0501S is a 1.5A synchronous step-down switching mode Power SoC with integrated high-side and low-side power MosFETs, inductor and input capacitor in LGA-13 (2.5mm×2.5mm×1.24mm) package. Only FB resistor divider, input and output capacitors are needed to complete the design over 2.5V to 6V input voltage range. The M0501S supports output voltage of 0.8V to 6V with the fixed switching frequency of 2.5MHz. M0501S works on COT control mode that offers excellent transient response over the wide range of input voltage. M0501S operates in Forced Continuous Conduction Mode (FCCM) in light load condition which achieves low ripples. M0501S can work on 100% duty cycle when the dropout between input and output is low. The soft start time of M0501S is 2.5ms internally. Fully integrated protection features include OCP, UVP, OTP and all these faults can be indicated by PG.
