NUVOTON

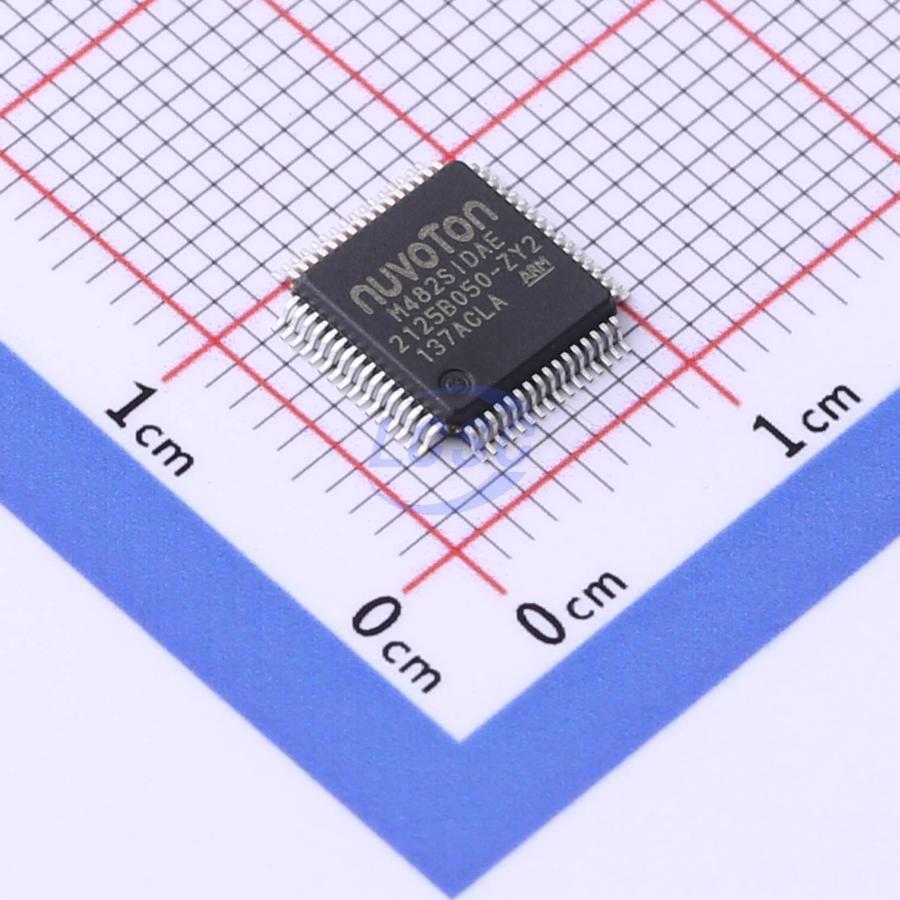

M482SIDAE

ARM Cortex-M4F 32 Bit 192MHz LQFP-64(7x7) Microcontrollers RoHS

LQFP-64(7x7)ROHS3 CompliantActive

32-bit ARM Cortex-M4F Microcontroller

Manufacturer: NUVOTON
Manufacturer part #: M482SIDAE
Store part #: C194456
Package / case: LQFP-64(7x7)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,987 in stock

#C194456

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹640.38	₹640.38
10+	₹550.20	₹5,502.00
30+	₹496.54	₹14,896.20
250+	₹442.20	₹1,10,550.00
500+	₹417.22	₹2,08,610.00
1,000+	₹405.92	₹4,05,920.00

Quantity (min 1)

1 × ₹640.38

₹640.38

excl. GST

₹755.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

M482SIDAE

₹640.38 for 1 + GST

Specifications

Number of I/O: 52
Operating Temperature: -40℃~+105℃
Program Memory Type: FLASH
Voltage - Supply: 1.8V~3.6V
Program Storage Size: 512KB
CPU Core: ARM Cortex-M4F
Core Size: 32 Bit
CPU Maximum Speed: 192MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 3.66 g

Overview

Key features

ARM Cortex - M4 Core
System Manager: Overview, System Reset, System Power Distribution, Power Modes and Wake - up Sources, Power Modes Transition, System Memory Map, SRAM Memory Orginization, Bus Matrix, HIRC Auto Trim, System Timer (SysTick), Nested Vectored Interrupt Controller (NVIC)
Clock Controller: Overview, Clock Generator, System Clock and SysTick Clock, Peripherals Clock, Power - down Mode Clock, Clock Output, USB Clock Source
Flash Memeory Controller (FMC): Overview, Features
General Purpose I/O (GPIO): Overview, Features
PDMA Controller (PDMA): Overview, Features
Timer Controller (TMR): Overview, Features
Watchdog Timer (WDT): Overview, Features
Window Watchdog Timer (WWDT): Overview, Features
Real Time Clock (RTC): Overview, Features
EPWM Generator and Capture Timer (EPWM): Overview, Features
Basic PWM Generator and Capture Timer (BPWM): Overview, Features
Quadrature Encoder Interface (QEI): Overview, Features
Enhanced Input Capture Timer (ECAP): Overview, Features
UART Interface Controller (UART): Overview, Features
Ethernet MAC Controller (EMAC): Overview, Features
Smart Card Host Interface (SC): Overview, Features
I²S Controller (I²S): Overview, Features
Serial Peripheral Interface (SPI): Overview, Features
Quad Serial Peripheral Interface (QSPI): Overview, Features
SPI Synchronous Serial Interface Controller (SPI Master mode): Overview, Features
I²C Serial Interface Controller (I²C): Overview, Features
USCI - Universal Serial Control Interface Controller (USCI): Overview, Features
USCI – UART Mode: Overview, Features
USCI - SPI Mode: Overview, Features
USCI - I²C Mode: Overview, Features
Controller Area Network (CAN): Overview, Features
