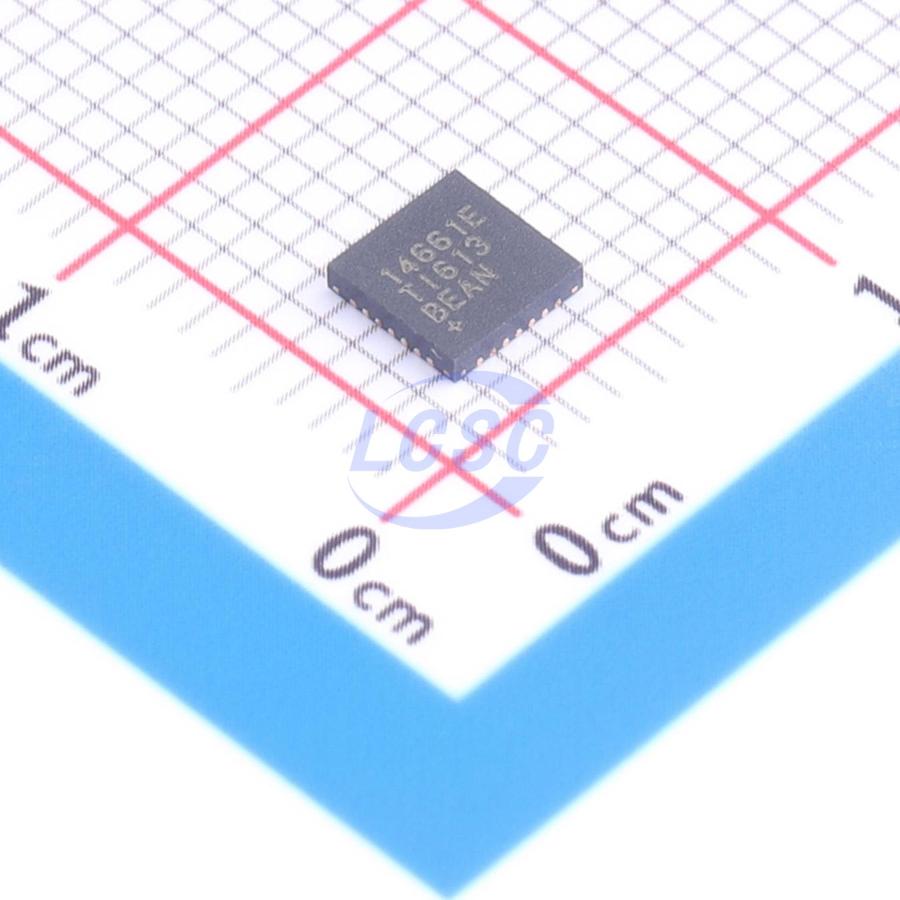

MAXIM

MAX14661ETI+T

5.5Ω 2 1.6V~5.5V TQFN-28(4x4) Analog Switches, Multiplexers, Demultiplexers RoHS

TQFN-28(4x4)ROHS CompliantActive

MAX14661 16:2 Multiplexer

Manufacturer: MAXIM
Manufacturer part #: MAX14661ETI+T
Store part #: C2673449
Package / case: TQFN-28(4x4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,215 in stock

#C2673449

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹799.48	₹799.48
10+	₹684.81	₹6,848.10
30+	₹616.82	₹18,504.60
100+	₹547.76	₹54,776.00
500+	₹516.05	₹2,58,025.00
1,000+	₹501.71	₹5,01,710.00

Quantity (min 1)

1 × ₹799.48

₹799.48

excl. GST

₹943.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX14661ETI+T

₹799.48 for 1 + GST

Specifications

Features: Bidirectional analog channel;Channel combination connection;Control interface integration;ESD protection
Operating Temperature: -40℃~+85℃
Ron: 5.5Ω
Number of Channels: 2
Voltage - Supply: 1.6V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.23 g

Overview

The MAX14661 is a serially controlled, dual-channel analog multiplexer allowing any of the 16 pins to be connected to either common pin simultaneously in any combination. The device features Beyond-the-Rails capability so that ±5.5V signals can be passed with any single supply between +1.6V and +5.5V. The serial control is selectable between I2C and SPI. Both modes provide individual control of each independent switch so that any combination of switches can be applied. I2C mode provides two address-select pins allowing for addressing up to four devices on a single bus. The SPI mode includes a DOUT pin that can be used to chain multiple devices together with a single select signal. The IC is available in a 28-pin (4mm×4mm) TQFN package and is specified over the -40°C to +85°C extended temperature range. The AB_ and COM_ pins provide ±10KV ESD protection (HBM).

Applications

System Diagnostics
Data Acquisition
I2C Signal Switching
Audio Input Selection

Key features

Beyond-the-Rails Technology Reduces Cost and Complexity
Switch ±5.5V Signals from a +1.6V Single Supply
Wide +1.6V to +5.5V Supply Range
Low 5.5Ω RON (typ) Across the Supply Range
Flexible Multiplexing Enables Design Reuse
16:2 Matrix Switch Multiplexer Connects Any Input Pin To Either Common Pin In Any Combination Each Switch is Independently Controlled via I2C or SPI Programmable Shadow Registers Allow Simultaneous Updating
Low Distortion Switching Improves System Performance
Total Harmonic Distortion + Noise 0.005% (typ)
RON Flatness 2.5mΩ (typ) Across Complete Signal Range
Integrated Protection for System Reliability
±10KV HBM ESD Protection on all AB_ and COM_ Pins, Even When Powered Down
