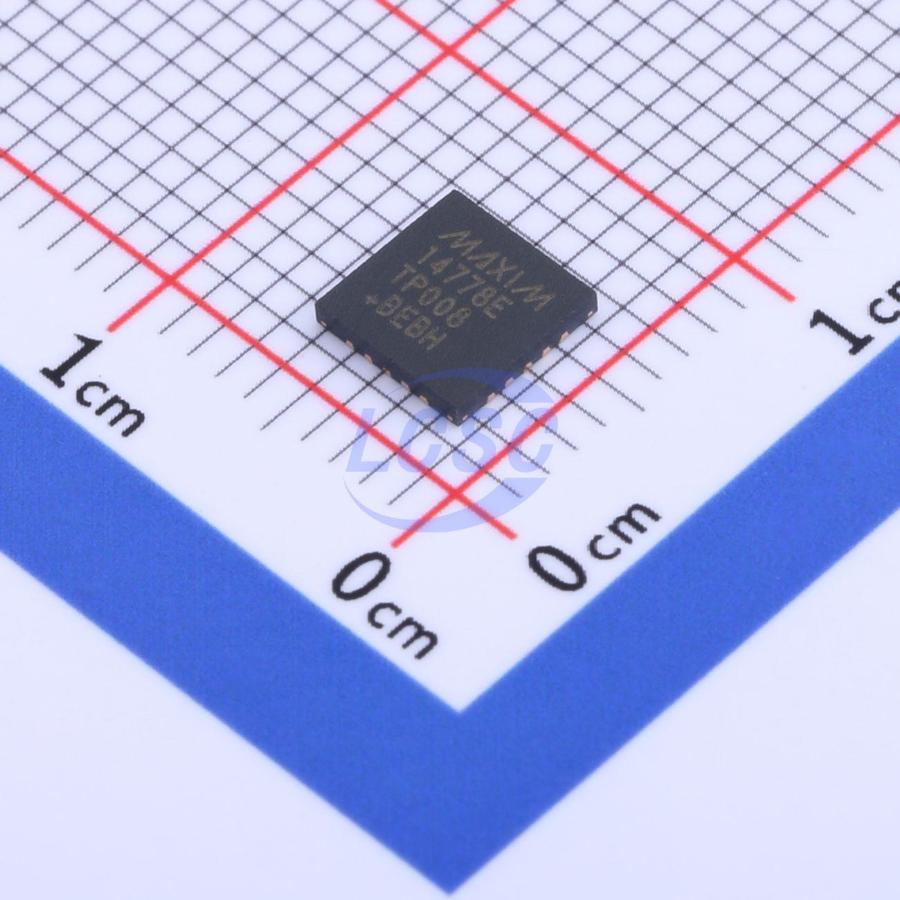

MAX14778ETP+T

The MAX14778 dual 4:1 analog multiplexer supports analog signals up to ±25V with a single 3.0 to 5.5V supply. Each multiplexer has separate control inputs to allow independent switching, making the device ideal for multiplexing different communications signals with the same connector pins. Extended ESD protection of ±6kV (Human Body Model) enable direct interfacing to cables and connectors. The MAX14778 features a low 1.5Ω (max) on- resistance and 3mΩ (typ) flatness to maximize signal integrity over the entire common- mode voltage range. Each multiplexer can carry up to 300mA of continuous current through the multiplexer in either direction. The MAX14778 supports switching of full- speed USB 1.1 signals (12Mbps) and RTS- 485 data rates of up to 20Mbps. The MAX14778 is available in a 20- pin (5mm x 5mm) TQFN package and is specified over the - 40℃ to +85℃ extended temperature range.

Applications

• RS- 485/RS- 232/USB 1.1 Multiplexing
• POS Peripherals
• Handheld Industrial Devices
• Communication Systems
• Audio/Data Multiplexing
• Connector Sharing
• Gaming Machines

Key features

• Flexible Multiplexer Switches a Wide Array of High- Voltage and Low- Voltage Signals Such as RS485, RS232, and USB 1.1
• Two Independent Multiplexers
• Break- Before- Make Operation
• 1.5Ω RON (max)
• 3mΩ RON Flatness (typ)
• 300mA Maximum Current Through Multiplexer
• 78pF Input Capacitance
• 75MHz Large- Signal Bandwidth
• Ideal for Space- Constrained and Mobile Applications
• 20- Pin TQFN (5mm x 5mm) Package
• Wide Signal Range Supported from Single- Supply Voltage Eliminates Negative Power Supply
• ±25V Signal Range
• Single 3.0V to 5.5V Supply
• ESD Protection Circuitry Eliminates Need for External Protection Circuitry
• Extended ESD Protection on A, and B, Pins
• ±6kV Human Body Model (HBM)
