MAXIM

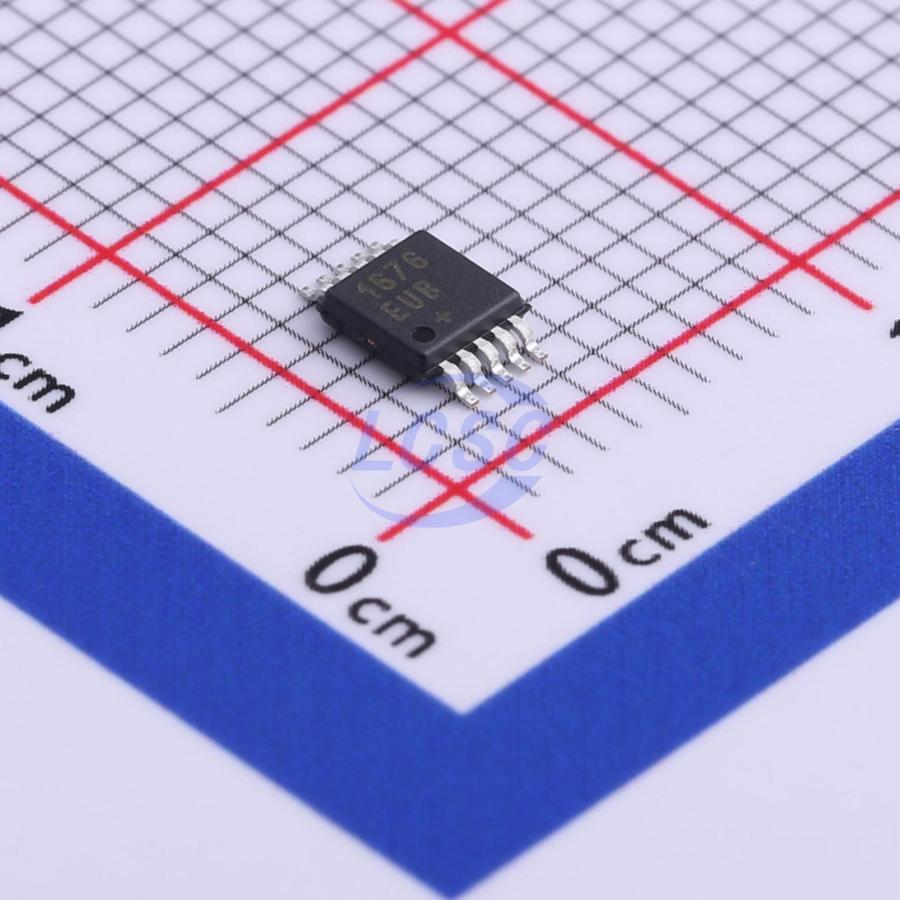

MAX1676EUB+T

500kHz Boost Adjustable 2V~5.5V MSOP-10 Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-10ROHS3 CompliantActive

High-Efficiency, Low-Supply-Current, Compact, Step-Up DC-DC Converters

Manufacturer: MAXIM
Manufacturer part #: MAX1676EUB+T
Store part #: C118486
Package / case: MSOP-10
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,367 in stock

#C118486

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹348.88	₹348.88
10+	₹303.71	₹3,037.10
30+	₹275.53	₹8,265.90
100+	₹218.25	₹21,825.00
500+	₹205.25	₹1,02,625.00
1,000+	₹199.46	₹1,99,460.00

Quantity (min 1)

1 × ₹348.88

₹348.88

excl. GST

₹411.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX1676EUB+T

₹348.88 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 500kHz
Function: Boost
Number of Outputs: 1
Features: Adjustable current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Boost
Operating Voltage: 700mV~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 2V~5.5V
Quiescent Current: 16uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.141 g

Overview

MAX1674/MAX1675/MAX1676 compact, high-efficiency, step-up DC-DC converters fit in small µMAX packages. They feature a built-in synchronous rectifier, which improves efficiency and reduces size and cost by eliminating the need for an external Schottky diode. Quiescent supply current is only 16µA. The input voltage ranges from 0.7V to VOUT, where VOUT can be set from 2V to 5.5V. Start-up is guaranteed from 1.1V inputs. The MAX1674/MAX1675/ MAX1676 have a preset, pin-selectable output for 5V or 3.3V. The outputs can also be adjusted to other voltages using two external resistors. All three devices have a 0.3Ω N-channel MOSFET power switch. The MAX1674 has a 1A current limit. The MAX1675 has a 0.5A current limit, which permits the use of a smaller inductor. The MAX1676 comes in a 10-pin µMAX package and features an adjustable current limit and circuitry to reduce inductor ringing.

Applications

Pagers
Wireless Phones
Medical Devices
Hand-Held Computers
PDAs
RF Tags
1 to 3-Cell Hand-Held Devices

Key features

Compact, high-efficiency, step-up DC-DC converters fit in small µMAX packages
Built-in synchronous rectifier, improves efficiency and reduces size and cost by eliminating the need for an external Schottky diode
Quiescent supply current is only 16µA
Input voltage ranges from 0.7V to VOUT, where VOUT can be set from 2V to 5.5V
Start-up is guaranteed from 1.1V inputs
Preset, pin-selectable output for 5V or 3.3V
Outputs can be adjusted to other voltages using two external resistors
0.3Ω N-channel MOSFET power switch
MAX1674 has a 1A current limit
MAX1675 has a 0.5A current limit, permits the use of a smaller inductor
MAX1676 comes in a 10-pin µMAX package and features an adjustable current limit and circuitry to reduce inductor ringing
