MAXIMDatasheet (PDF)

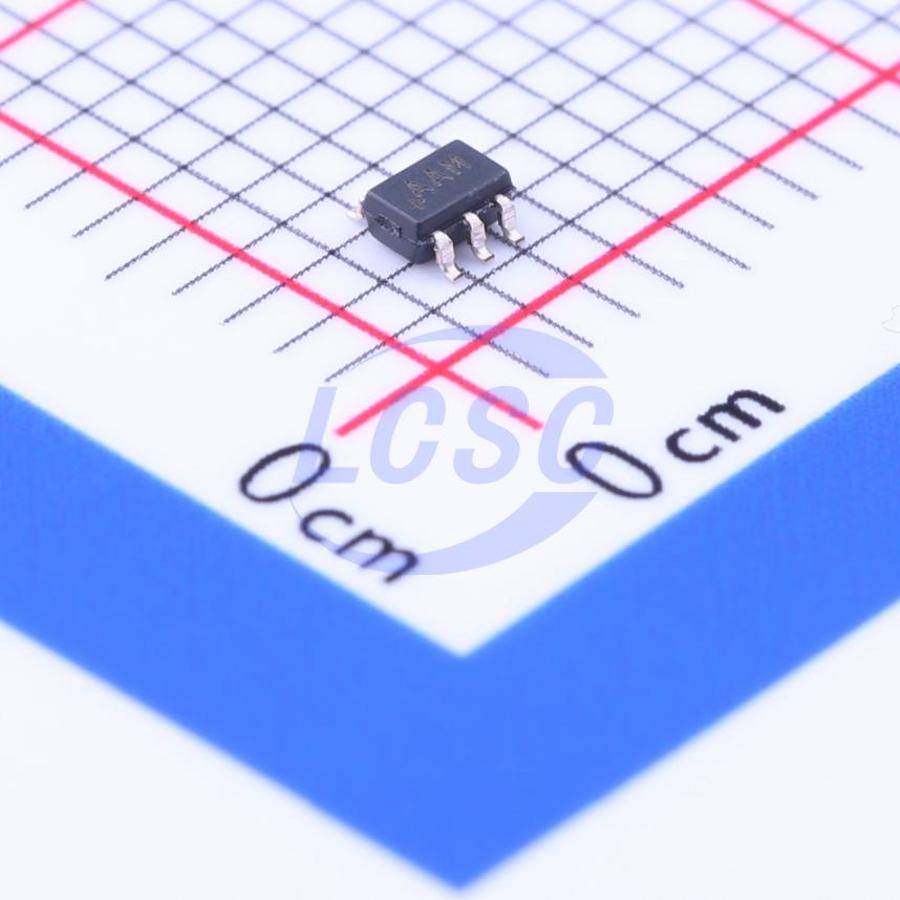

MAX1853EXT+T
Inverted 200kHz 30mA SOT-363-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-363-6ROHS3 CompliantActive
Inverting Charge Pumps with Shutdown
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1853EXT+T
- Store part #
- C143384
- Package / case
- SOT-363-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,491 in stock
#C143384
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹247.71 | ₹247.71 |
| 10+ | ₹213.16 | ₹2,131.60 |
| 30+ | ₹191.42 | ₹5,742.60 |
| 100+ | ₹169.26 | ₹16,926.00 |
| 500+ | ₹159.28 | ₹79,640.00 |
| 1,000+ | ₹154.92 | ₹1,54,920.00 |
1 × ₹247.71
₹247.71
excl. GST
₹292.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1853EXT+T
₹247.71 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 200kHz
- Features
- Low-power standby;Cascade support
- Operating Voltage
- 2.5V~5.5V
- Output Current
- 30mA
- Energy Efficiency
- 99.9%
- Quiescent Current
- 320uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.017 g
Overview
The MAX1852/MAX1853 charge pumps invert the voltage applied to their input. For highest performance use low equivalent series resistance (ESR) capacitors (e.g., ceramic).
Applications
- Negative Supply from +5V or +3.3V Logic Supplies
- Small LCD Panels
- GaAsFET Bias Supplies
- Handy-Terminals, PDAs
- Battery-Operated Equipment
Key features
- 30mA Output Current
- Low 15Ω Output Resistance
- 68μA Supply Current (MAX1852)
- Requires Only Two 0.68μF Capacitors (MAX1853)
- +2.5V to +5.5V Input Voltage Range
- 0.1μA Logic-Controlled Shutdown
- Two Switching Frequencies 50kHz (MAX1852) 200kHz (MAX1853)
- Slew-Rate Limited to Reduce EMI
- Ultra-Small 6-Pin SC70 Package
