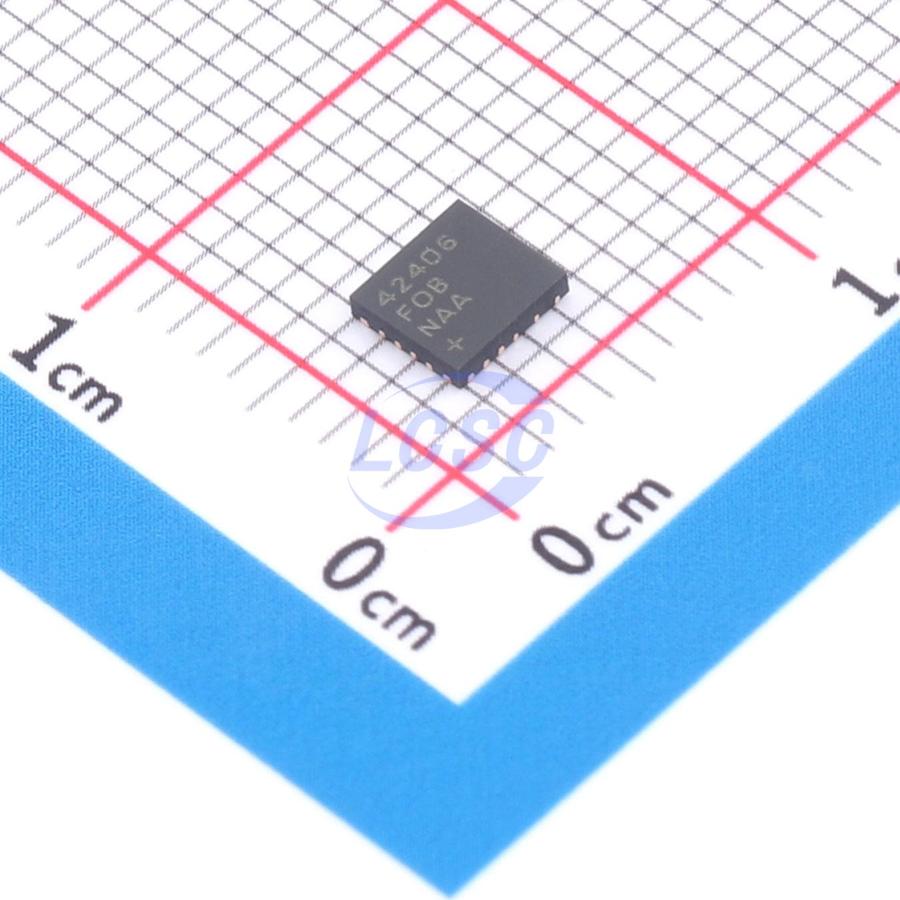

MAX42406AFOB+

The MAX42405/MAX42406 are highly integrated synchronous buck converters with internal high-side and low-side switches. These devices are designed to deliver up to 6A of output current over a wide input voltage range of 4.5V to 36V. Output voltage quality can be monitored via the PGOOD signal. The devices operate at very high duty cycles for low-dropout operation, making them well-suited for industrial applications. The MAX42405/MAX42406 offer programmable output voltage. Internal fixed switching frequencies of 400kHz and 1.5MHz help minimize external component size and reduce output ripple. Under light-load conditions, the devices automatically enter pulse-skipping mode, with a quiescent current as low as 20μA at no load. The product family (including the MAX42408/MAX42410) provides pin-compatible options supporting 5A to 10A output in single-phase configuration and up to 20A output in dual-phase configuration. These devices are also optimized for dual-phase operation with exceptionally high current-sharing accuracy. The MAX42405/MAX42406 are available in a compact 3.5mm × 3.75mm, 17-pin FC2QFN package requiring minimal external components.

Applications

• Industrial automation
• Point of load
• Distributed DC power systems

Key features

• Operating input voltage range: 4.5V to 36V
• Quiescent current of 20μA in pulse-skipping mode
• Synchronous DC-DC converter with integrated FETs
• 400kHz and 1.5MHz fixed-frequency options
• Internal soft-start
• Programmable output voltage
• 3.5mm × 3.75mm, 17-pin FC2QFN package
• Symmetrical package for superior EMI performance
• Dual-phase operation capability
• Dynamic current sharing via shared VEA pin
• Low IQ operation in dual-phase configuration
• Accurate output voltage monitoring via PGOOD
• Forced PWM and pulse-skipping mode operation
• Low dropout operation
• Over-temperature and short-circuit protection
• Operating temperature range: -40℃ to +125℃
