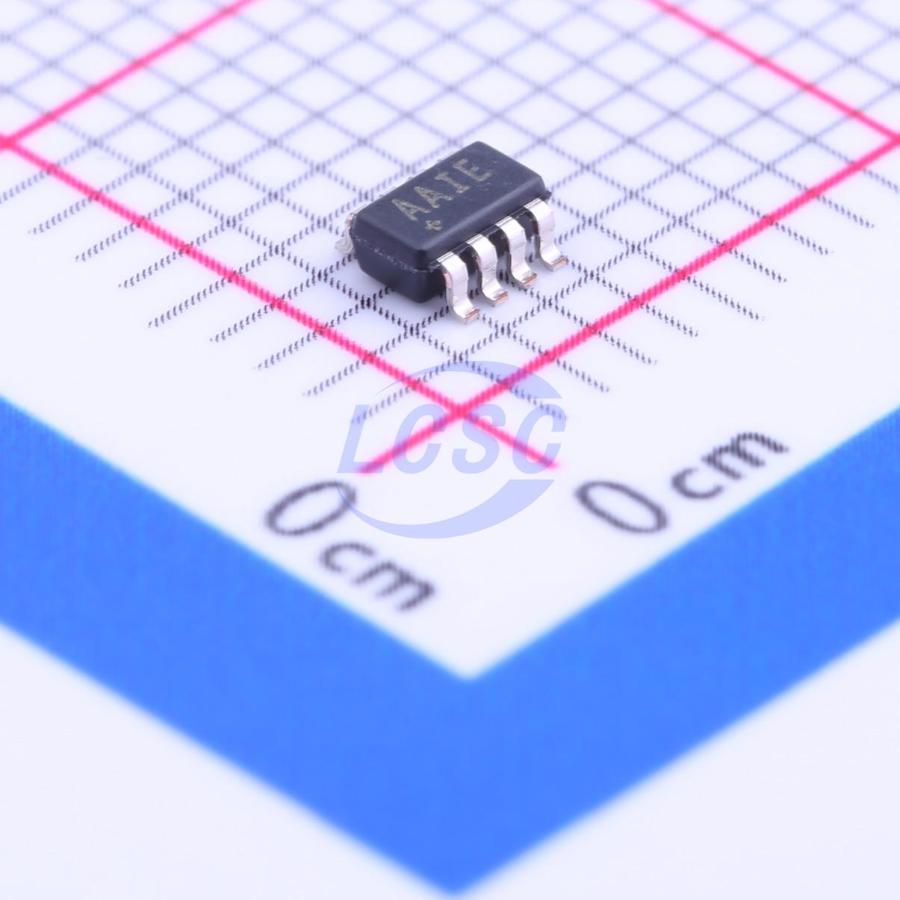

MAX4649EKA+T

The MAX4649 is a high-voltage, single-pole/doublethrow (SPDT) analog switch that operates from dual ±4.5V to ±20V supplies or from a single +9V to +36V supply. The MAX4649 has one normally closed (NC) switch and one normally open (NO) switch. CMOS switch construction allows bidirectional processing of rail-to-rail analog signals. The MAX4649 has break-before-make switching. The transition time for switching from one input to the other is typically 90ns. The off-leakage is typically less than 10pA, and on-leakage is typically less than 20pA.

Applications

• PBX, PABX Systems
• Communication Systems
• DSL
• Test Equipment
• Audio Systems
• Redundant Systems
• Relay Replacement
• PC Multimedia Boards

Key features

• Low On-Resistance 45Ω max ±15V Supplies
• 5Ω max RON Match Between Channels
• Guaranteed RON Flatness Over Specified Signal Range (7Ω max)
• Logic Supply Not Required
• Rail-to-Rail Signal Handling
• +9V to +36V Single Supply Operation
• ±4.5V to ±20V Dual Supply Operation
• Low Crosstalk: -92dB at 1MHz
• High Off-Isolation: -92dB at 1MHz
• TTL/CMOS-Compatible Control Inputs
• A switch transition time of 130ns max at +25°C
• A guaranteed break-before-make switching time of 5ns
• Off-leakage current is only 2nA max at +25°C
• Available in a tiny 8-pin SOT23 package
