MAXIMDatasheet (PDF)

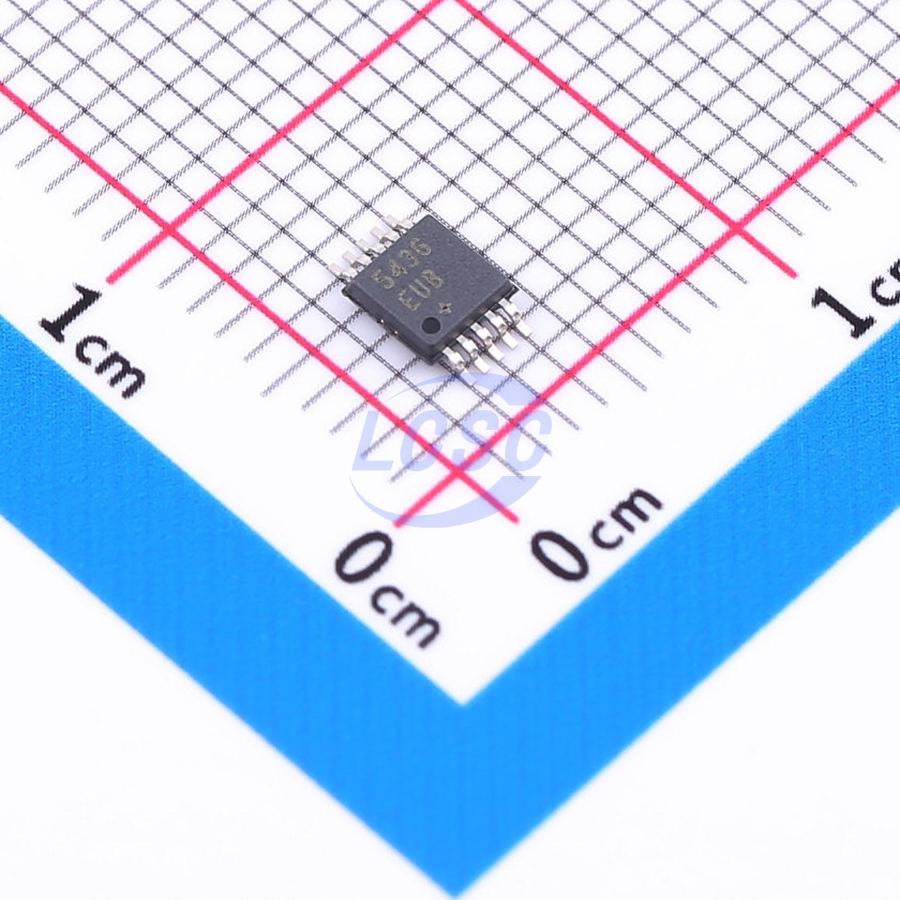

MAX5436EUB+T
SPI 50kΩ uMAX-10 Digital Potentiometers RoHS
uMAX-10ROHS CompliantActive
±15V, 128-Tap, Low-Drift Digital Potentiometers
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX5436EUB+T
- Store part #
- C2666721
- Package / case
- uMAX-10
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,064 in stock
#C2666721
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹725.41 | ₹725.41 |
| 10+ | ₹623.30 | ₹6,233.00 |
| 30+ | ₹562.47 | ₹16,874.10 |
| 100+ | ₹500.99 | ₹50,099.00 |
| 500+ | ₹472.75 | ₹2,36,375.00 |
| 1,000+ | ₹459.93 | ₹4,59,930.00 |
1 × ₹725.41
₹725.41
excl. GST
₹855.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX5436EUB+T
₹725.41 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.25V
- Resistance value change
- Linear
- Number of Taps
- 128
- Interface
- SPI
- Temperature Coefficient(Typ)
- 35ppm/℃
- Features
- Power-on reset
- Operating Temperature
- -40℃~+85℃
- Resistance Value (Ohms)
- 50kΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
Applications
- LCD Screen Contrast Adjustment
- Data-Acquisition Systems
- Mechanical Potentiometer Replacement
- Low-Drift Programmable Gain Amplifier
- Audio Volume Control
Key features
- 128-tap high-voltage ±5V to ±15V digital potentiometers in packages that are half the size of comparable devices in 8-pin SO
- Perform the same function as mechanical potentiometers, but replace the mechanics with a simple digital interface
- Digital logic is powered by a separate single +2.7V to +5.25V supply voltage (VCC)
- Resistor string uses its own analog supplies (VDD and VSS) that require VDD - VSS to be greater than 9V and less than 31.5V
- Allows for greater flexibility in voltage ranges, including dual voltages of ±5V to ±15V, and single-supply voltages such as +10V, +15V, +30V, -30V, etc., as long as the ranges of VDD - VSS and VCC - VSS are met
- MAX5437/MAX5439 include an on-chip, high-voltage, uncommitted amplifier, providing additional reductions in board space and cost
- Low 35ppm/°C end-to-end and 5ppm/°C ratiometric resistor temperature coefficients
- 3-wire SPI/QSPI/MICROWIRE-compatible serial interface
- Power-on reset to midscale
- MAX5436/MAX5438 are available in 10-pin μMAX packages
- MAX5437/MAX5439 are available in 14-pin TSSOP package
- Guaranteed over the extended temperature range of -40°C to +85°C
- Glitchless switching between the resistor taps
- 50kΩ/100kΩ end-to-end resistances
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX5436EUB+#C1520907MAXIM · uMAX-10 | MAXIM | uMAX-10 | 5 | ₹1,475.85 · 5 in stock | View |
