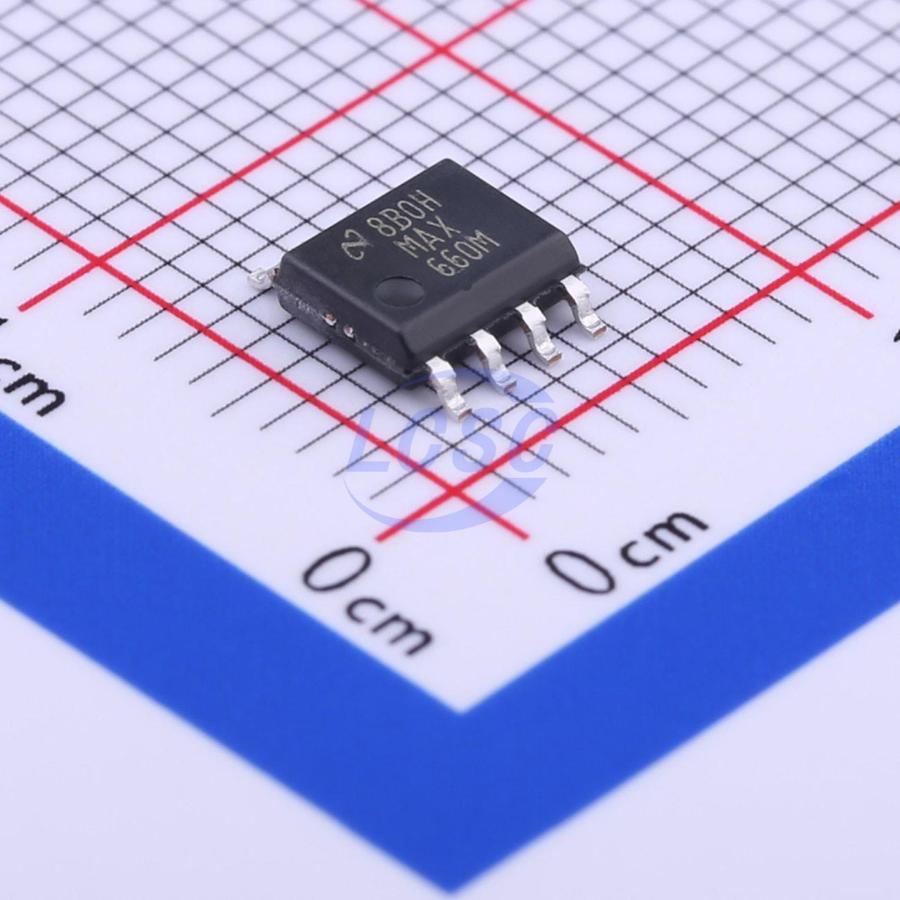

MAX660MX/NOPB

100mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS3 CompliantActive

Switched Capacitor Voltage Converter

Manufacturer: TI
Manufacturer part #: MAX660MX/NOPB
Store part #: C7262
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,686 in stock

#C7262

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹175.40	₹175.40
10+	₹155.03	₹1,550.30
30+	₹135.95	₹4,078.50
100+	₹121.64	₹12,164.00
500+	₹115.79	₹57,895.00
1,000+	₹112.97	₹1,12,970.00

Quantity (min 1)

1 × ₹175.40

₹175.40

excl. GST

₹206.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX660MX/NOPB

₹175.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Inverted;boost converter
Features: Charge pump / inverting topology switching;Adaptive switching frequency;Cascade support
Operating Voltage: 1.5V~5.5V
Output Current: 100mA
Energy Efficiency: 88%
Quiescent Current: 500uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.559 g

Overview

The MAX660 CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.5V to 5.5V to the corresponding negative voltage. The MAX660 uses two low cost capacitors to provide 100 mA of output current without the cost, size, and EMI related to inductor based converters. With an operating current of only 120 μA and operating efficiency greater than 90% at most loads, the MAX660 provides ideal performance for battery powered systems. The MAX660 may also be used as a positive voltage doubler.
