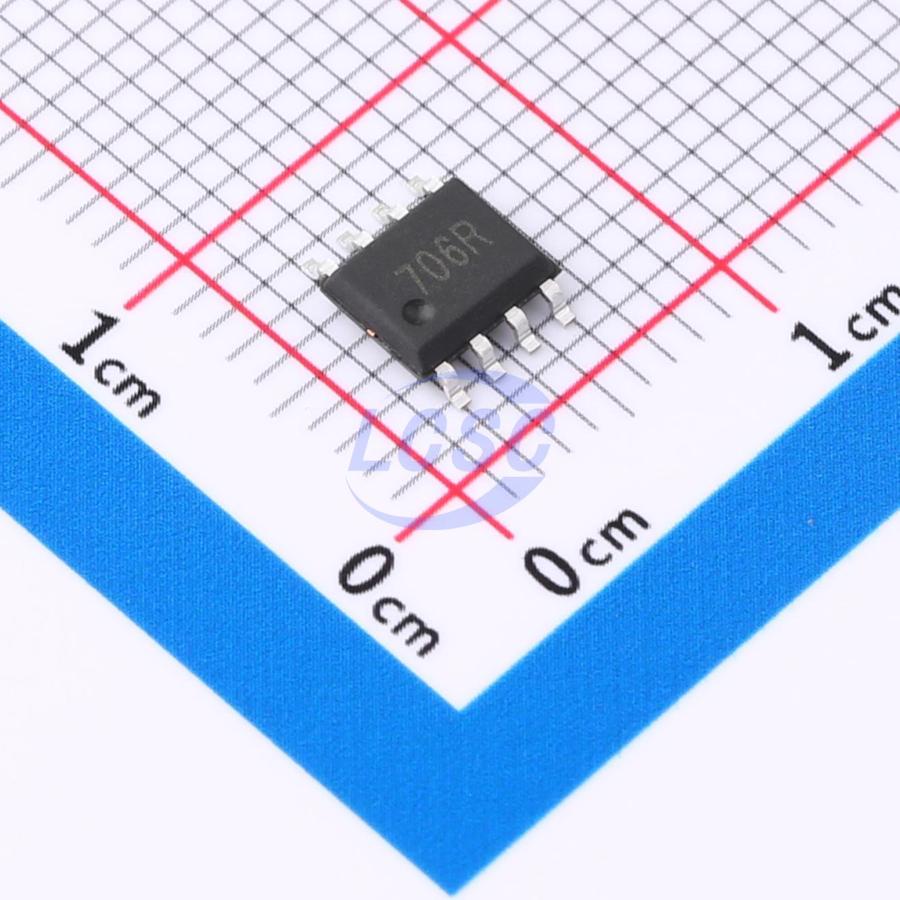

MAX706RESA-TP
Supervisor 1 Channel SOP-8
Supply Voltage Supervisor w/Watchdog Input and Manual Reset
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX706RESA-TP
- Store part #
- C48886787
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,279 in stock
#C48886787
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.85 | ₹56.85 |
| 10+ | ₹45.01 | ₹450.10 |
| 30+ | ₹39.84 | ₹1,195.20 |
| 100+ | ₹33.59 | ₹3,359.00 |
| 500+ | ₹30.59 | ₹15,295.00 |
| 1,000+ | ₹29.08 | ₹29,080.00 |
1 × ₹56.85
₹56.85
excl. GST
₹67.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX706RESA-TP
₹56.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 80uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.158 g
Overview
This series consists of cost-effective system power supply monitoring circuits designed to monitor power supplies in digital systems. They provide power supply monitoring circuits that generate reset outputs under power-up, power-down, and undervoltage conditions. The reset output remains active with VCC as low as 1V. An independent watchdog monitoring circuit is also provided. If the watchdog input is not triggered within 1.6 seconds, the circuit will be activated. In addition, a 1.25V threshold detector is included for power failure warning, low battery detection, or monitoring an additional power supply. A debounced, active-low manual reset input is also included. The device provides an active-high reset output as an alternative to the watchdog timer. The device provides a RESET output instead of a RESET output. All versions are available in a compact SOP-8 package.
Applications
- Computers
- Embedded systems
- Industrial equipment
- Smart instruments
- Programmable controllers
- Wireless communication systems
- Applications using DSP, microcontrollers, or microprocessors
Key features
- Wide operating voltage range: 1V to 5.5V
- Guaranteed correct logic levels at Vcc=1.0V
- 200ms reset pulse width
- Independent watchdog timer with 1.6s timeout
- Power supply transient immunity
- 80uA (typical) supply current
