MAXIM

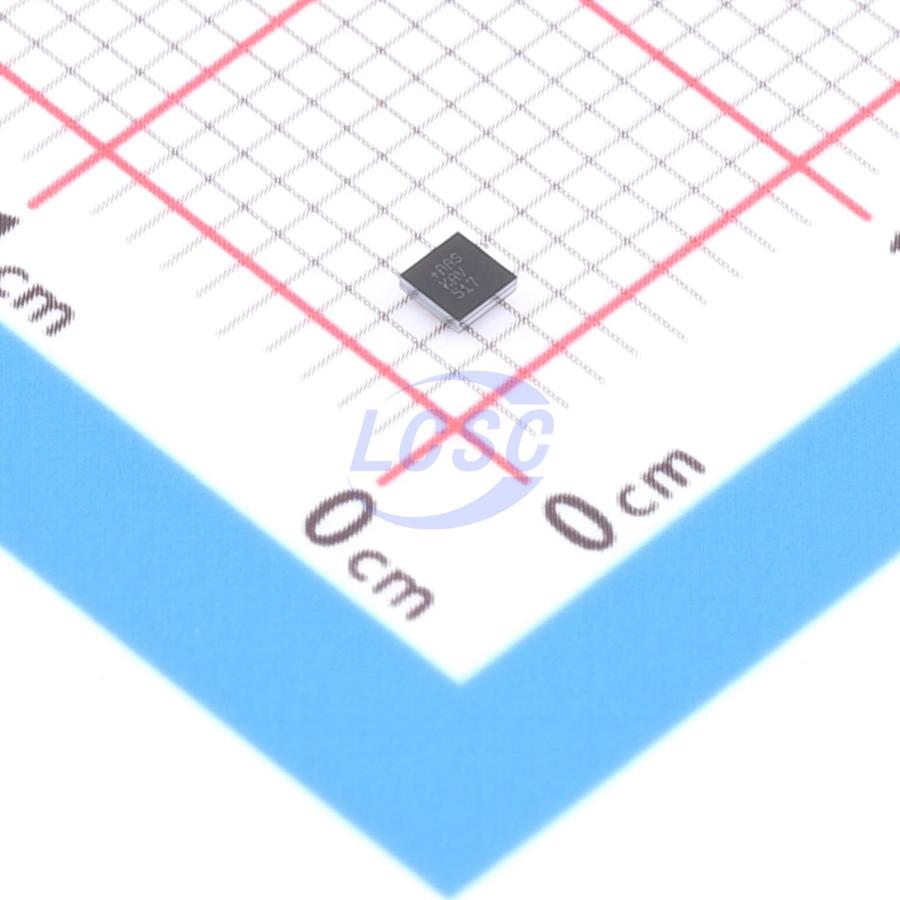

MAX77504AAWE+T

1.5MHz Step-down type Adjustable 3A 600mV~6V WLP-16(1.69x1.69) Voltage Regulators - DC DC Switching Regulators RoHS

WLP-16(1.69x1.69)ROHS3 CompliantActive

Manufacturer: MAXIM
Manufacturer part #: MAX77504AAWE+T
Store part #: C3188424
Package / case: WLP-16(1.69x1.69)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C3188424

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹223.44	₹223.44
10+	₹218.04	₹2,180.40
30+	₹214.38	₹6,431.40
100+	₹210.71	₹21,071.00

Quantity (min 1)

1 × ₹223.44

₹223.44

excl. GST

₹263.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX77504AAWE+T

₹223.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Frequency synchronization;Light load efficient mode;Built-in LDO regulator;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~14V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 600mV~6V
Quiescent Current: 12uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

The MAX77504 is a synchronous 3A step-down DC-DC converter optimized for portable 2-cell and 3-cell battery-operated applications. The converter operates on an input supply between 2.6V and 14V. Output voltage is adjustable between 0.6V and 6V with external feedback resistors. The device features a low-IQ SKIP mode that allows excellent efficiency at light loads. The MAX77504 can be synchronized by driving the FPWM pin with an external clock. Dedicated enable, power-OK, and FPWM pins allow simple hardware control. The SEL input easily configures switching frequency, gain, and output active discharge option. Built-in undervoltage lockout (UVLO), output active discharge, cycle-by-cycle inductor current limit, thermal shutdown, and short-circuit protection ensure safe operation under abnormal operating conditions. The MAX77504 is offered in a small 1.7mm x 1.7mm, 16-bump, 0.4mm pitch wafer-level package (WLP) or a 2.5mm x 2.5mm, 12-lead, 0.5mm pitch flip-chip QFN (FC2QFN).

Applications

1- to 3-Cell Li+/Li-ion Battery-Powered Devices
Professional Radio, Handheld Computers
Mirrorless Cameras, DSLR, and Notebook Computers
Portable Scanners, POS Terminals, Printers
Space-Constrained Portable Electronics

Key features

3A Single-Channel Buck Regulator
2.6V to 14V Input Voltage
0.6V to 6V Output Voltage Range
0.5MHz to 1.5MHz Fixed-Frequency Switching Options
High Efficiency, Low IQ Extends Battery Life
94% Peak Efficiency at 7.4VIN, 3.3VOUT (2520 Inductor)
10μA ISUP (12VIN, 1.8VOUT)
OUT Powers IL Automatically (VIN > 1.7V) for Low IQ
Enable Pin (EN) for Direct Hardware Control
External Clock Synchronization Is Available Through the FPWM/SYNC Pin
Power-OK Output (POK) Monitors VOUT Quality
Protection Features
Cycle-by-Cycle Inductor Current Limit
Short-Circuit Hiccup Mode, UVLO, and Thermal Shutdown Protection
Soft-Start
FC2QFN or WLP Package Option
2.5mm x 2.5mm (0.6mm max. height) 12-Lead FC2QFN, 0.5mm Pitch
1.7mm x 1.7mm (0.7mm max. height) 16-Bump WLP, 0.4mm Pitch, 4 x 4 Array
All WLP Package Bumps (Except POK) Routeable on a Non-HDI PCB

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	MAX77504BAWE+T#C7456486MAXIM · WLP-16(1.7x1.7)	MAXIM	WLP-16(1.7x1.7)	30	₹217.83 · 30 in stock	View
	MAX77504AAWE+#C1138275MAXIM · -	MAXIM	-	On request	₹163.11 · 0 in stock	View
