MAXIM

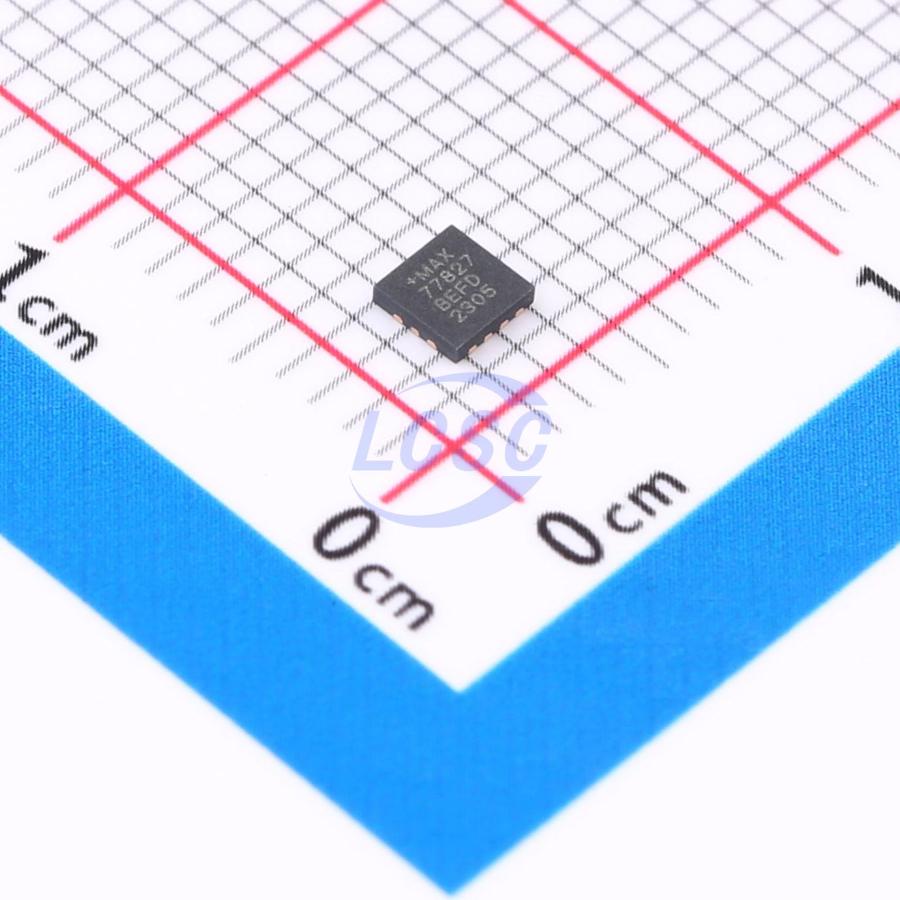

MAX77827BEFD+T

FC2QFN-14(2.5x2.5) Voltage Regulators - DC DC Switching Regulators RoHS

FC2QFN-14(2.5x2.5)ROHS3 CompliantActive

5.5V Input, 1.8A/3.1A Switch Buck-Boost Converter with 6uA IQ

Manufacturer: MAXIM
Manufacturer part #: MAX77827BEFD+T
Store part #: C22689705
Package / case: FC2QFN-14(2.5x2.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C22689705

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹465.43	₹465.43
10+	₹455.31	₹4,553.10
30+	₹448.64	₹13,459.20
100+	₹441.97	₹44,197.00

Quantity (min 1)

1 × ₹465.43

₹465.43

excl. GST

₹549.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX77827BEFD+T

₹465.43 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.023 g

Overview

The MAX77827 is a high-efficiency buck-boost regulator targeted for one-cell Li-ion powered applications with the lowest typical quiescent current in the industry of 6μA. It supports input voltages of 1.8V to 5.5V and an output voltage range of 2.3V to 5.3V. The IC provides two different switching current levels (1.8A and 3.1A) to optimize external component sizing based on given load current requirements. With the 1.8A switching current-limit option, the IC can support up to 1.0A load current in buck mode and 900mA in boost mode (VIN = 3.0V, VOUT = 3.3V). The peak efficiency of 96% makes the IC one of the best solutions as a DC/DC converter to supply a rail for battery-powered portable applications. The IC features an adjustable output voltage, which can be programmed from 2.3V to 5.3V through a single resistor. Two GPIO pins are available to support force PWM enable function and power-OK (POK) indicator. A unique control algorithm allows high-efficiency, outstanding line/load transient response, and seamless transition between buck and boost modes. These options provide design flexibility that allow the IC to cover a wide range of applications and use cases while minimizing board space. The MAX77827 is available in a 1.61mm x 2.01mm, 12-bump wafer-level package (WLP), and a 2.5mm x 2.5mm, 14-lead FC2QFN package.

Applications

1-Cell Li+ Battery Powered Equipment
Smartphones/Portable/Wearables
Internet of Things (IoT) Devices
LPWAN (LTE/NB-IoT, LTE/Cat-M1)

Key features

1.8V to 5.5V Input Voltage Range
2.3V to 5.3V Single Resistor Adjustable Output Voltage
1.6A Maximum Output Current (3.1A ILIM Option, Buck Mode)
900mA Maximum Output Current (1.8A ILIM Option, Boost Mode 3.0V, 3.3VOUT)
96% Peak Efficiency (3.3VIN, 3.3VOUT)
SKIP Mode for Higher Light-Load Efficiency
6μA Ultra-Low Typical Quiescent Current (At TJ = +25°C)
2.5MHz Nominal Switching Frequency
Enable Pin GPIO Pins for System Design Convenience
FPWM (Forced PWM) Mode Selection Pin
POK Indicator Pin
UVLO, Soft-Start, Active-Output Discharge, Overcurrent, and Thermal Shutdown Protections
1.61mm x 2.01mm, 12-Bump WLP
2.5mm x 2.5mm, 14-Lead FC2QFN
