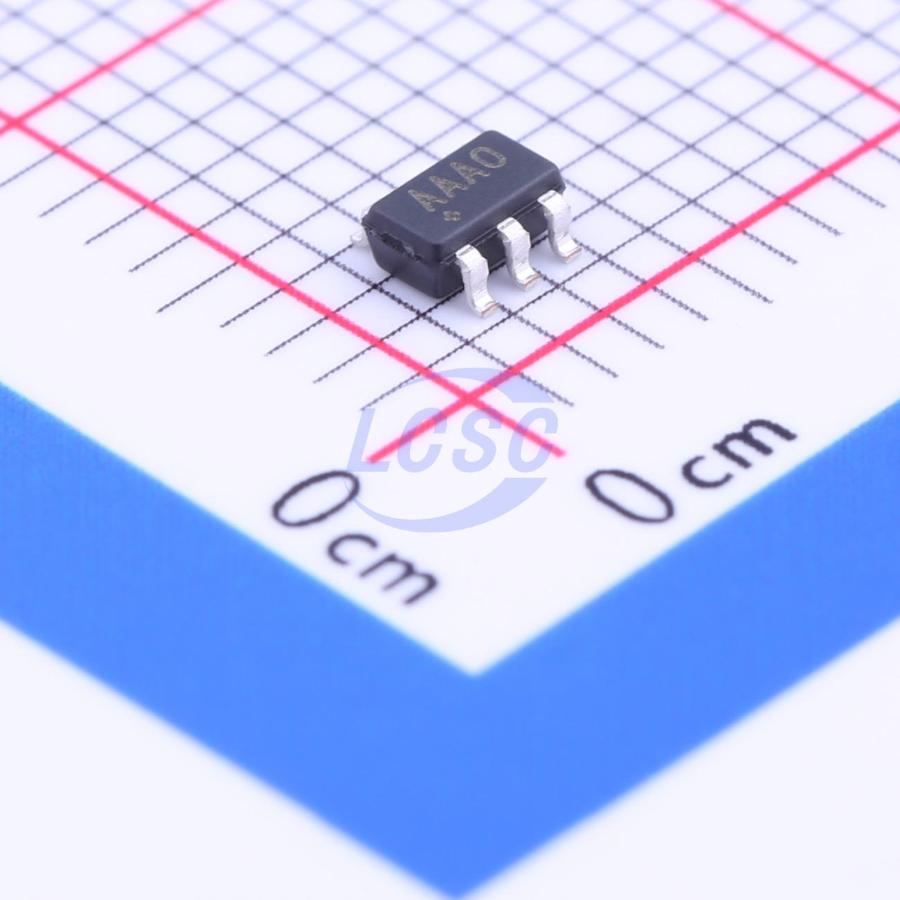

MAX998EUT+T
1 650uA 2mV Rail-to-rail output SOT-23-6 Comparators RoHS
Single/Dual/Quad, SOT23, Single-Supply, High-Speed, Low-Power Comparators
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX998EUT+T
- Store part #
- C60826
- Package / case
- SOT-23-6
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C60826
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.87 | ₹164.87 |
| 10+ | ₹136.60 | ₹1,366.00 |
| 30+ | ₹121.15 | ₹3,634.50 |
| 100+ | ₹103.75 | ₹10,375.00 |
| 500+ | ₹96.14 | ₹48,070.00 |
| 1,000+ | ₹92.44 | ₹92,440.00 |
1 × ₹164.87
₹164.87
excl. GST
₹194.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX998EUT+T
₹164.87 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+85℃
- Features
- Enable/shutdown function;Built-in hysteresis;Fail-safe function
- Ib - Input Bias Current
- 75nA
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Propagation Delay(tpd)
- 28ns
- Input Hysteresis Voltage (Vhys)
- 5mV
- Quiescent Current(Iq)
- 650uA
- Vos - Input Offset Voltage
- 2mV
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX976/MAX978/MAX998 dual/quad/single, highspeed, low-power comparators are optimized for +3V/+5V single-supply applications. They achieve a 20ns propagation delay while consuming only 225μA supply current per comparator. The MAX998 features a low-power shutdown mode that places the output in a high-impedance state and reduces supply current to 1nA. The MAX976/MAX978/MAX998 inputs have a commonmode voltage range that extends 200mV below ground. Their outputs are capable of rail-to-rail operation without external pullup circuitry, making these devices ideal for interface with CMOS/TTL logic. All inputs and outputs can tolerate a continuous short-circuit fault condition to either rail. The comparators’ internal hysteresis ensures clean output switching, even with slow-moving input signals. For space-critical applications, the single MAX998 is available in a 6-pin SOT23 package, the dual MAX976 is available in an 8-pin μMAX package, and the quad MAX978 is available in a 16-pin QSOP package.
Applications
- Battery-Powered Systems
- Threshold Detectors/Discriminators
- 3V Systems
- IR Receivers
- Digital Line Receivers
Key features
- Single-Supply Operation Down to 2.7V
- 20ns Propagation Delay
- 225μA Supply Current
- 1nA Shutdown Supply Current
- Rail-to-Rail Outputs
- Ground-Sensing Inputs
- Internal Hysteresis Ensures Clean Switching
- Available in Space-Saving Packages SOT23 (MAX998) μMAX (MAX976) QSOP (MAX978)
