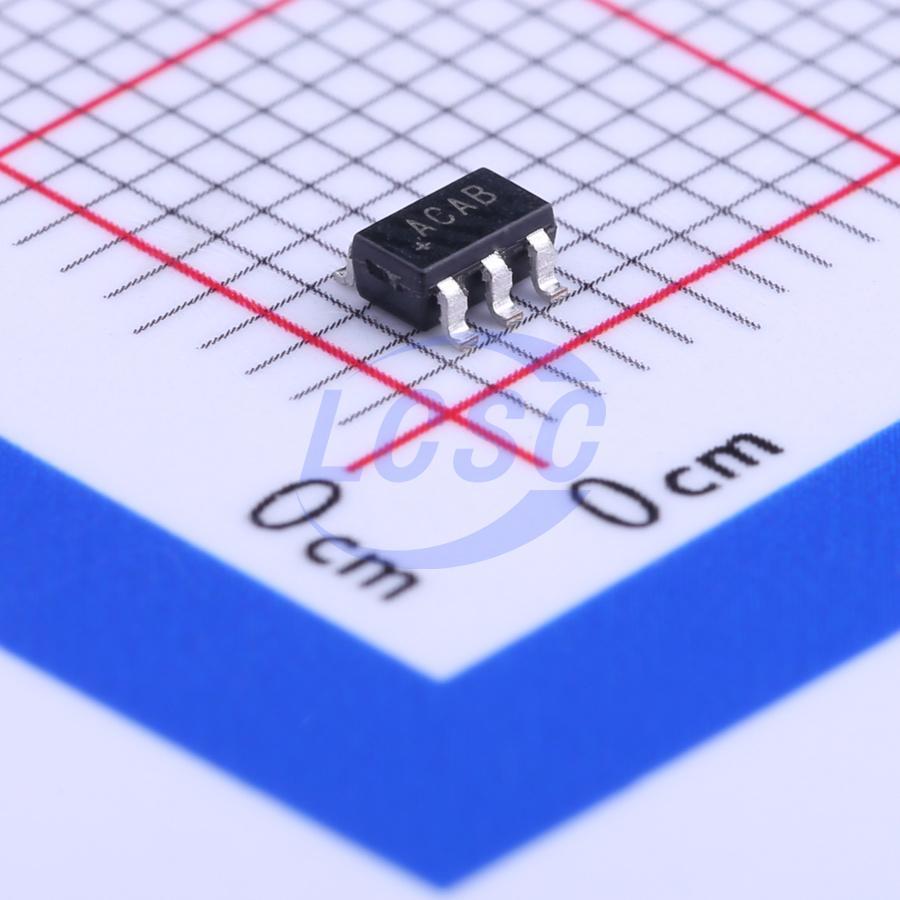

MAX999EUK+T
1 7mA 1.5mV Rail-to-rail input SOT-23-5 Comparators RoHS
Single/Dual/Quad, Ultra-High-Speed, Beyond-the-Rails Comparators
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX999EUK+T
- Store part #
- C124667
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,028 in stock
#C124667
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹249.56 | ₹249.56 |
| 10+ | ₹216.39 | ₹2,163.90 |
| 30+ | ₹195.58 | ₹5,867.40 |
| 100+ | ₹174.11 | ₹17,411.00 |
| 500+ | ₹156.76 | ₹78,380.00 |
| 1,000+ | ₹152.65 | ₹1,52,650.00 |
1 × ₹249.56
₹249.56
excl. GST
₹294.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX999EUK+T
₹249.56 for 1 + GST
Specifications
- Features
- Built-in hysteresis
- Ib - Input Bias Current
- 15uA
- Number of Channels
- 1
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Propagation Delay(tpd)
- 7ns
- Input Hysteresis Voltage (Vhys)
- 3.5mV
- Quiescent Current(Iq)
- 7mA
- Vos - Input Offset Voltage
- 1.5mV
- Output Mode
- CMOS;TTL
- Rail to Rail
- Rail-to-rail input
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX961–MAX964/MAX997/MAX999 are low-power, ultra-high-speed comparators with internal hysteresis. These devices are optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-theRails, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator. The MAX961/MAX963/MAX964 and MAX997 have a shutdown mode in which they consume only 270μA supply current per comparator. The MAX961/MAX963 provide complementary outputs and a latch-enable feature. Latch enable allows the user to hold a valid comparator output. The MAX999 is available in a tiny 5-pin SOT23 package. The single MAX961/MAX997 and dual MAX962 are available in space-saving 8-pin μMAX packages.
Applications
- Single 3V/5V Systems
- Portable/Battery-Powered Systems
- Threshold Detectors/Discriminators
- GPS Receivers
- Line Receivers
- Zero-Crossing Detectors
- High-Speed Sampling Circuits
Key features
- Ultra-Fast, 4.5ns Propagation Delay
- Ideal for +3V and +5V Single-Supply Applications
- Beyond-the-Rails Input Voltage Range
- Low, 5mA Supply Current (MAX997/MAX999)
- 3.5mV Internal Hysteresis for Clean Switching
- Output Latch (MAX961/MAX963)
- TTL/CMOS-Compatible Outputs
- Shutdown Mode (MAX961/MAX963/MAX964/MAX997)
- Available in Space-Saving Packages: 5-Pin SOT23 (MAX999), 8-Pin μMAX (MAX961/MAX962/MAX997), 16-Pin QSOP (MAX964)
