TDSEMIC

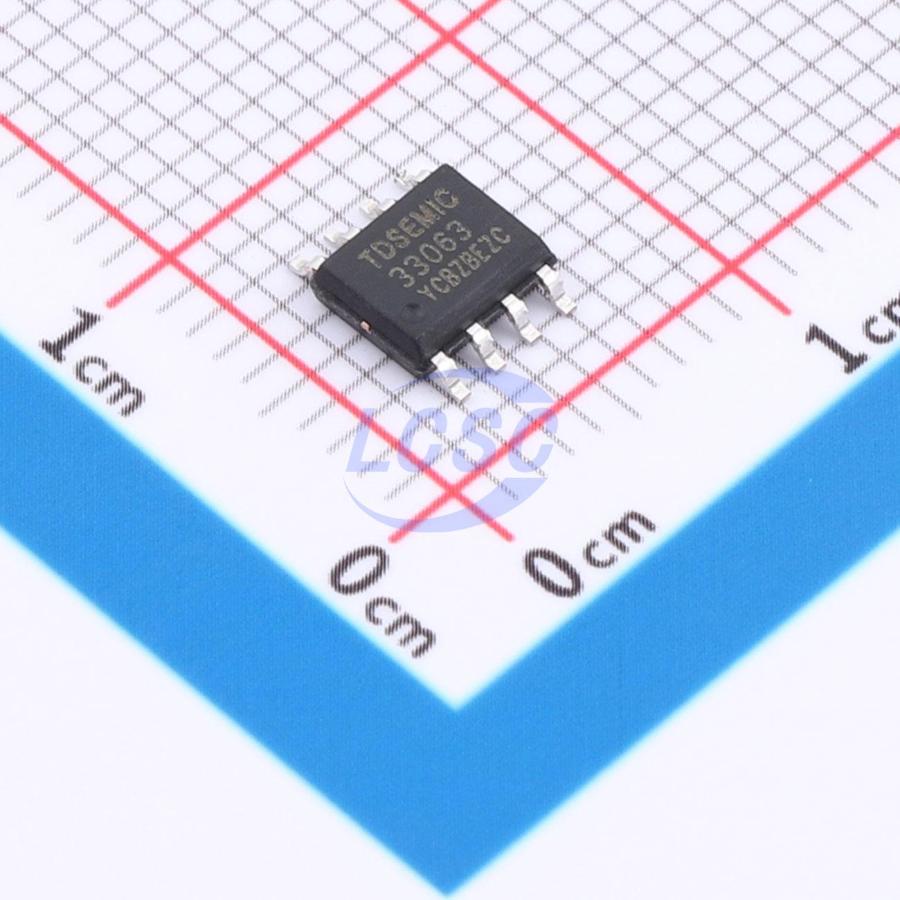

MC33063ADR(1.5A)-TD

Boost Buck Switching Regulator IC Adjustable 1 Output 1.5A SOP-8

SOP-8ROHS CompliantActive

DC/DC converter control circuit

Manufacturer: TDSEMIC
Manufacturer part #: MC33063ADR(1.5A)-TD
Store part #: C46614319
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,545 in stock

#C46614319

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
5+	₹30.01	₹150.05
50+	₹23.43	₹1,171.50
150+	₹20.61	₹3,091.50
500+	₹17.09	₹8,545.00
2,500+	₹15.53	₹38,825.00
5,000+	₹14.59	₹72,950.00

Quantity (min 5, multiples of 5)

5 × ₹30.01

₹150.05

excl. GST

₹177.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC33063ADR(1.5A)-TD

₹150.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Frequency - Switching: 100Hz~100kHz
Function: Boost;Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck;Boost;Inverting
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 2.7mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.179 g

Overview

The MC34063 is a monolithic bipolar linear IC designed for DC-DC converter control. It integrates a temperature-compensated bandgap reference, a duty-cycle-controlled oscillator, a driver, and a high-current output switch capable of delivering 1.5A switching current. With minimal external components, it can be configured as a boost converter, buck converter, or voltage inverter. The MC34063 is available in a plastic DIP-8 package.
