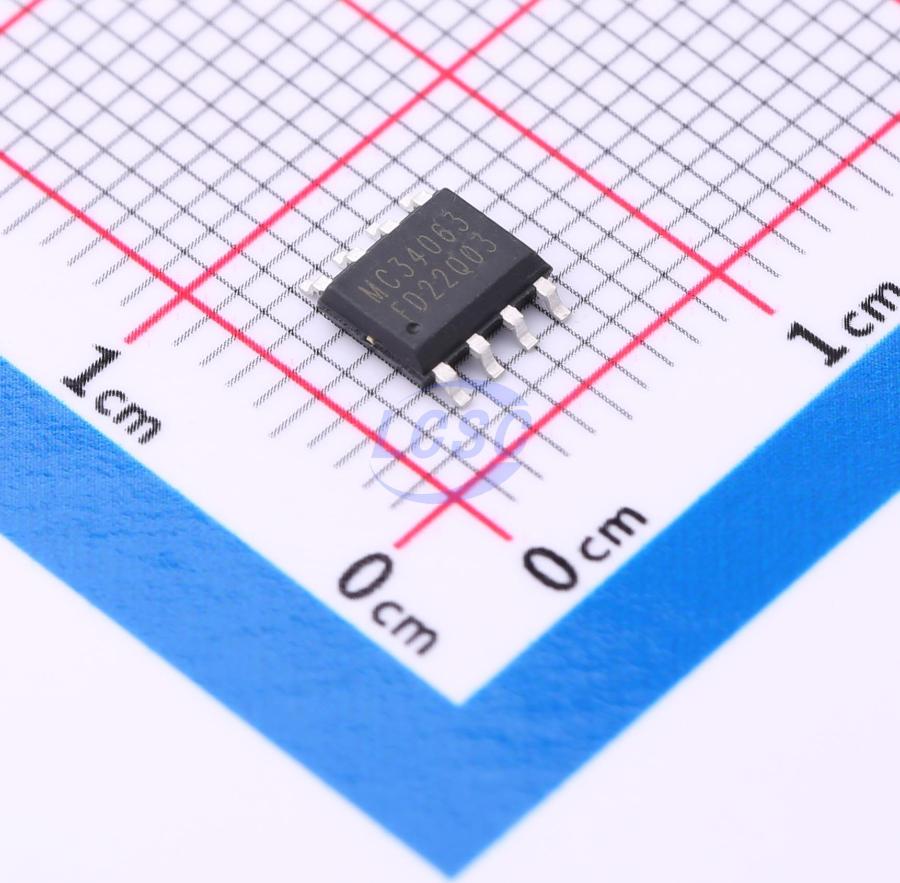

HXY MOSFET

MC34063

Boost Buck Switching Regulator IC Adjustable 1 Output SOP-8

SOP-8RoHSActive

1.3A Step-Up/Down/Inverting Switching Regulators

Manufacturer: HXY MOSFET
Manufacturer part #: MC34063
Store part #: C5349988
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16,845 in stock

#C5349988

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
5+	₹14.69	₹73.45
50+	₹11.96	₹598.00
150+	₹10.60	₹1,590.00
500+	₹9.58	₹4,790.00
2,500+	₹7.98	₹19,950.00
4,000+	₹7.57	₹30,280.00

Quantity (min 5, multiples of 5)

5 × ₹14.69

₹73.45

excl. GST

₹86.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

MC34063

₹73.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Frequency - Switching: 33kHz
Function: Step-down type;Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Inverting
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 1.3A
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.16 g

Overview

MC34063 is a monolithic DC-DC converter IC integrating a temperature-compensated reference voltage source (1.25V), comparator, oscillator with current limiting and duty cycle control, driver, and high-current output switch. Minimal external components are required to implement boost, buck, and voltage-inverting DC-DC converters. The device is available in SOP-8 (SOIC-8) package.
