MSKSEMI

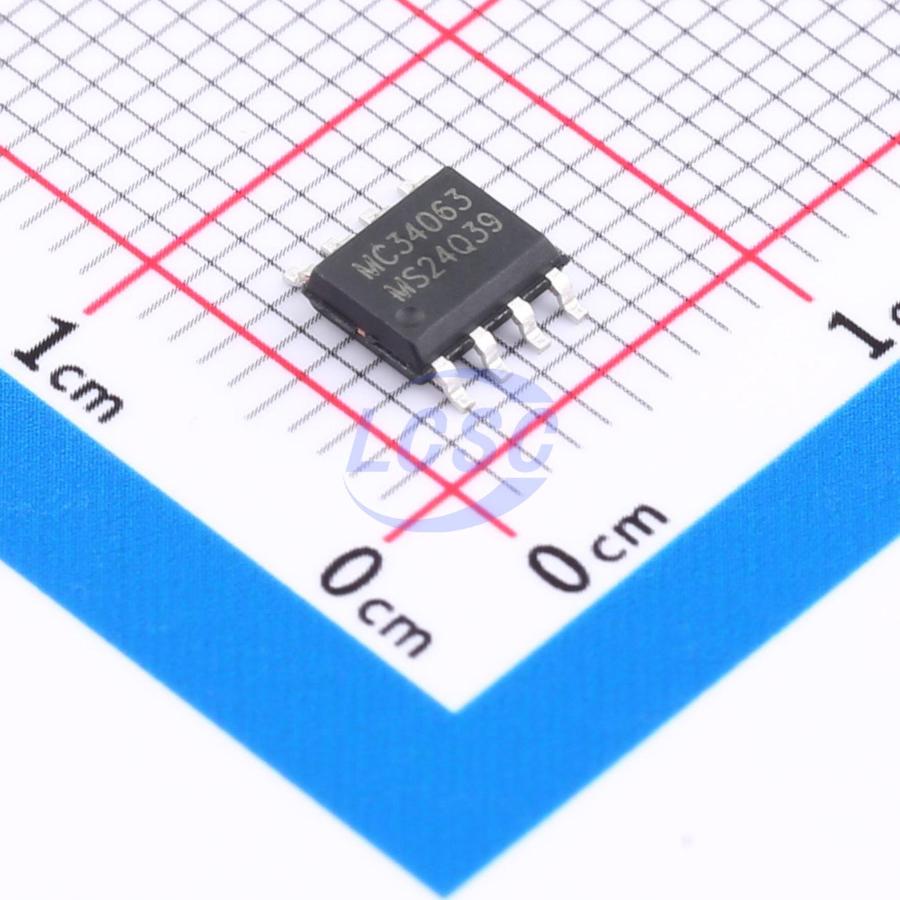

MC34063-MS

Boost Buck Switching Regulator IC Adjustable SOP-8

SOP-8ROHS CompliantActive

DC-DC conversion integrated circuit

Manufacturer: MSKSEMI
Manufacturer part #: MC34063-MS
Store part #: C47020993
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,290 in stock

#C47020993

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹17.32	₹86.60
50+	₹13.69	₹684.50
150+	₹11.88	₹1,782.00
500+	₹10.52	₹5,260.00
2,500+	₹9.43	₹23,575.00
5,000+	₹8.89	₹44,450.00

Quantity (min 5, multiples of 5)

5 × ₹17.32

₹86.60

excl. GST

₹102.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC34063-MS

₹86.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Number of Outputs: 1
Frequency - Switching: 33kHz
Function: Step-down type;Boost
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost;Buck;Inverting
Operating Voltage: 3V~32V
Switch tube (built-in/external): Built-in
Output Current: 1.2A
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

MC34063-MS is a monolithic DC-DC converter IC integrating a temperature-compensated reference voltage source (1.25V), comparator, oscillator with current limiting and duty cycle control, driver, and high-current output switch. With minimal external components, it can be configured as a boost, buck, or voltage-inverting DC-DC converter. The device is available in an SOP8 package.
