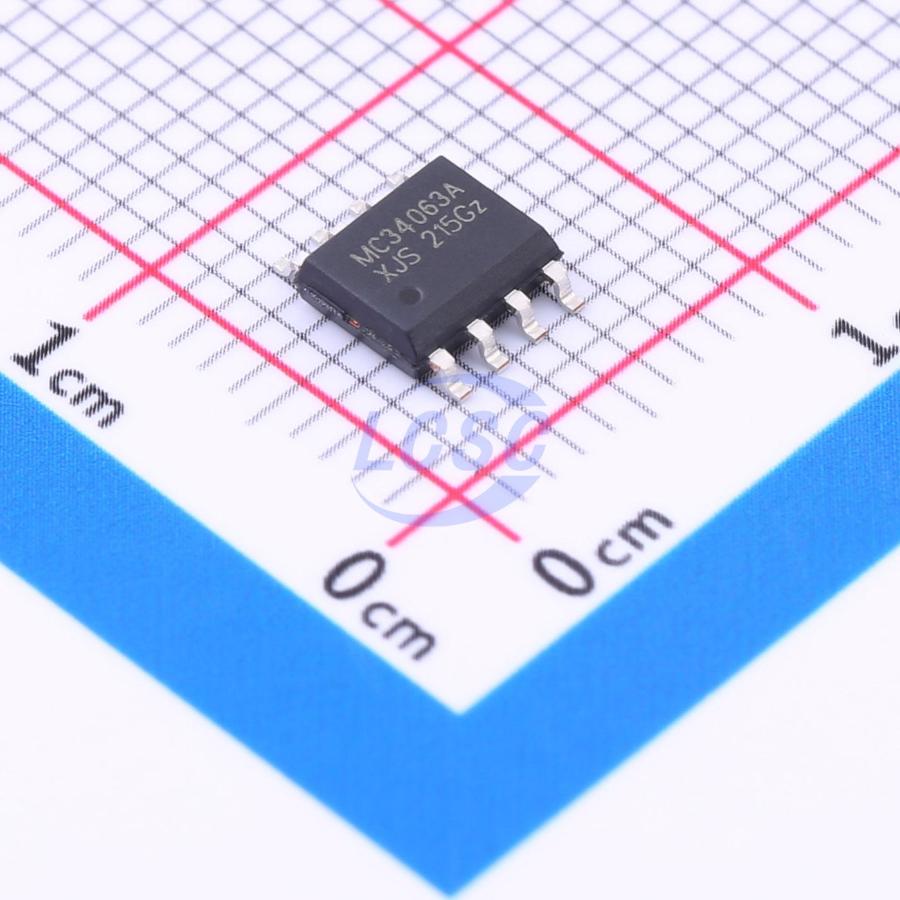

Slkor

MC34063A

1.5A 1 Adjustable SOP-8 DC DC Switching Controllers

SOP-8RoHSActive

Multi-function DC-DC Converter

Manufacturer: Slkor
Manufacturer part #: MC34063A
Store part #: C5330394
Package / case: SOP-8
Category: DC DC Switching Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,700 in stock

#C5330394

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.52	₹92.60
50+	₹14.98	₹749.00
150+	₹13.22	₹1,983.00
500+	₹11.88	₹5,940.00
2,500+	₹9.98	₹24,950.00
5,000+	₹9.45	₹47,250.00

Quantity (min 5, multiples of 5)

5 × ₹18.52

₹92.60

excl. GST

₹109.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC34063A

₹92.60 for 5 + GST

Specifications

Synchronous Rectifier: No
Operating Temperature: -40℃~+85℃@(TA)
Features: Overcurrent Protection
Output Current: 1.5A
Number of Channels: 1
Topology: Buck;Boost;Inverting
Frequency - Switching: 38kHz
Operating Voltage: 3V~36V
Output Type: Adjustable
Switch tube (built-in/external): Built-in
Function: Step-down type;Boost
Quiescent Current: 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g

Overview

The MC34063A is a monolithic switching regulator control circuit which contains the primary functions required for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch. The MC34063A is specifically designed as a general DC-DC converter to be used in Step-Down, Step-Up and Voltage-Inverting applications with a minimum number of external components. The MC34063A is available in package : SOP -8
