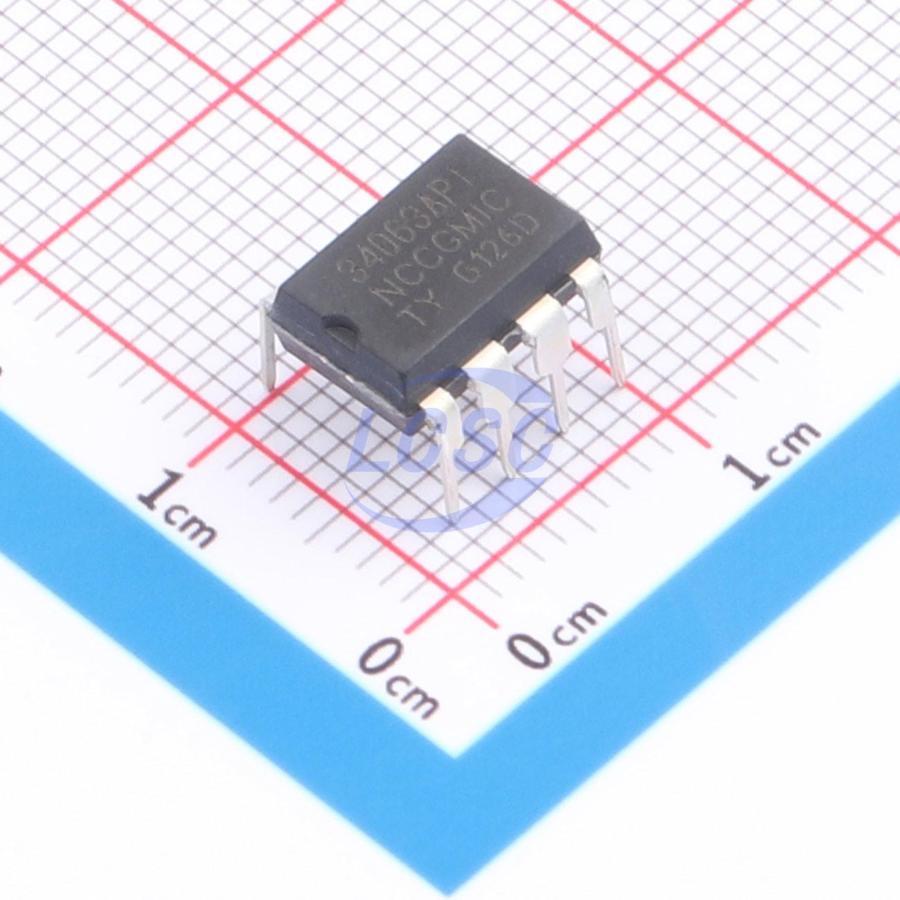

MC34063ABD
100Hz~100kHz Buck-Boost Adjustable 1.5A DIP-8 Voltage Regulators - DC DC Switching Regulators
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- MC34063ABD
- Store part #
- C51927324
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C51927324
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.49 | ₹87.45 |
| 50+ | ₹13.79 | ₹689.50 |
| 150+ | ₹11.93 | ₹1,789.50 |
| 500+ | ₹10.54 | ₹5,270.00 |
| 2,000+ | ₹9.43 | ₹18,860.00 |
| 4,000+ | ₹8.88 | ₹35,520.00 |
5 × ₹17.49
₹87.45
excl. GST
₹103.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC34063ABD
₹87.45 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 100Hz~100kHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.829 g
Overview
The MC34063 series is a monolithic control circuit that integrates the primary functions required for DC-DC converters. The device incorporates an internal temperature-compensated reference, a comparator, a controlled duty cycle oscillator with an active current limiting circuit, a driver, and a high-current output switch. This series is designed for buck, boost, and voltage inverting applications with a minimum number of external components.
Key features
- 3.0 V to 40 V input voltage operation
- Low standby current
- Current limiting
- Output switch current up to 1.5 A
- Adjustable output voltage
- Operating frequency up to 100 kHz
- 2% accuracy reference
