TECH PUBLICDatasheet (PDF)

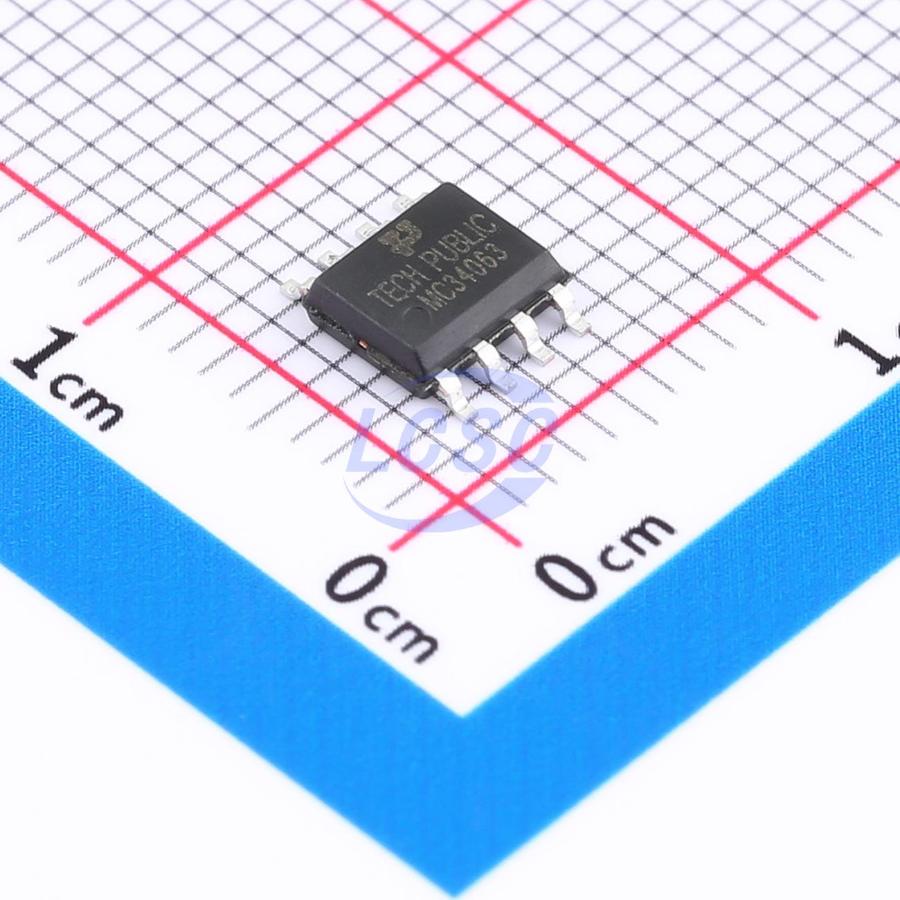

MC34063ADR-TP
100Hz~100kHz Adjustable 1.2A SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
1.2 A, Step-Up/Down/Inverting Switching Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC34063ADR-TP
- Store part #
- C47117541
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,935 in stock
#C47117541
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.41 | ₹62.05 |
| 50+ | ₹10.99 | ₹549.50 |
| 150+ | ₹10.28 | ₹1,542.00 |
| 500+ | ₹9.75 | ₹4,875.00 |
| 2,500+ | ₹9.33 | ₹23,325.00 |
| 4,000+ | ₹9.12 | ₹36,480.00 |
5 × ₹12.41
₹62.05
excl. GST
₹73.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MC34063ADR-TP
₹62.05 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 100Hz~100kHz
- Function
- Step-down type;Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck;Boost;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Overview
The is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.
Applications
- Battery Chargers
- NICs / Switches / Hubs
- LCD TV
- DSL Modem
- Access Point Router
- Negative Voltage Power Supplies
- Set Top Box
Key features
- Operation from 3.0V to 40V
- Short circuit current limiting
- Low standby current
- Output switch current of 1.2A without external transistors
- Frequency of operation from 100Hz to 100kHz
- Step-up, step-down or inverting switch regulators
- package: SOP8
