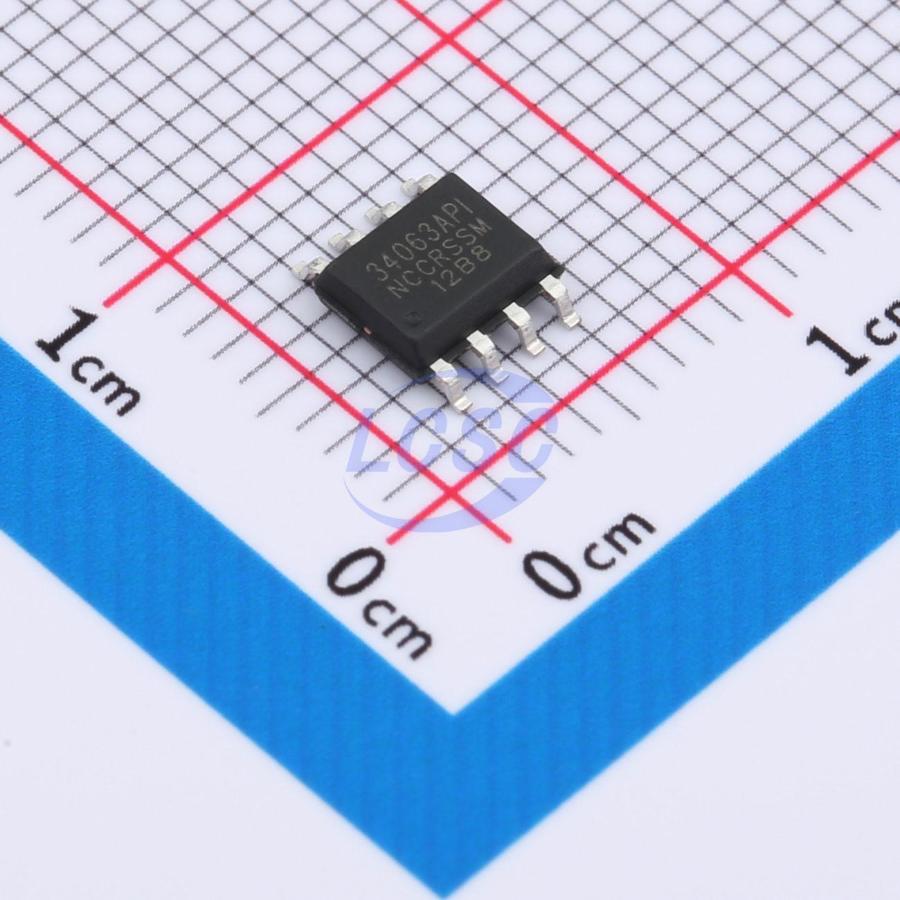

JSMSEMI

MC34063ADR2G-JSM

Buck-Boost Switching Regulator IC Adjustable 1 Output 0.8A SOP-8

SOP-8ROHS CompliantActive

Single-Chip DC-DC Converter Control Circuit

Manufacturer: JSMSEMI
Manufacturer part #: MC34063ADR2G-JSM
Store part #: C41382482
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,975 in stock

#C41382482

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
5+	₹10.43	₹52.15
50+	₹8.14	₹407.00
150+	₹6.99	₹1,048.50
500+	₹6.13	₹3,065.00
2,500+	₹6.06	₹15,150.00
5,000+	₹5.72	₹28,600.00

Quantity (min 5, multiples of 5)

5 × ₹10.43

₹52.15

excl. GST

₹61.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC34063ADR2G-JSM

₹52.15 for 5 + GST

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Function: Buck-Boost
Frequency - Switching: 33kHz
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Buck-Boost
Output Type: Adjustable
Operating Voltage: 3V~24V
Switch tube (built-in/external): Built-in
Output Current: 800mA
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.203 g

Overview

MC34063ADR2G-JSM is a monolithic DC-DC converter IC that integrates a temperature-compensated reference voltage source (1.25V), comparator, oscillator with effective current limiting and duty cycle control, driver, and high-current output switch transistor. With minimal external components, it can be configured as a boost, buck, or voltage-inverting DC-DC converter.
