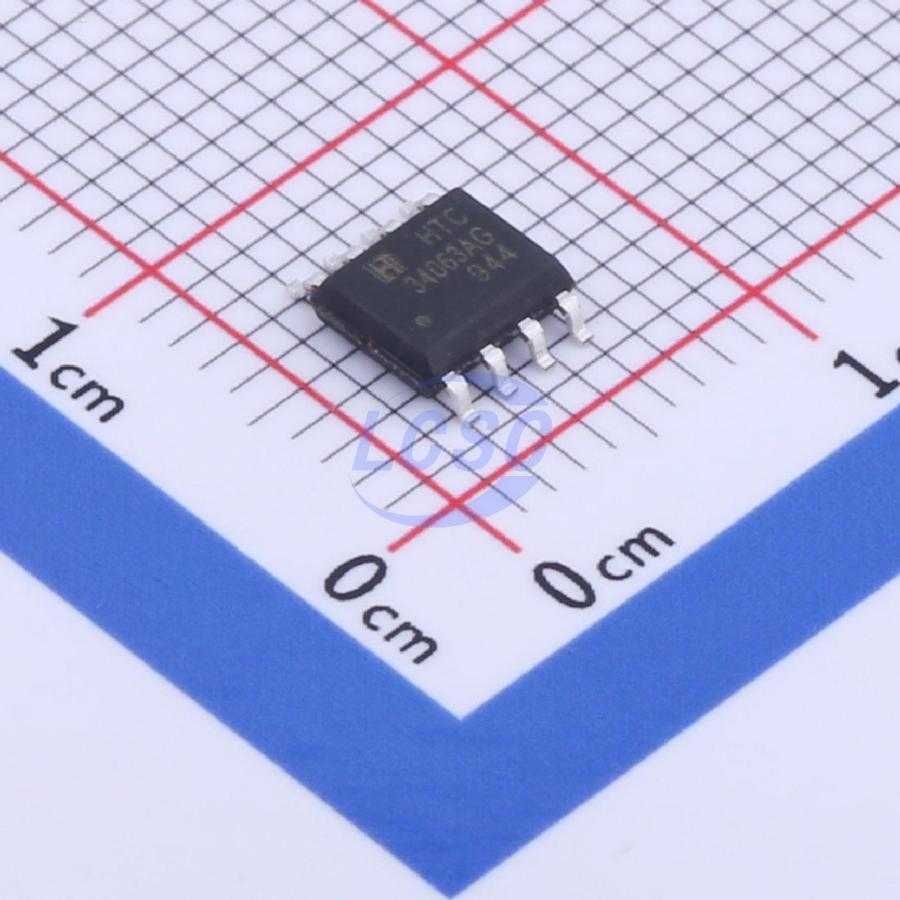

MC34063AGD
1 1.5A Adjustable SOP-8 DC DC Switching Controllers RoHS
DC-DC Converter Control Circuits
- Manufacturer
- HTC
- Manufacturer part #
- MC34063AGD
- Store part #
- C911185
- Package / case
- SOP-8
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C911185
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.05 | ₹90.25 |
| 50+ | ₹14.06 | ₹703.00 |
| 150+ | ₹12.08 | ₹1,812.00 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 2,500+ | ₹9.39 | ₹23,475.00 |
| 5,000+ | ₹8.80 | ₹44,000.00 |
5 × ₹18.05
₹90.25
excl. GST
₹106.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC34063AGD
₹90.25 for 5 + GST
Specifications
- Synchronous Rectifier
- No
- Features
- Adjustable current limiting;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck;Boost;Inverting
- Operating Voltage
- 40V
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1.5A
- Frequency - Switching
- 100kHz
- Output Type
- Adjustable
- Function
- Boost;Step-down type
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The MC34063AG series is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components the MC34063AG devices series is designed for StepDown, Step-Up and Voltage-Inverting applications.
Applications
- Battery Chargers
- NICs / Switches / Hubs
- ADSL Modems
- Negative Voltage Power Supplies
Key features
- Output Switch Current In Excess of 1.5A
- 2% Reference Accuracy
- Low Quiescent Current: 2.5mA(Typ.)
- Operating From 3V to 40V
- Frequency Operation to 100KHz
- Active Current Limiting
- MC34063AG is Halogen Free Products
