GATEMODEDatasheet (PDF)

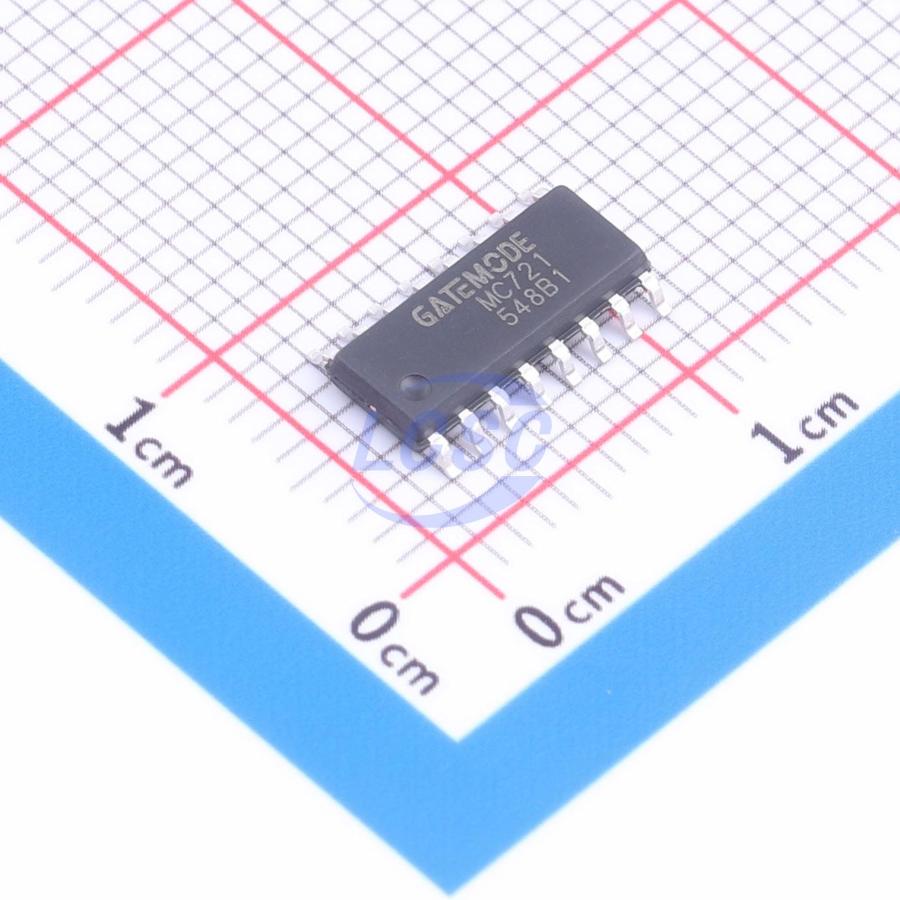

MC721
UART -40℃~+85℃ SOIC-16 Specialized
SOIC-16RoHSActive
- Manufacturer
- GATEMODE
- Manufacturer part #
- MC721
- Store part #
- C52140010
- Package / case
- SOIC-16
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,469 in stock
#C52140010
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.54 | ₹79.54 |
| 10+ | ₹64.21 | ₹642.10 |
| 30+ | ₹56.64 | ₹1,699.20 |
| 100+ | ₹49.07 | ₹4,907.00 |
| 500+ | ₹44.57 | ₹22,285.00 |
| 1,000+ | ₹42.32 | ₹42,320.00 |
1 × ₹79.54
₹79.54
excl. GST
₹93.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC721
₹79.54 for 1 + GST
Specifications
- Interface
- UART
- Voltage Rating
- 9.2V~42V
- Features
- Interrupt generation
- Operating Temperature
- -40℃~+85℃
- Supply Current
- 359uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
MC721 is a single-chip integrated slave transceiver for two-wire M-Bus slave devices and repeaters. The transceiver provides all functions required to meet the M-Bus physical layer requirements described in European standards EN 13757-2 and EN 1434-3. It includes programmable power levels up to 2 unit loads, available to external circuits via a 3.3V LDO regulator. The MC721 supports a maximum M-Bus communication rate of up to 38,400 baud (half-duplex).
Applications
- Multi-energy utility meters
- Water meters
- Gas meters
- Electricity meters
- Heating systems
Key features
- Single-chip instrumentation bus transceiver
- UART communication rate up to 38,400 baud
- Integrated 3.3V VDD LDO regulator with peak current capability extended to 15mA, supporting slave device power supply from bus or external source
- Adjustable I/O levels for low bus voltage operation
- Extended current budget for external circuits: minimum 0.88mA
- Polarity-independent
- Power failure detection
- Fast start-up — no external transistor required on STC pin
- Industrial ambient temperature range: -40℃ to +85℃
- Available in 16-pin SOIC package
- Lead-free device
