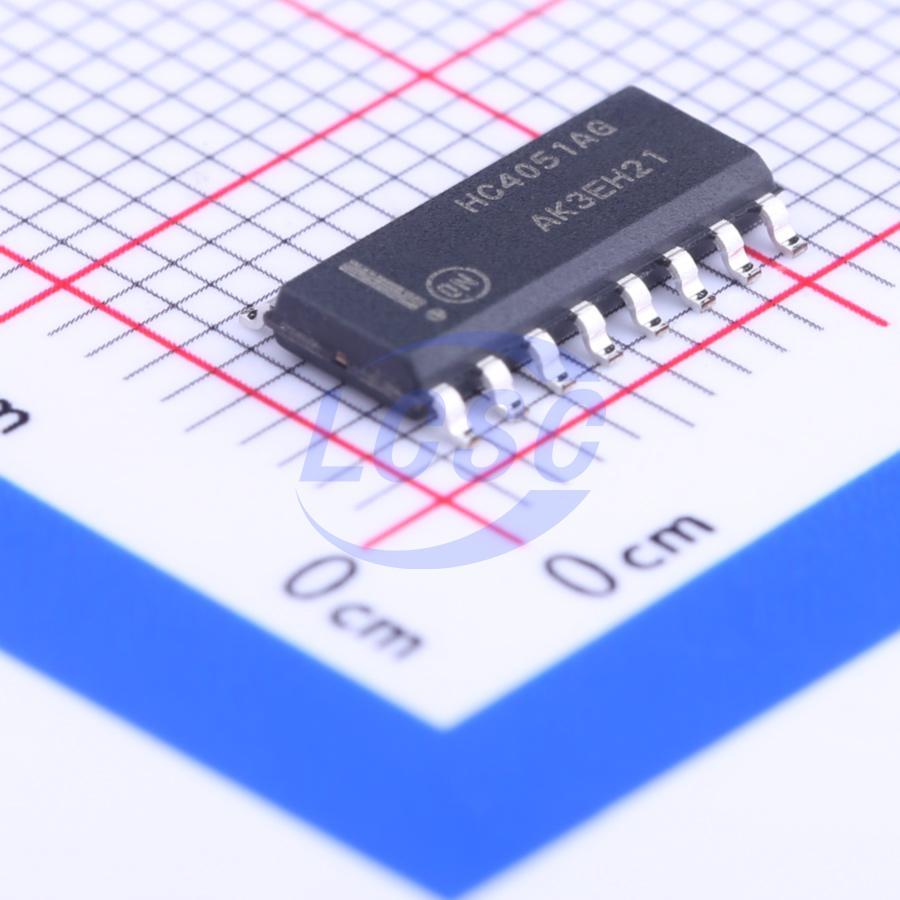

MC74HC4051ADR2G

The MC74HC4051A, MC74HC4052A and MC74HC4053A utilize silicon−gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. These analog multiplexers/demultiplexers control analog voltages that may vary across the complete power supply range (from VCC to VEE). The HC4051A, HC4052A and HC4053A are identical in pinout to the metal−gate MC14051AB, MC14052AB and MC14053AB. The Channel−Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The Channel−Select and Enable inputs are compatible with standard CMOS outputs; with pullup resistors they are compatible with LSTTL outputs. These devices have been designed so that the ON resistance (Ron) is more linear over input voltage than Ron of metal−gate CMOS analog switches.

Key features

• Fast Switching and Propagation Speeds
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Analog Power Supply Range (VCC - VEE) = 2.0 to 12.0 V
• Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V
• Improved Linearity and Lower ON Resistance Than Metal−Gate Counterparts
• Low Noise
• In Compliance with the Requirements of JEDEC Standard No. 7A
• Chip Complexity: HC4051A — 184 FETs or 46 Equivalent Gates HC4052A — 168 FETs or 42 Equivalent Gates HC4053A — 156 FETs or 39 Equivalent Gates
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
