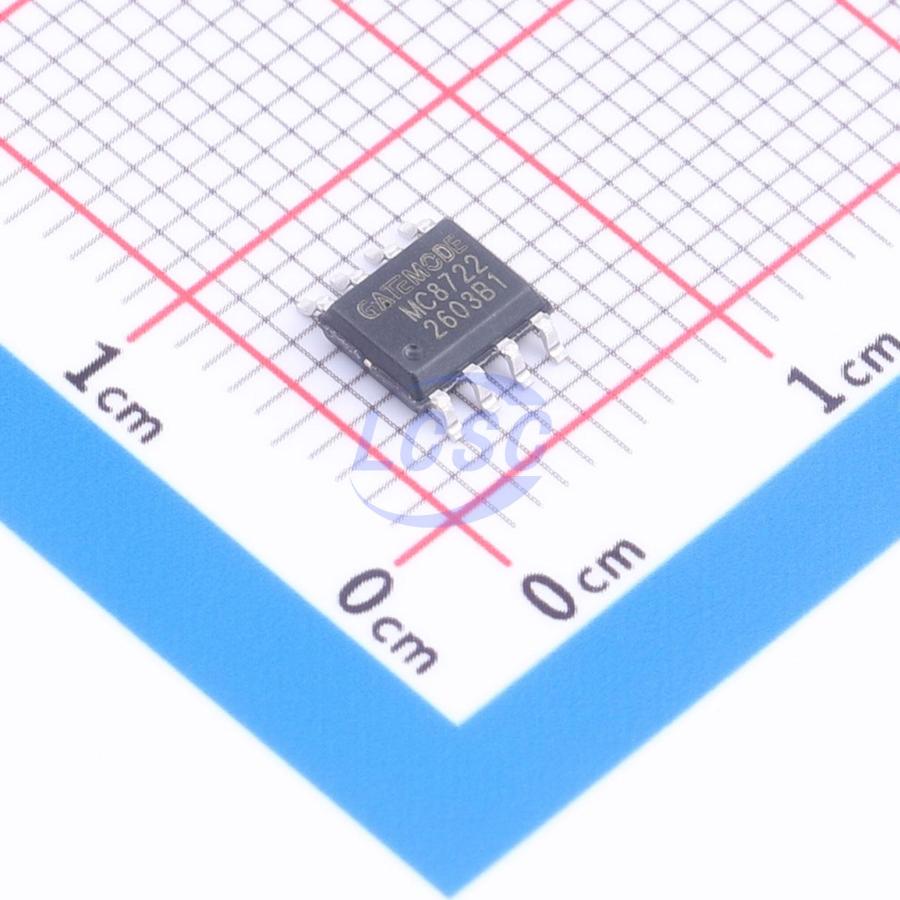

MC8722
UART -40℃~+85℃ 9.6Kbps SOP-8 Specialized
- Manufacturer
- GATEMODE
- Manufacturer part #
- MC8722
- Store part #
- C51891931
- Package / case
- SOP-8
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,489 in stock
#C51891931
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.47 | ₹71.47 |
| 10+ | ₹57.95 | ₹579.50 |
| 30+ | ₹50.01 | ₹1,500.30 |
| 100+ | ₹42.93 | ₹4,293.00 |
| 500+ | ₹38.21 | ₹19,105.00 |
| 1,000+ | ₹34.35 | ₹34,350.00 |
1 × ₹71.47
₹71.47
excl. GST
₹84.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC8722
₹71.47 for 1 + GST
Specifications
- Interface
- UART
- Voltage Rating
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Supply Current
- 20mA
- Quiescent Supply Current
- 1mA;1.3mA;1.8mA
- Data Rate
- 9.6Kbps
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
MC8722 is a monolithic slave interface IC designed for applications compliant with the M-Bus communication standard (EN1434-3). The IC accommodates potential differences between slave and master nodes, requires no polarity consideration for bus connections, and can be powered directly from the bus by the master — eliminating the need for a dedicated power supply at the slave end. During data reception, the built-in dynamic level detection circuit automatically adjusts according to bus length. The transmit current is fixed at 20mA. With an 8-pin configuration and compact package, the MC8722 helps reduce PCB area and requires minimal external components to implement a highly reliable, high-performance M-Bus terminal interface.
Applications
- Meter-Bus communication systems
- Smart gas meter and heat meter reading systems
- Industrial control LAN systems
- Various communication equipment
- Smart sensor networks
Key features
- Compliant with EN1434-3 standard
- Receiver circuit with dynamic level recognition
- 20mA reusable current source
- Standard baud rates from 1200bps to 9600bps
- Polarity-free transmission
- Wide bus high-level voltage range: 18V ~ 45V
- 5V and 3.3V regulated outputs with maximum drive current exceeding 30mA
- SOP8 compact package
