MICROCHIPDatasheet (PDF)

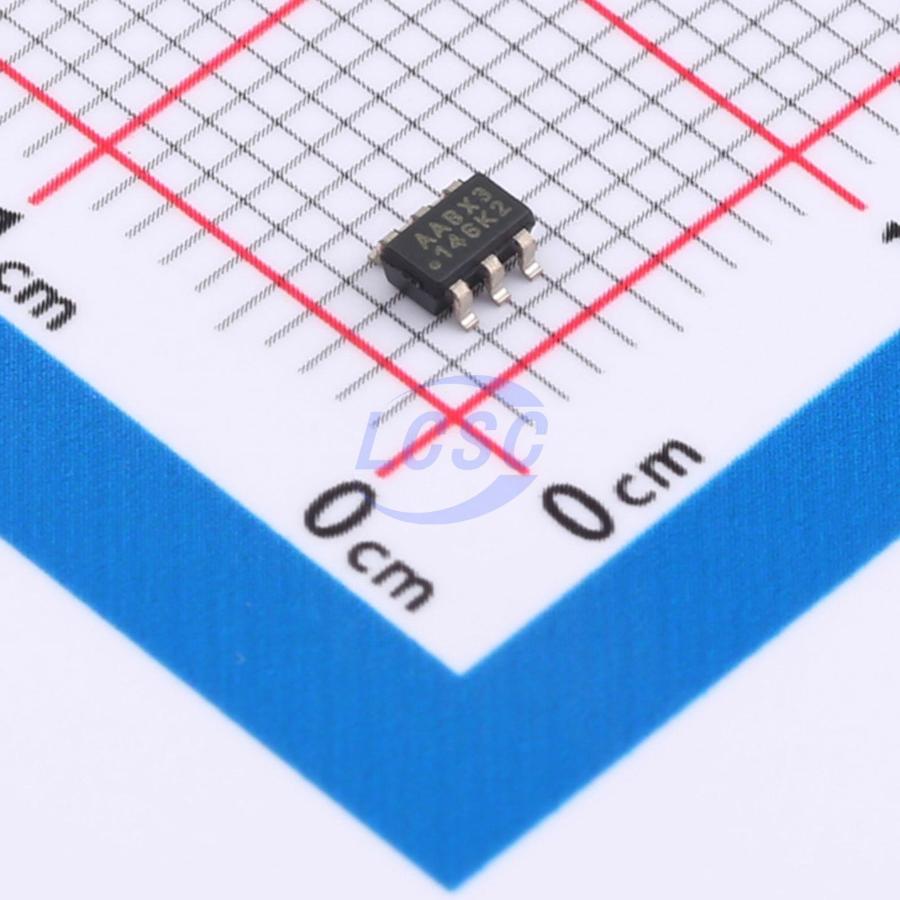

MCP1501T-25E/CHY
2.5V ±0.1% 2.7V~5.5V 20mA Fixed SOT-23-6 Voltage Reference RoHS
SOT-23-6ROHS3 CompliantActive
High-Precision Buffered Voltage Reference
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP1501T-25E/CHY
- Store part #
- C625319
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,903 in stock
#C625319
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.93 | ₹225.93 |
| 10+ | ₹188.63 | ₹1,886.30 |
| 30+ | ₹168.03 | ₹5,040.90 |
| 100+ | ₹144.84 | ₹14,484.00 |
| 500+ | ₹134.65 | ₹67,325.00 |
| 1,000+ | ₹129.88 | ₹1,29,880.00 |
1 × ₹225.93
₹225.93
excl. GST
₹266.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP1501T-25E/CHY
₹225.93 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 550uA
- Tolerance
- ±0.1%
- Voltage - Supply
- 2.7V~5.5V
- Reference Type
- Series
- Output Current
- 20mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable;Built-in output buffer
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The MCP1501 is a buffered voltage reference capable of sinking and sourcing 20 mA of current. The voltage reference is a low-drift band gap based reference. The band gap uses chopper-based amplifiers, effectively reducing the drift to zero.
Applications
- Precision Data Acquisition Systems
- High-Resolution Data Converters
- Medical Equipment Applications
- Industrial Controls
- Battery-Powered Devices
- Electric Vehicle Battery Management Systems
Key features
- Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C
- Initial Accuracy: 0.1%
- Operating Temperature Range: -40°C to +125°C
- Low Typical Operating Current: 140 μA
- Line Regulation: 50 ppm/V Maximum
- Load Regulation: 40 ppm/mA Maximum
- 10 Voltage Variants Available: -1.024V, 1.250V, 1.800V, 2.048V, 2.500V, -3.000V, -3.300V, -4.096V, 4.500V (6-Lead SOT-23 package only), -5.000V (6-Lead SOT-23 package only)
- Output Noise: 30 μVRMS, 0.1 Hz to 10 kHz (1.024V)
- AEC-Q100 Qualified (Automotive Applications) - Package qualified: 6-Lead SOT-23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP1502T-25E/CHY#C3680051MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 29 | ₹385.50 · 29 in stock | View |
 | ADR3425ARJZ-R2#C579287ADI · SOT-23-6 | ADI | SOT-23-6 | 83 | ₹365.33 · 83 in stock | View |
 | ADR3425ARJZ-R7#C60864ADI · SOT-23-6 | ADI | SOT-23-6 | 2,844 | ₹335.34 · 2,844 in stock | View |
 | MAX6070BAUT25+T#C143531MAXIM · SOT-23-6 | MAXIM | SOT-23-6 | 1,319 | ₹667.15 · 1,319 in stock | View |
 | MAX6071BAUT25+T#C778254MAXIM · SOT-23-6 | MAXIM | SOT-23-6 | 2,472 | ₹346.90 · 2,472 in stock | View |
