MICROCHIPDatasheet (PDF)

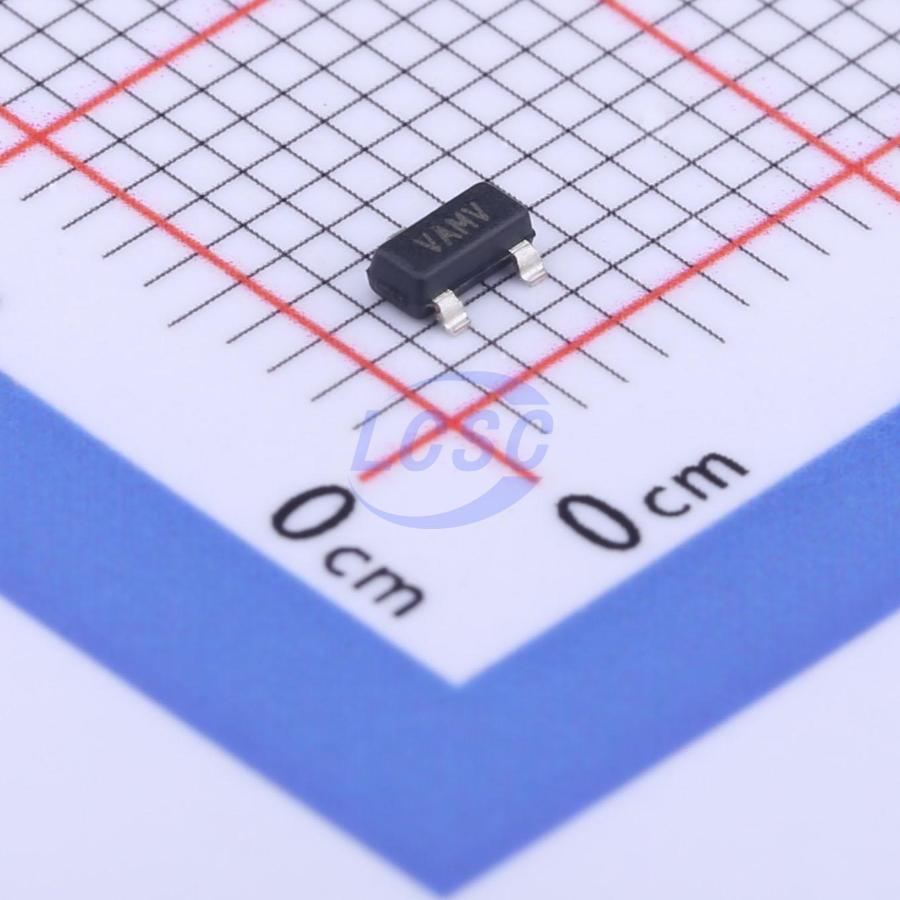

MCP1525T-I/TT
2.5V ±1% 2.7V~5.5V 2mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Voltage References
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP1525T-I/TT
- Store part #
- C47105
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,211 in stock
#C47105
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.17 | ₹87.17 |
| 10+ | ₹71.34 | ₹713.40 |
| 30+ | ₹63.32 | ₹1,899.60 |
| 100+ | ₹55.29 | ₹5,529.00 |
| 500+ | ₹50.53 | ₹25,265.00 |
| 1,000+ | ₹48.14 | ₹48,140.00 |
1 × ₹87.17
₹87.17
excl. GST
₹102.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP1525T-I/TT
₹87.17 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 120uA
- Tolerance
- ±1%
- Voltage - Supply
- 2.7V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 90uVp-p
- Output Current
- 2mA
- Operating Temperature
- -40℃~+85℃
- Noise - 10Hz to 10kHz
- 500uVp-p
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
2.5V and 4.096V precision voltage references that use a combination of an advanced CMOS circuit design and EPROM trimming to provide an initial tolerance of ±1% (max.) and temperature stability of ±50 ppm/°C (max.). In addition to a low quiescent current of 100 μA (max.) at 25°C, these devices offer a clear advantage over the traditional Zener techniques in terms of stability across time and temperature. The output voltage is 2.5V for one and 4.096V for the other. These devices are offered in SOT - 23 - 3 and TO - 92 packages, and are specified over the industrial temperature range of -40°C to +85°C.
Applications
- Battery - powered Systems
- Handheld Instruments
- Instrumentation and Process Control
- Test Equipment
- Data Acquisition Systems
- Communications Equipment
- Medical Equipment
- Precision Power supplies
- 8 - bit, 10 - bit, 12 - bit A/D Converters (ADCs)
- D/A Converters (DACs)
Key features
- Precision Voltage Reference
- Output Voltages: 2.5V and 4.096V
- Initial Accuracy: ±1% (max.)
- Temperature Drift: ±50 ppm/°C (max.)
- Output Current Drive: ±2 mA
- Maximum Input Current: 100 μA @ +25°C (max.)
- Packages: TO - 92 and SOT - 23 - 3
- Industrial Temperature Range: -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX6125EUR+T#C242552MAXIM · SOT-23 | MAXIM | SOT-23 | 543 | ₹361.66 · 543 in stock | View |
 | GM7200AUJZ-2.5-R7#C55595895GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | 200 | ₹84.13 · 200 in stock | View |
 | MAX6102EUR+T#C143533MAXIM · SOT-23 | MAXIM | SOT-23 | 1,645 | ₹219.04 · 1,645 in stock | View |
 | MAX6102EUR#C3679801MAXIM · SOT-23-3 | MAXIM | SOT-23-3 | 135 | ₹205.92 · 135 in stock | View |
 | ISL21010CFH325Z-T7A#C2157608RENESAS · SOT-23-3 | RENESAS | SOT-23-3 | 3 | ₹315.14 · 3 in stock | View |
