MICROCHIPDatasheet (PDF)

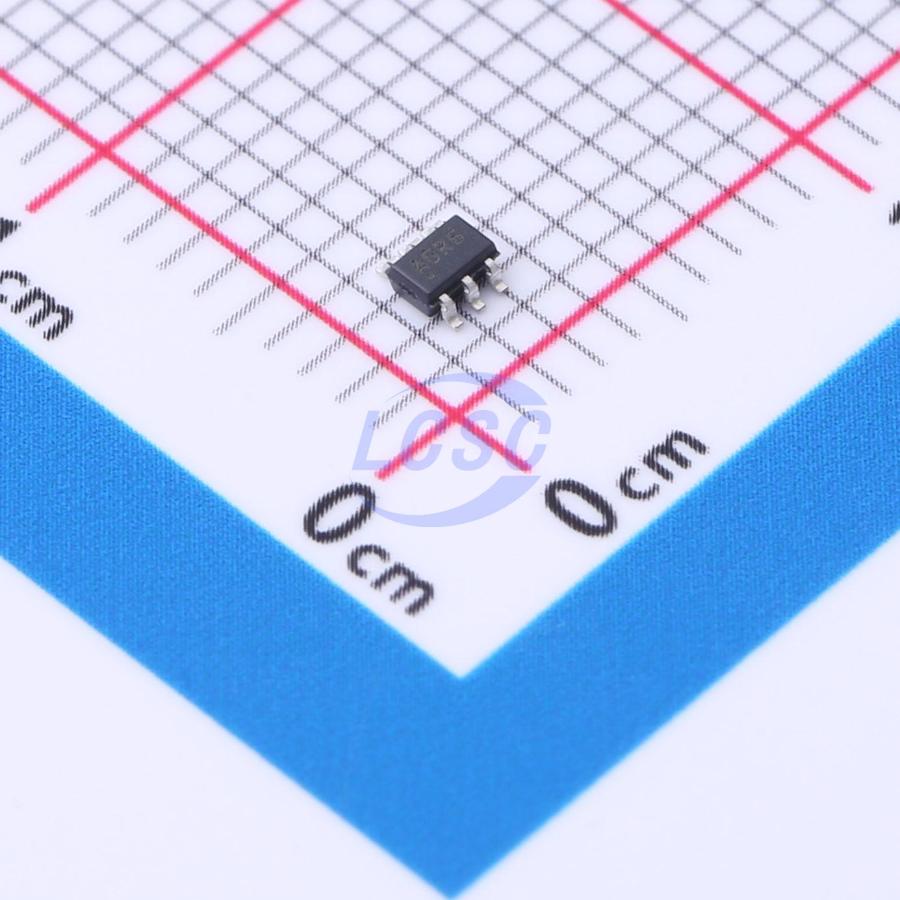

MCP4017T-503E/LT
±20% I2C 50kΩ SC-70-6 Digital Potentiometers RoHS
SC-70-6ROHS3 CompliantActive
7-Bit Single I²C Digital POT with Volatile Memory in SC70
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP4017T-503E/LT
- Store part #
- C478095
- Package / case
- SC-70-6
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,531 in stock
#C478095
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.89 | ₹138.89 |
| 10+ | ₹113.46 | ₹1,134.60 |
| 30+ | ₹100.85 | ₹3,025.50 |
| 100+ | ₹88.24 | ₹8,824.00 |
| 500+ | ₹77.16 | ₹38,580.00 |
| 1,000+ | ₹73.47 | ₹73,470.00 |
1 × ₹138.89
₹138.89
excl. GST
₹163.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP4017T-503E/LT
₹138.89 for 1 + GST
Specifications
- Voltage - Supply
- 1.8V~5.5V
- Resistance value change
- Linear
- Memory Type
- RAM
- Number of Taps
- 128
- Tolerance
- ±20%
- Interface
- I2C
- Temperature Coefficient(Typ)
- 50ppm/℃
- Features
- Power-on reset
- Operating Temperature
- -40℃~+125℃
- Resistance Value (Ohms)
- 50kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Key features
- Potentiometer or Rheostat configuration options
- 7-bit: Resistor Network Resolution - 127 Resistors (128 Steps)
- Zero Scale to Full Scale Wiper operation
- RAB Resistances: 5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ
- Low Wiper Resistance: 100 Ω (typical)
- Low Tempco: - Absolute (Rheostat): 50 ppm typical (0°C to 70°C) - Ratiometric (Potentiometer): 10 ppm typical
- Simple I²C Protocol with read & write commands
- Brown-out reset protection (1.5V typical)
- Power-on Default Wiper Setting (Mid-scale)
- Low-Power Operation: - 2.5 μA Static Current (typical)
- Wide Operating Voltage Range: - 2.7V to 5.5V - Device Characteristics Specified - 1.8V to 5.5V - Device Operation
- Wide Bandwidth (-3 dB) Operation: - 2 MHz (typical) for 5.0 kΩ device
- Extended temperature range (-40°C to +125°C)
- Very small package (SC70)
- Lead free (Pb-free) package
