MICROCHIPDatasheet (PDF)

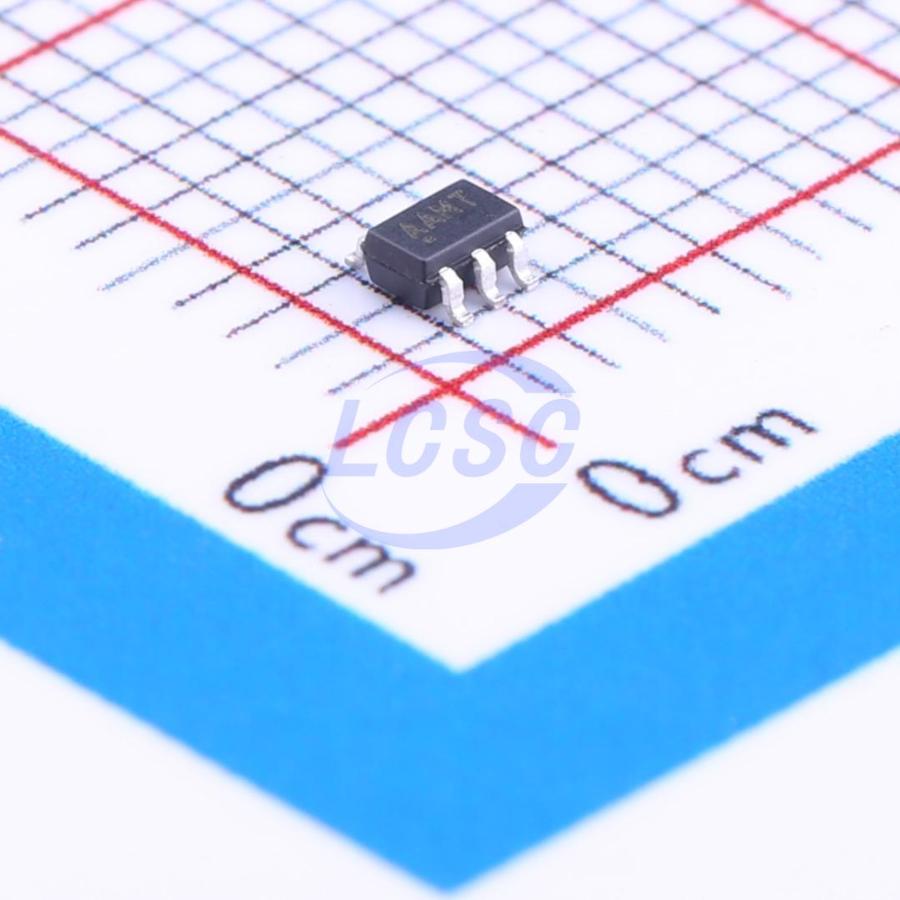

MCP4018T-502E/LT
±20% I2C 5kΩ SC-70-6(SOT-363) Digital Potentiometers RoHS
SC-70-6(SOT-363)ROHS3 CompliantDiscontinued
7-Bit Single I²C Digital POT with Volatile Memory in SC70
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP4018T-502E/LT
- Store part #
- C129156
- Package / case
- SC-70-6(SOT-363)
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,035 in stock
#C129156
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.60 | ₹151.60 |
| 10+ | ₹123.81 | ₹1,238.10 |
| 30+ | ₹109.90 | ₹3,297.00 |
| 100+ | ₹96.22 | ₹9,622.00 |
| 500+ | ₹87.97 | ₹43,985.00 |
| 1,000+ | ₹83.84 | ₹83,840.00 |
1 × ₹151.60
₹151.60
excl. GST
₹178.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP4018T-502E/LT
₹151.60 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.5V
- Resistance value change
- Linear
- Memory Type
- RAM
- Number of Taps
- 128
- Tolerance
- ±20%
- Interface
- I2C
- Temperature Coefficient(Typ)
- 50ppm/℃
- Features
- Power-on reset
- Operating Temperature
- -40℃~+125℃
- Resistance Value (Ohms)
- 5kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Key features
- Potentiometer or Rheostat configuration options
- 7-bit: Resistor Network Resolution - 127 Resistors (128 Steps)
- Zero Scale to Full Scale Wiper operation
- R_AB Resistances: 5 kΩ, 10 kΩ, 50 kΩ, or 100 kΩ
- Low Wiper Resistance: 100Ω (typical)
- Low Tempco:
- Absolute (Rheostat): 50 ppm typical (0°C to 70°C)
- Ratiometric (Potentiometer): 10 ppm typical
- Simple I²C Protocol with read & write commands
- Brown-out reset protection (1.5V typical)
- Power-on Default Wiper Setting (Mid-scale)
- Low-Power Operation:
- 2.5 μA Static Current (typical)
- Wide Operating Voltage Range:
- 2.7V to 5.5V
- Device Characteristics Specified 1.8V to 5.5V
- Device Operation
- Wide Bandwidth (-3 dB) Operation:
- 2 MHz (typical) for 5.0 kΩ device
- Extended temperature range (-40°C to +125°C)
- Very small package (SC70)
- Lead free (Pb-free) package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP4017T-502E/LT#C511303MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 7,738 | ₹284.17 · 7,738 in stock | View |
| MCP4018T-502E/LTY#C48879541MICROCHIP · SC-70-6 | MICROCHIP | SC-70-6 | 458 | ₹190.46 · 458 in stock | View | |
 | AD5246BKSZ5-RL7#C141963ADI · SC-70-6 | ADI | SC-70-6 | 7 | ₹258.81 · 7 in stock | View |
| AD5247BKSZ5-RL7#C649413ADI · SC-70-6 | ADI | SC-70-6 | On request | Price on request | Quote | |
