Mingda MicroelectronicsDatasheet (PDF)

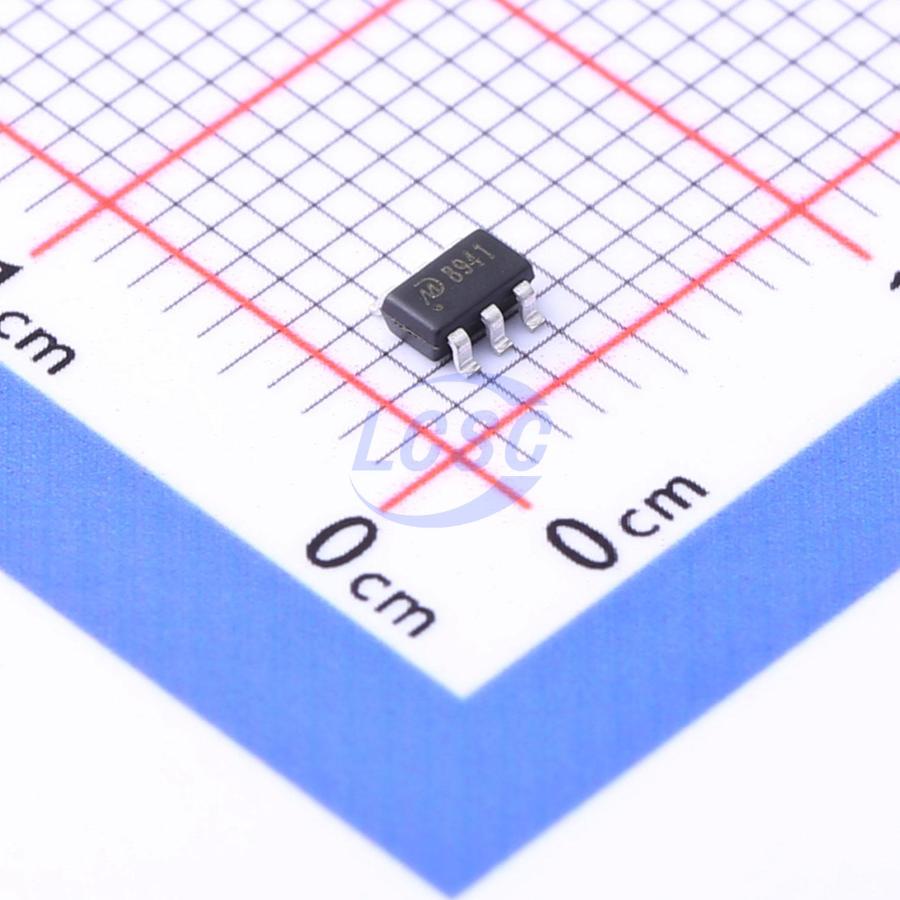

MD8941
2MHz Step-down type Adjustable 600mA SOT-23-6L Voltage Regulators - DC DC Switching Regulators
SOT-23-6LRoHSActive
40V 2MHz 0.6A Step-Down Converter
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD8941
- Store part #
- C2684785
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,985 in stock
#C2684785
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.43 | ₹137.15 |
| 50+ | ₹21.84 | ₹1,092.00 |
| 150+ | ₹19.43 | ₹2,914.50 |
| 500+ | ₹16.44 | ₹8,220.00 |
| 3,000+ | ₹13.02 | ₹39,060.00 |
| 6,000+ | ₹12.21 | ₹73,260.00 |
5 × ₹27.43
₹137.15
excl. GST
₹161.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD8941
₹137.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.2V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 140uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
The MD8941 is a high frequency (2MHz) step-down, non-synchronous buck converter with integrated internal high-side high voltage power MOSFET. It provides 0.6A (or less) highly efficient output. The wide 4.2V to 40V input range allows a variety of applications in automotive environment, and 2uA shutdown quiescent current allow applications in battery power systems. Additional protection features are included such as Over Current Protection, Thermal Shutdown and Under Voltage Lockout. The MD8941 is available in the cost-effective SOT23-6L packages.
Applications
- High Voltage Power Conversion
- Automotive Applications
- Industrial distributed power applications
- Battery Powered Equipment
- OA instrument
Key features
- 140uA Quiescent Current
- Wide Operating Input Range 4.2V to 40V
- 600mΩ Internal Power MOSFET
- 2MHz Fixed Switching Frequency
- Internal Compensation
- High Efficiency: >90%
- Cycle-by-Cycle Over Current Protection
- Internal Soft-Start
- 2uA Low Shutdown Supply Current
- SOT23-6L Package
