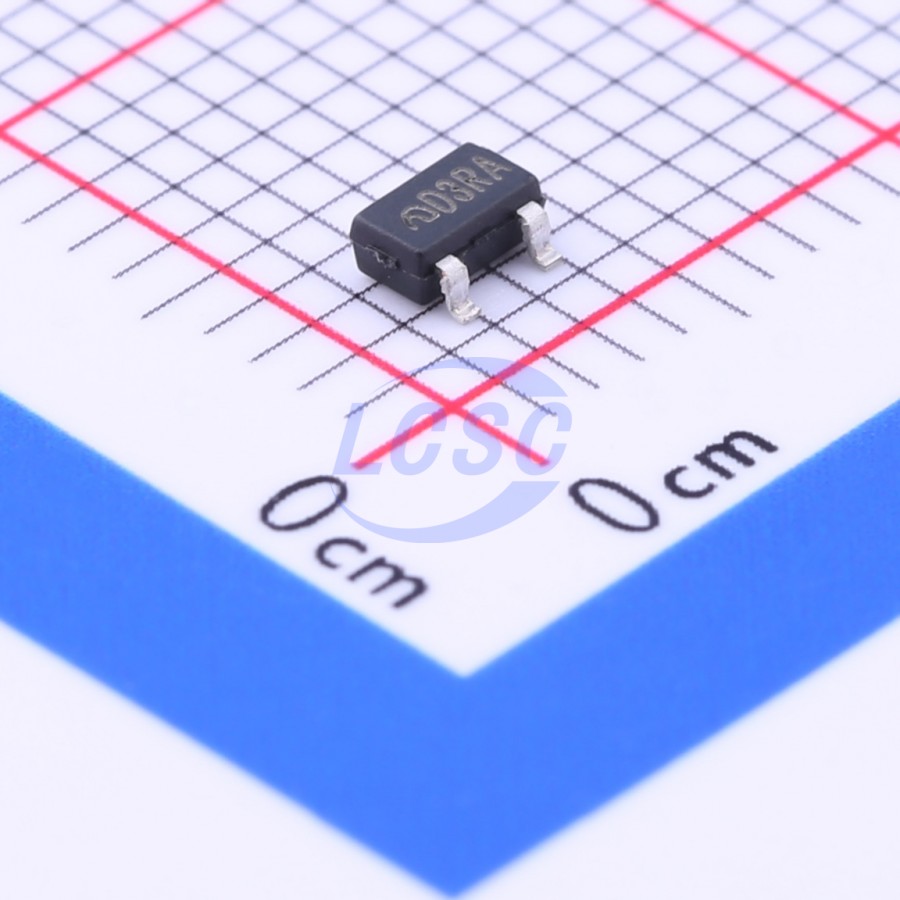

MICRONE

ME2108A33M3G

180kHz Boost Fixed 3.3V 400mA SOT-23 Voltage Regulators - DC DC Switching Regulators

SOT-23RoHSActive

DC/DC Step up Converter

Manufacturer: MICRONE
Manufacturer part #: ME2108A33M3G
Store part #: C236804
Package / case: SOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,680 in stock

#C236804

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
10+	₹9.55	₹95.50
100+	₹7.55	₹755.00
300+	₹6.55	₹1,965.00
3,000+	₹5.81	₹17,430.00
6,000+	₹5.20	₹31,200.00
9,000+	₹4.91	₹44,190.00

Quantity (min 10, multiples of 10)

10 × ₹9.55

₹95.50

excl. GST

₹112.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME2108A33M3G

₹95.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+85℃@(TA)
Frequency - Switching: 180kHz
Function: Boost
Number of Outputs: 1
Output Type: Fixed
Topology: Boost
Operating Voltage: 900mV~6.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 400mA
Quiescent Current: 50uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

ME2108 Series is a PFM Step-up DC/DC converter IC with low supply current by CMOS process. High frequency noise that occurs during switching is reduced by using advanced circuit designed, output voltage is programmable in 0.1V steps between 2.0~7.0V and maximum frequency is 180KHz(Typ.). A low ripple, high efficiency step-up DC/DC converter can be constructed of ME2108Xxx with only three external components. Also available is a CE(chip enable) function that reduce power dissipation During shut-down mode. ME2108Xxx is suitable for use with battery-powered instruments with low noise and low supply current.

Applications

Power source for battery-powered equipment
Power source for wireless mouse, wireless keyboard, toys, cameras, camcorders, VCRs, PDAs, and hand-held communication equipment
Power source for appliances which require higher cell voltage than that of batteries used in the appliances

Key features

Low ripple and low noise
Operating voltage range: 0.9V~6.5V
Output voltage range: 2.0V~7.0V(step 0.1V)
Output voltage accuracy: ±2.5%
Output Current: if Vin = 3.0V and Vout = 5.0V, then Iout = 400mA
Low start voltage: ≤0.9V (at Iout = 1mA)
Maximum oscillator frequency: 180KHz(Typ.)
High Efficiency: 85% (Type)
PACKAGE: SOT23, SOT89
