MICRONEDatasheet (PDF)

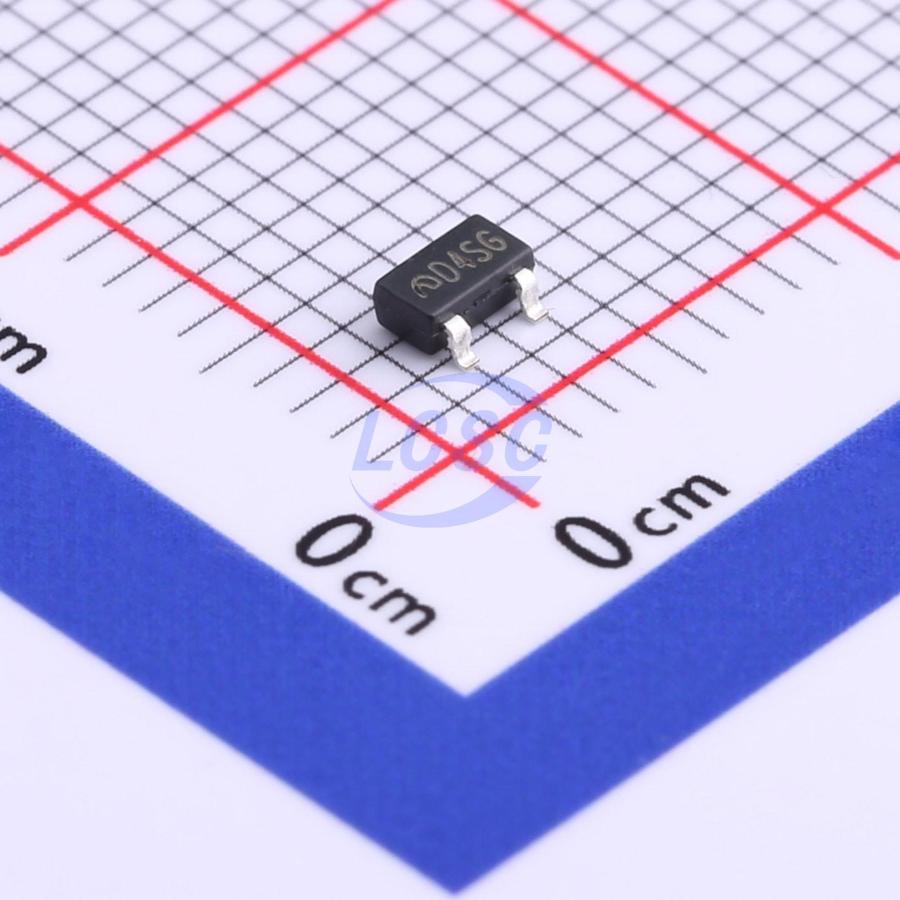

ME2108A50M3G
180kHz Boost Fixed 2V~7V 400mA SOT-23-3L Voltage Regulators - DC DC Switching Regulators
SOT-23-3LRoHSActive
PFM Step-up DC/DC Converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2108A50M3G
- Store part #
- C14839
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C14839
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.92 | ₹792.00 |
| 300+ | ₹6.92 | ₹2,076.00 |
| 3,000+ | ₹5.86 | ₹17,580.00 |
| 6,000+ | ₹5.25 | ₹31,500.00 |
| 9,000+ | ₹4.96 | ₹44,640.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2108A50M3G
₹99.50 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 180kHz
- Function
- Boost
- Number of Outputs
- 1
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~6.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2V~7V
- Output Current
- 400mA
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
ME2108 Series is a PFM Step-up DC/DC converter IC with low supply current by CMOS process. High frequency noise that occurs during switching is reduced by using advanced circuit designed, output voltage is programmable in 0.1V steps between 2.0~7.0V and maximum frequency is 180KHz(TYP.). A low ripple, high efficiency step-up DC/DC converter can be constructed of ME2108Xxx with only three external components. Also available is a CE(chip enable) function that reduce power dissipation During shut-down mode. ME2108Xxx is suitable for use with battery-powered instruments with low noise and low supply current.
Applications
- Power source for battery-powered equipment
- Power source for wireless mouse, wireless keyboard, toys, cameras, camcorders, VCRs, PDAs, and hand-held communication equipment
- Power source for appliances which require higher cell voltage than that of batteries used in the appliances
Key features
- Low ripple and low noise
- Operating voltage range: 0.9V~6.5V
- Output voltage range: 2.0V~7.0V(step 0.1V)
- Output voltage accuracy: ±2.5%
- Output Current: If V1N = 3.0 V and V0UT = 5.0V, then lOUT = 400mA
- Low start voltage: ≲0.9V (at lOUT = 1mA)
- Maximum oscillator frequency: 180KHz(TYP.)
- High Efficiency: 85%(TYP.)
- Package: SOT23、SOT89、TO92
