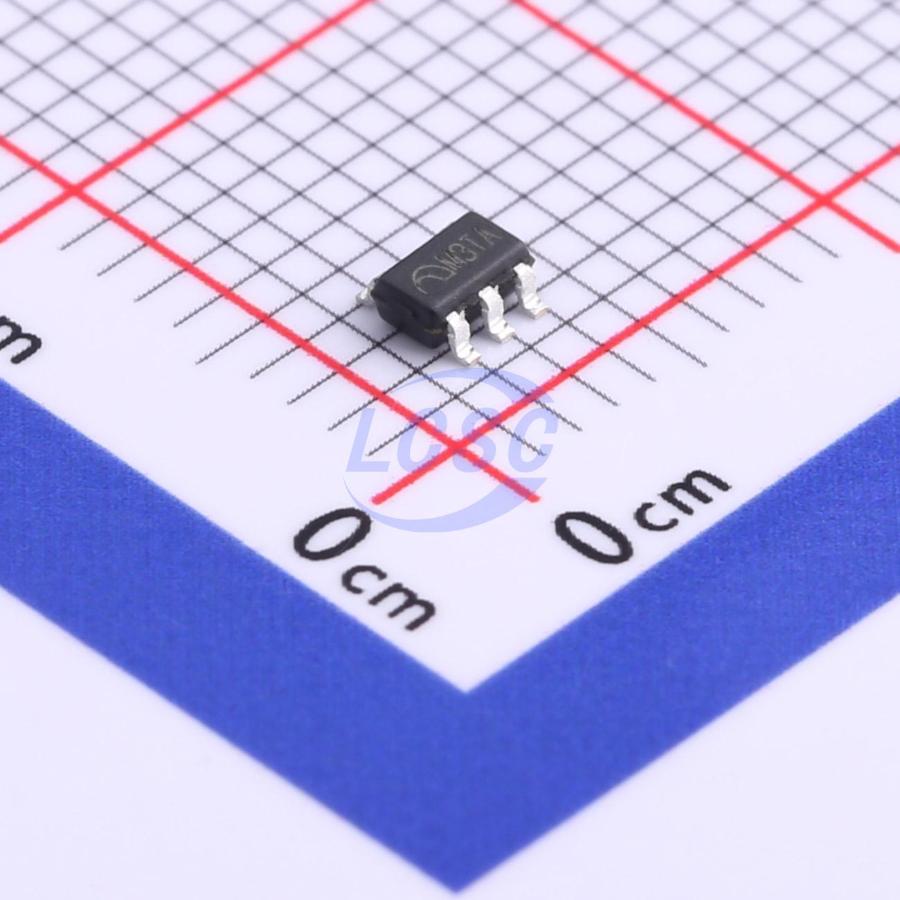

ME2109FM5G
Boost 255kHz~345kHz Adjustable 1.5V~6.5V SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
Ultra-Small Package PWM/PFM Switching Control Step-Up Switching Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2109FM5G
- Store part #
- C84116
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,135 in stock
#C84116
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.86 | ₹84.30 |
| 50+ | ₹13.20 | ₹660.00 |
| 150+ | ₹11.39 | ₹1,708.50 |
| 500+ | ₹10.02 | ₹5,010.00 |
| 3,000+ | ₹8.92 | ₹26,760.00 |
| 6,000+ | ₹8.37 | ₹50,220.00 |
5 × ₹16.86
₹84.30
excl. GST
₹99.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2109FM5G
₹84.30 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Function
- Boost
- Frequency - Switching
- 255kHz~345kHz
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.8V~6V
- Switch tube (built-in/external)
- External
- Output Voltage
- 1.5V~6.5V
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The ME2109 series is a CMOS step-up switching regulator which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM/PFM switching control circuit. With an external low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current. The ME2109 series switches its operation to the PFM control circuit whose duty ratio is 15 % with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.
Applications
- Mobile phones (PDC, GSM, CDMA, IMT200 etc.)
- Bluetooth equipment
- PDA
- Portable communication modem
- Portable games
- Cameras
- Digital cameras
- Cordless phones
- Notebook computers
Key features
- Low voltage operation: Start-up is guaranteed from 0.9V(10uT = 1 mA)
- Duty ratio: Built-in PWM/PFM switching control circuit 15 to 78 %
- Oscillator frequency: 300KHz
- External parts: coil, diode, capacitor, and transistor
- Output voltage range: 1.5V ~ 6.5V
- Output voltage accuracy: ±2%
- Soft start function: 2 ms
- PACKAGE: SOT-23-5
