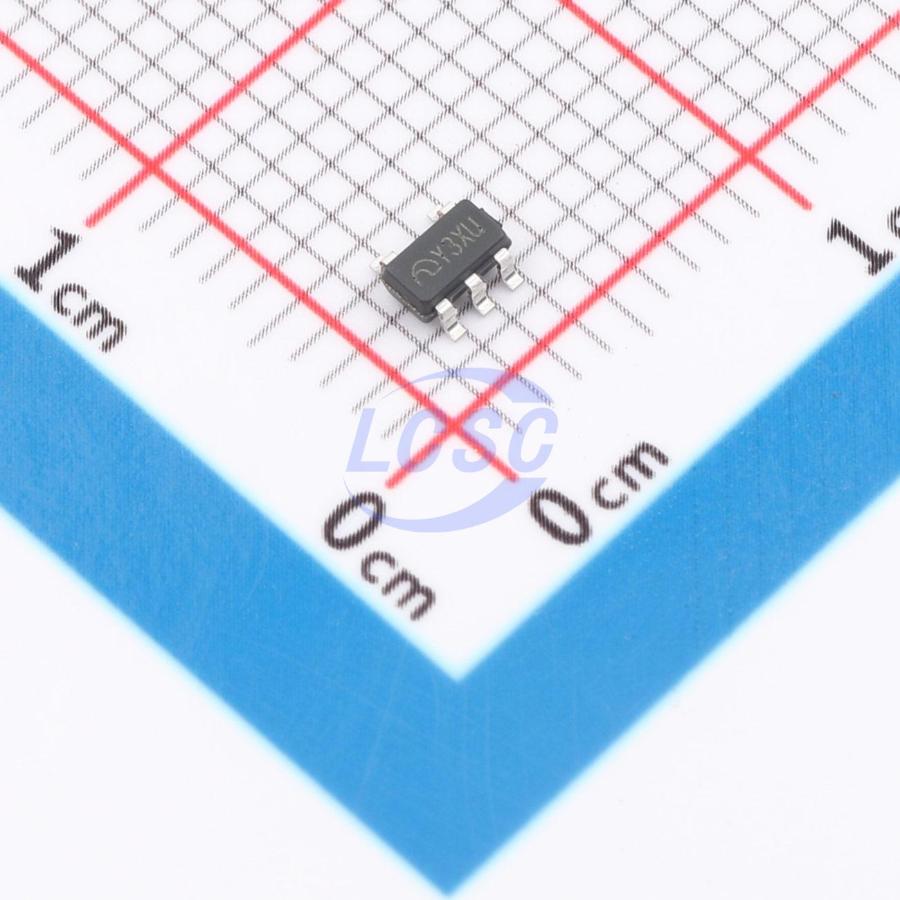

ME2110C33M5G

The ME2110 series DC/DC ICs are low quiescent current PFM switching boost converters fabricated using CMOS process technology. This series employs advanced circuit design and manufacturing processes to significantly reduce the inherent noise issues of switching circuits, minimizing interference to surrounding circuitry. The output voltage range is 1.8V to 6.0V (in 0.1V steps). For the ME2110Xxx variants with integrated switching transistors, only three external components are required to form a boost circuit: a Schottky diode, an inductor, and a capacitor. The ME2110Cxx variants with a CE pin feature a shutdown function that reduces chip power consumption to a minimum. This series is suitable for battery-powered devices requiring low noise and relatively high current.

Applications

• Wireless mouse
• Wireless keyboard
• Camera
• Camcorder
• PDA

Key features

• Minimal external components required: only one Schottky diode, one inductor, and one capacitor
• Low ripple and low noise
• Operating voltage range: 0.9V~6.0V
• High load capability: Iout=100mA at Vin=1.2V and Vout=1.9V
• Output voltage range: 1.8V~6.0V (in 0.1V steps)
• High output voltage accuracy: ±2%
• Low startup voltage: 0.9V maximum (at 1mA output current)
• Maximum operating frequency: 360KHz (typical, using ME2110C25 as example)
• High efficiency: 85% typical
