MICRONE

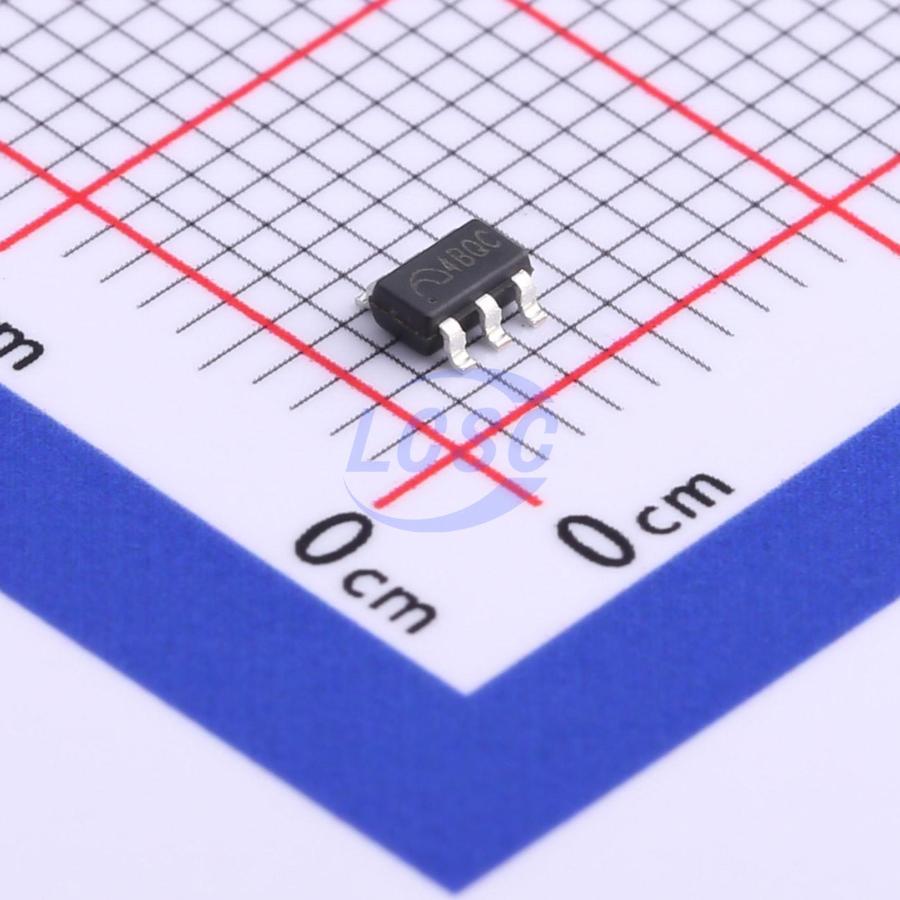

ME2135A33M6G

650kHz boost converter 3.3V 250mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Low-noise charge pump step-up DC-DC converter

Manufacturer: MICRONE
Manufacturer part #: ME2135A33M6G
Store part #: C610271
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,545 in stock

#C610271

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
5+	₹11.19	₹55.95
50+	₹8.96	₹448.00
150+	₹7.83	₹1,174.50
500+	₹7.00	₹3,500.00
3,000+	₹6.10	₹18,300.00
6,000+	₹5.76	₹34,560.00

Quantity (min 5, multiples of 5)

5 × ₹11.19

₹55.95

excl. GST

₹66.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME2135A33M6G

₹55.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 650kHz
Function: boost converter
Features: Low ripple / low noise architecture;Output short-circuit protection;Soft-start;Low-power standby
Operating Voltage: 1.8V~5.5V
Output Voltage: 3.3V
Output Current: 250mA
Quiescent Current: 400uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

ME2135 is a low-noise charge pump boost DC-DC converter with an input voltage range of 1.8V - 5.5V, operating at a constant frequency of 650KHz, capable of delivering load currents up to 250mA. It requires no external inductor for boost operation. The minimal external components (one FLY capacitor and two bypass capacitors at VIN and VOUT) combined with its compact package deliver high integration, low noise, low EMI, and low ripple, making it ideal for small battery-powered applications. Internal thermal shutdown and output short-circuit protection are included. A soft-start circuit limits inrush current during startup, and shutdown current is less than 0.1uA.

Applications

White LED driver
Li-ion battery powered applications
3V to 5V conversion applications
2AA battery to 3.3V conversion applications
Smart card reader

Key features

Output voltage accuracy ±3%
Input voltage range 1.8V - 5.5V (VO = 3.3V), 2.7V - 5.5V (VO = 5.0V)
Output current up to 250mA (VIN = 3.0V, VO = 3.3V), 300mA (VIN = 3.6V, VO = 5.0V)
Operating frequency 650KHz
Shutdown current < 0.1uA
Inductor-free application
Short-circuit protection
Soft start
