MICRONEDatasheet (PDF)

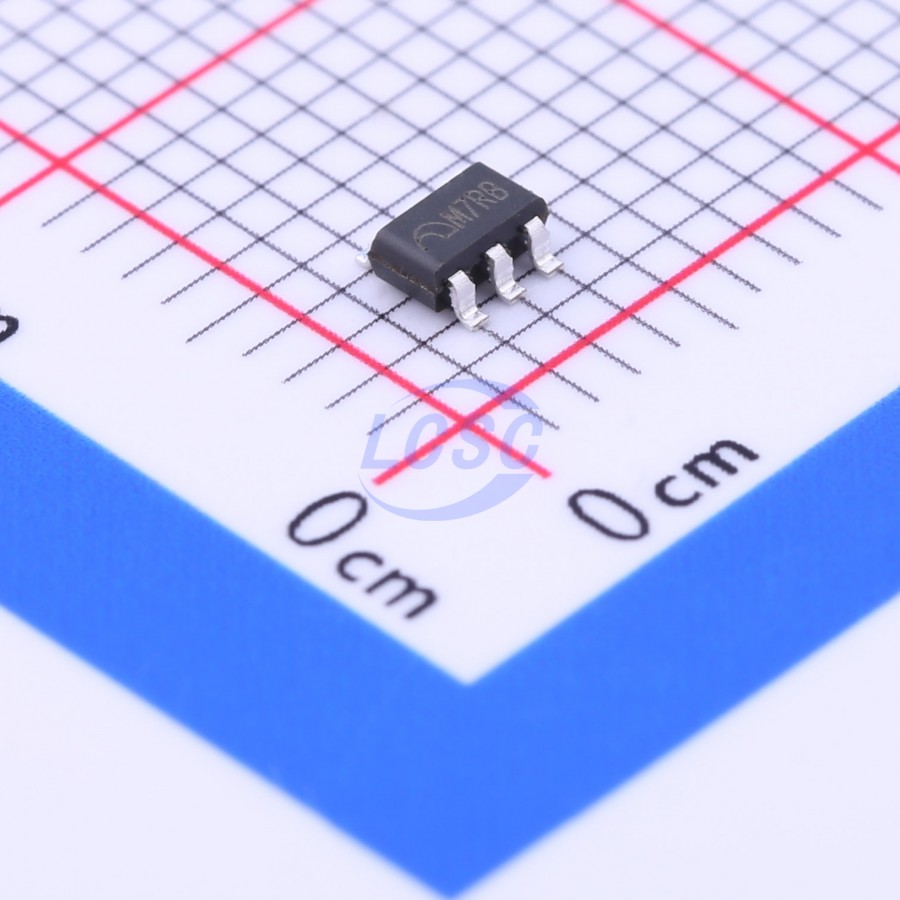

ME2149FM5G
1.2MHz Boost Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
PWM/PFM Switching Control Step-Up Switching Regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME2149FM5G
- Store part #
- C236786
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C236786
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.56 | ₹127.80 |
| 50+ | ₹20.08 | ₹1,004.00 |
| 150+ | ₹17.73 | ₹2,659.50 |
| 500+ | ₹14.80 | ₹7,400.00 |
| 3,000+ | ₹12.59 | ₹37,770.00 |
| 6,000+ | ₹11.81 | ₹70,860.00 |
5 × ₹25.56
₹127.80
excl. GST
₹150.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2149FM5G
₹127.80 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 25uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The ME2149 series is a CMOS step-up switching regulator which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM/PFM switching control circuit. With an internal low-ON-resistance Nch Power MOS, this product is applicable to applications requiring high efficiency and high output current. The ME2149 series switches its operation to the PFM control circuit whose duty ratio is 15% with to the PWM/PFM switching control circuit under a light load and to prevent decline in the efficiency by IC operation current.
Applications
- MP3 players, digital audio players
- Digital cameras, GPS, wireless transceiver
- Portable devices
Key features
- Low voltage operation: Start-up is guaranteed from 0.9V (I_OUT = 1 mA)
- Duty ratio: Built-in PWM/PFM switching control circuit 15 to 78%.
- Oscillator frequency: 1.0MHz
- Output voltage range: < 20V
- Feedback voltage accuracy: ±2%
- Soft start function: 2 mS
