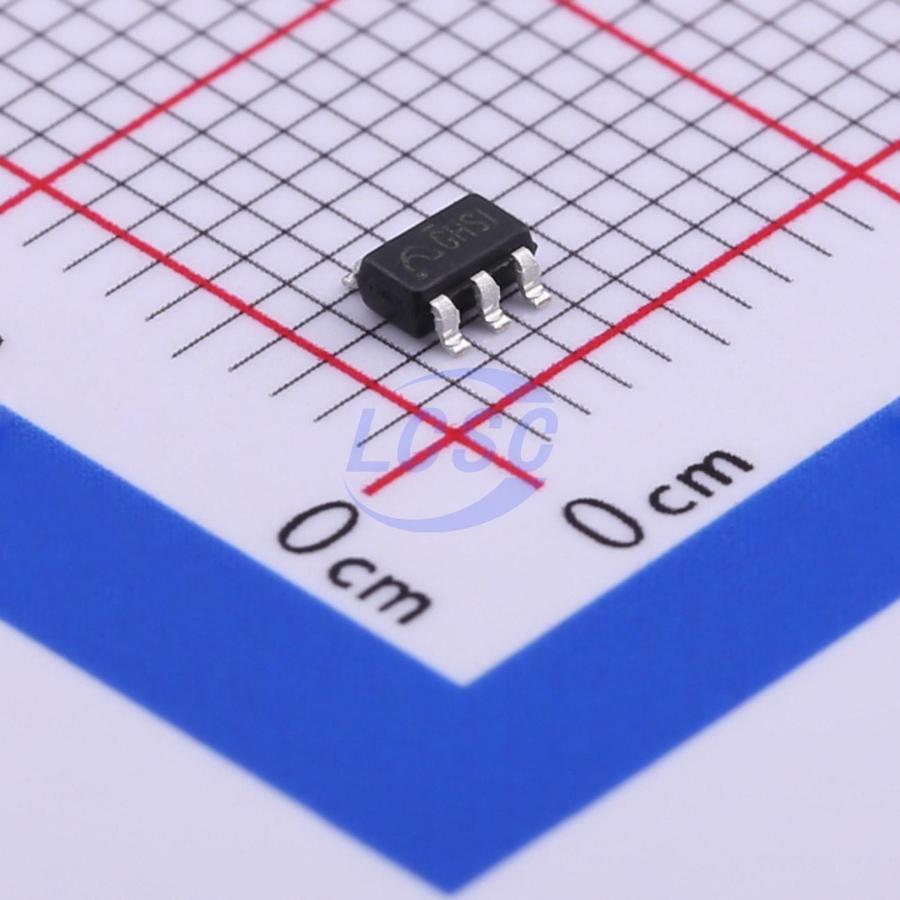

ME2169AM6G

ME2169 is a CMOS boost DC/DC controller comprising a reference voltage source, oscillator circuit, error amplifier, phase compensation circuit, current limiting circuit, and PWM/PFM control circuit. By utilizing an external enhancement-mode N-channel power MOSFET with low on-resistance, it is well suited for applications requiring high efficiency and high output current. In addition, output current limiting can be achieved by connecting a current sensing resistor (RSENSE) to the VSENSE pin. Since the current sensing voltage (VSENSE) is set to 100mV ± 10%, power dissipation across RSENSE is minimized. The ME2169 supports ceramic capacitors for the external output capacitor. Furthermore, its compact SOT23-6 package makes it ideal for high-density mounting applications requiring high precision and high efficiency.

Applications

• Mobile power banks, digital audio players
• LED lighting, GPS, cordless transceivers
• Other portable devices

Key features

• Configurable current limit: e.g., with RSENS = 50mΩ, current limit is 2A.
• Duty cycle range: up to 78% (PWM mode) based on PWM/PFM switching control.
• Operating frequency: 1.0MHz
• Reference voltage: 1.25V ± 2.0%
• Low quiescent current: 60μA (typ.) at standby
• Output current: 3A (VIN = 3.6V, VOUT = 5.0V, current limit set ≥ 3A)
• Soft-start time: 2ms (typ.)
• UVLO function: VDD < 2.3V
• External components: inductor, diode, capacitor, transistor, resistor
