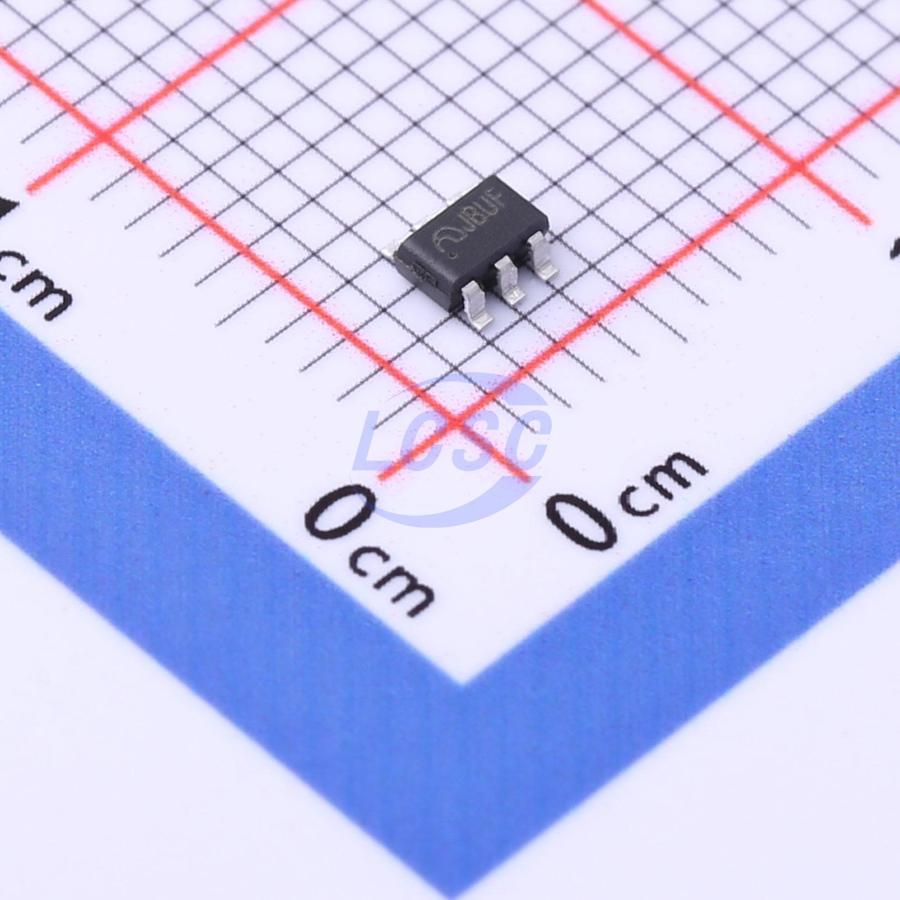

MICRONE

ME2214AM6G

1MHz 1 Boost 260mA 2.5V~5.5V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

Small Package, High Performance, Asynchronous Boost For WLED Driver

Manufacturer: MICRONE
Manufacturer part #: ME2214AM6G
Store part #: C2925759
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,725 in stock

#C2925759

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.32	₹91.60
50+	₹14.42	₹721.00
150+	₹12.48	₹1,872.00
500+	₹11.02	₹5,510.00
3,000+	₹9.83	₹29,490.00
6,000+	₹9.25	₹55,500.00

Quantity (min 5, multiples of 5)

5 × ₹18.32

₹91.60

excl. GST

₹108.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME2214AM6G

₹91.60 for 5 + GST

Specifications

Features: Built-in soft-start;Over Voltage Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Boost
Output Current: 260mA
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The ME2214 is a high frequency, asynchronous boost converter. The internal MOSFET can support up to 6 series or 3x13 White LEDs for backlighting and OLED power application, and the internal soft start function can reduce the inrush current. The device operates with 1-MHz fixed switching frequency to allow small external components and to simplify possible EMI problems. Moreover, the IC comes with 26V over voltage protection to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs.
