VBsemi ElecDatasheet (PDF)

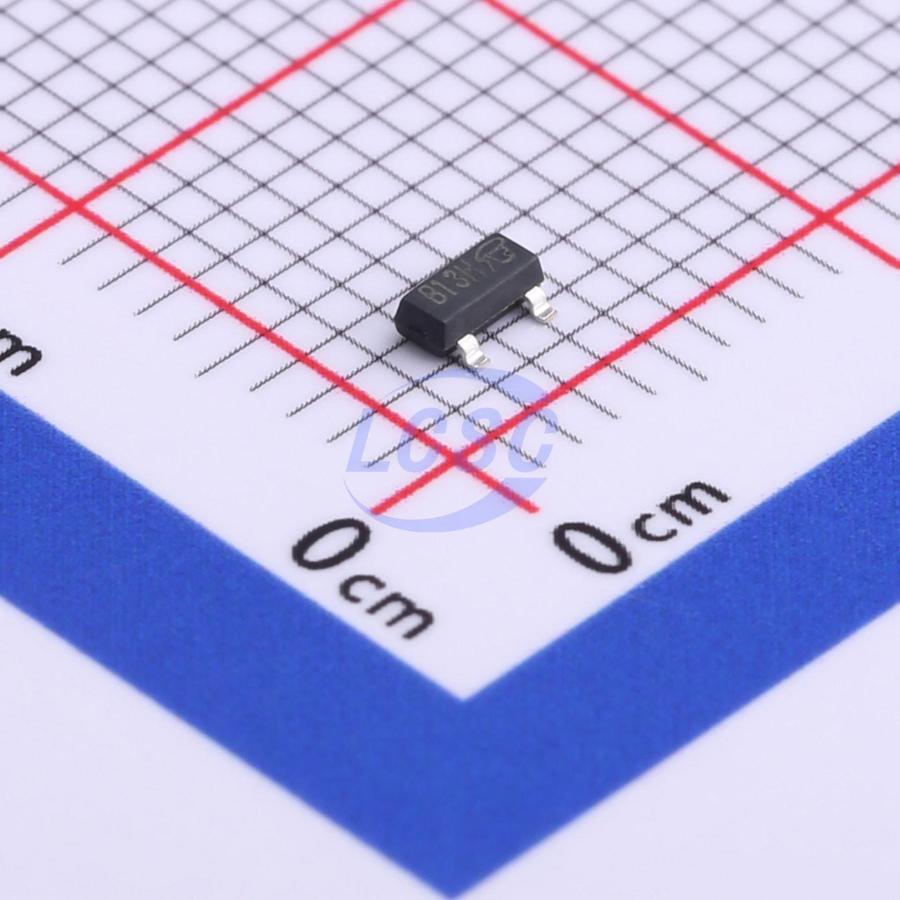

ME2310-VB
N-Channel 30V 6.5A 1.7W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 30V 6.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ME2310-VB
- Store part #
- C693150
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C693150
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.21 | ₹81.05 |
| 50+ | ₹13.44 | ₹672.00 |
| 150+ | ₹12.05 | ₹1,807.50 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 3,000+ | ₹7.63 | ₹22,890.00 |
| 6,000+ | ₹7.22 | ₹43,320.00 |
5 × ₹16.21
₹81.05
excl. GST
₹95.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME2310-VB
₹81.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- DC-DC Converter
Key features
- Halogen-free product as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AM2340N-T1-PF-VB#C19626795VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹12.77 · 50 in stock | View |
 | FDN359BN-NL-VB#C20626339VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹13.24 · 100 in stock | View |
 | CES2320-VB#C20755488VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹13.24 · 50 in stock | View |
 | AO3408-VB#C22389395VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 115 | ₹16.51 · 115 in stock | View |
 | AP2318GEN-VB#C22389556VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 15 | ₹12.77 · 15 in stock | View |
