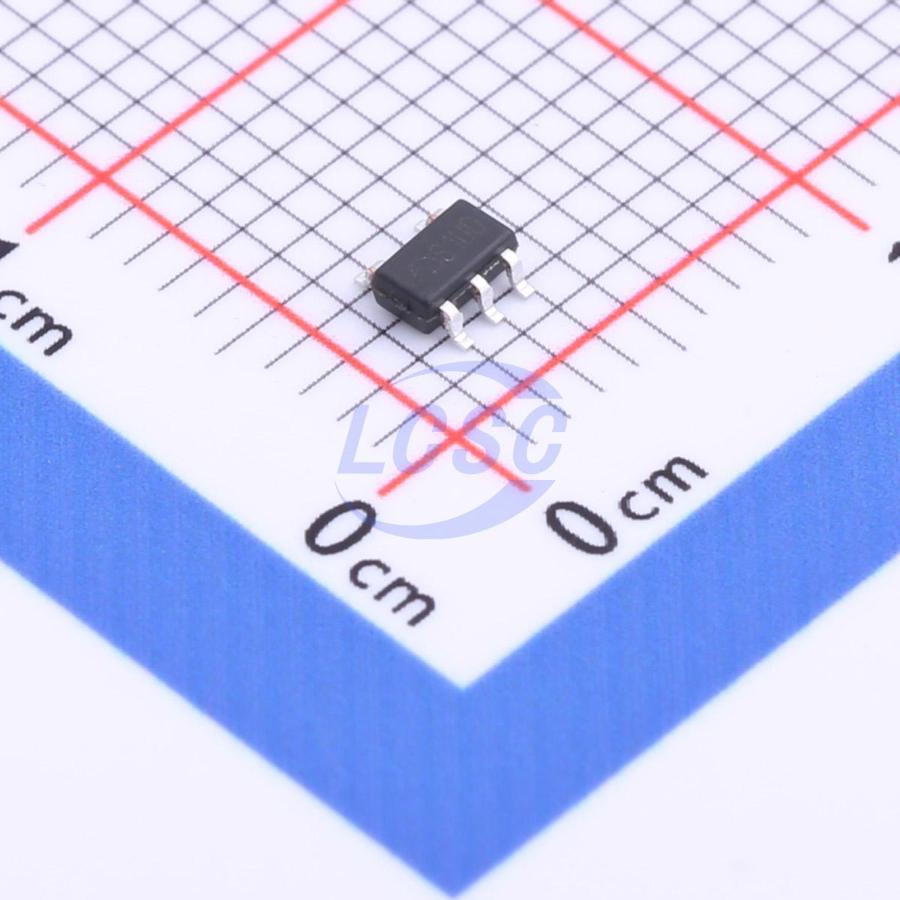

ME3102AM5G

The ME3102 is a step-down current-mode, DC-DC converter. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. To ensure the longest battery life in portable applications, the ME3102 provides a power-saving pulse -Skipping Modulation (PSM) mode to reduce quiescent current under light load operation to save power. The ME3102 supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell, USB, and other standard power sources. The output voltage is adjustable from 0.6V to the input voltage, while the part number suffix ME3102 indicates pre-set output voltage of 3.3V, 2.8V, 2.5V, 1.8V, 1.5V, 1.2V or adjustable. All versions employ internal power switch and synchronous rectifier for to minimize external part count and realize high efficiency. During shutdown, the input is disconnected from the output and the shutdown current is less than 0.1μA. Other key features include under-voltage lockout to prevent deep battery discharge.

Applications

• Cellular Phone
• Portable Electronics
• Wireless Devices
• Cordless Phone
• Computer Peripherals
• Battery Powered Widgets
• Electronic Scales
• Digital Frame

Key features

• Efficiency up to 96%
• Only 45μA (TYP.) Quiescent Current
• Output Current: Up to 1A
• Internal Synchronous Rectifier
• 1.75MHz/1.4MHz Switching Frequency
• Soft Start
• Short Circuit Protection
