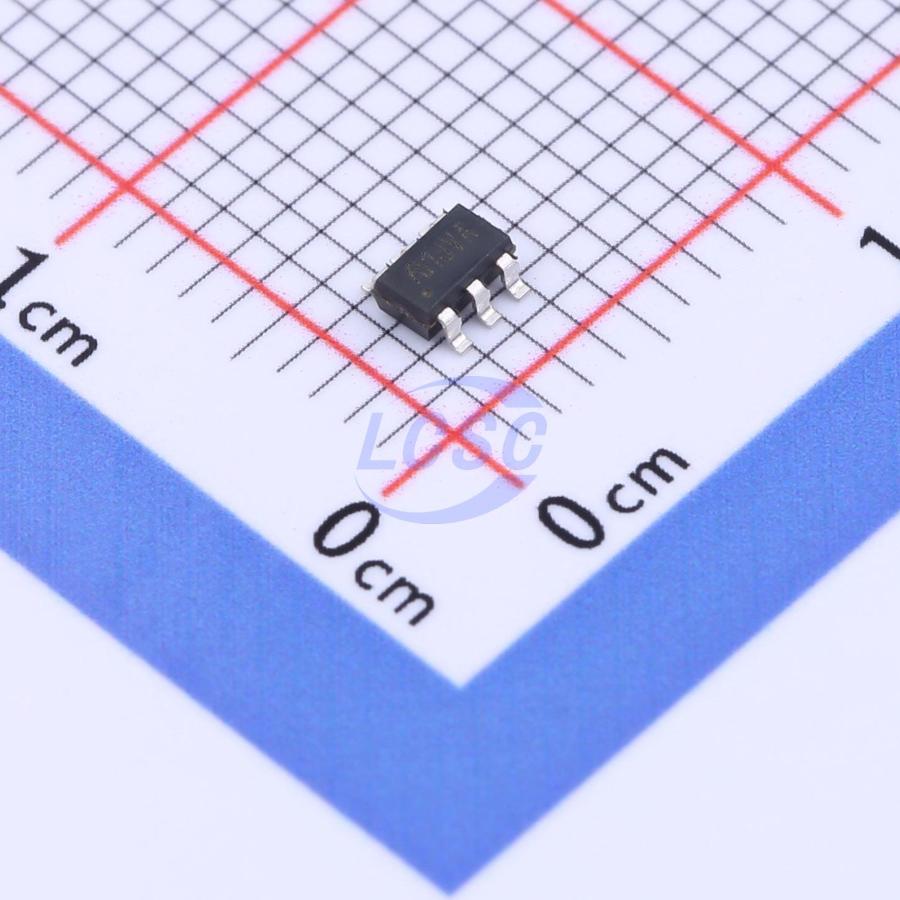

MICRONE

ME3113AM6G

Buck Switching Regulator IC 0.6V~12V 1 Output 3A SOT-23-6

SOT-23-6RoHSActive

High Efficiency 18V Input 3A Load Synchronous Rectification DC-DC Buck Converter

Manufacturer: MICRONE
Manufacturer part #: ME3113AM6G
Store part #: C2983808
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,775 in stock

#C2983808

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.73	₹163.65
50+	₹26.61	₹1,330.50
150+	₹23.99	₹3,598.50
500+	₹20.70	₹10,350.00
3,000+	₹18.87	₹56,610.00
6,000+	₹17.99	₹1,07,940.00

Quantity (min 5, multiples of 5)

5 × ₹32.73

₹163.65

excl. GST

₹193.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ME3113AM6G

₹163.65 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 500kHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 600mV~12V
Quiescent Current: 120uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

ME3113 is a high-efficiency synchronous rectification buck DC-DC converter IC with an input voltage up to 18V. It integrates two low on-resistance NMOSFET power switches internally — low-side switch RDS(ON) of 50mΩ and high-side switch RDS(ON) of 90mΩ — supporting up to 3A load current. Under light-load conditions, the IC operates in PFM mode; under heavy-load conditions, it operates in quasi-PWM mode with continuous current at a switching frequency of 500 kHz. The IC employs adaptive constant on-time control for fast load transient response.

Applications

Set-top box
LCD TV
DSL modem
Digital TV

Key features

Input voltage range: 4.5V ~ 18V
Shutdown current: 8uA
Quiescent current: 120uA
On-resistance: low-side 50mΩ, high-side 90mΩ
Switching frequency: 500kHz
Reference voltage: 0.6V ±2%
Cycle-by-cycle current limiting: peak current limit 5.5A, valley current limit 3.3A
Output short-circuit protection: hiccup mode
Over-temperature protection: 170°C
