MICRONEDatasheet (PDF)

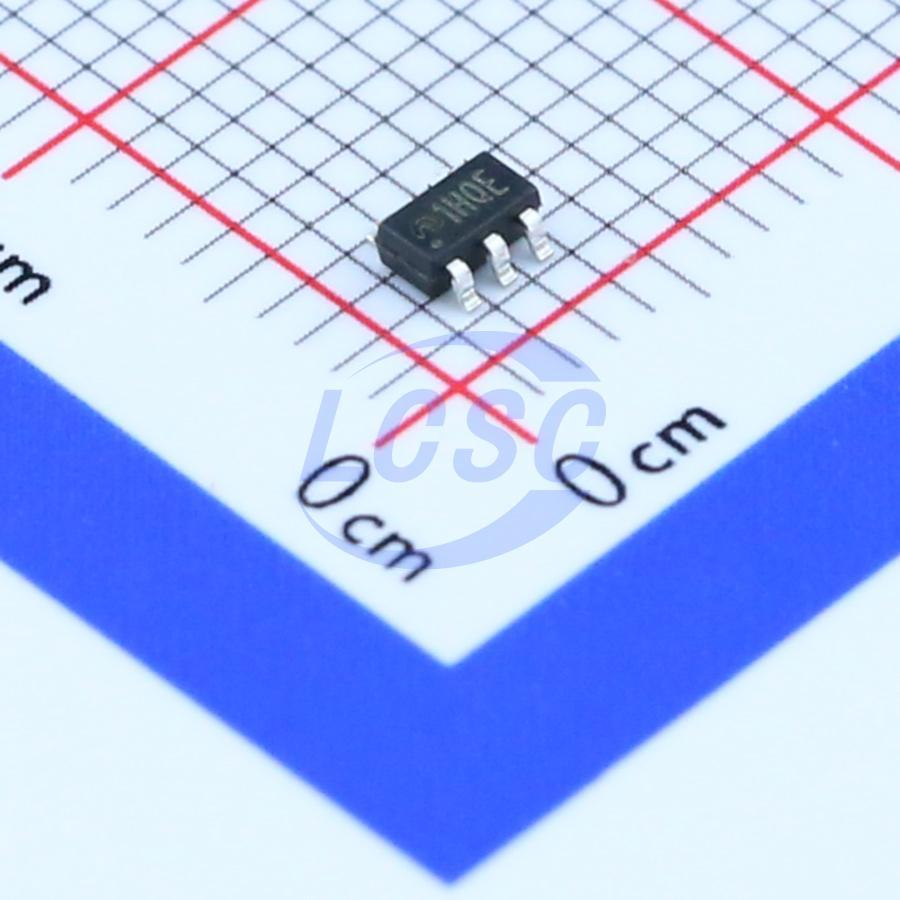

ME3116AM6G
Buck Switching Regulator IC Adjustable 1 Output 1A SOT-23-6
SOT-23-6RoHSActive
DC/DC Buck Regulator with 40V Input and 1A Output
- Manufacturer
- MICRONE
- Manufacturer part #
- ME3116AM6G
- Store part #
- C97643
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,205 in stock
#C97643
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.32 | ₹116.60 |
| 50+ | ₹18.57 | ₹928.50 |
| 150+ | ₹16.26 | ₹2,439.00 |
| 500+ | ₹14.20 | ₹7,100.00 |
| 3,000+ | ₹12.78 | ₹38,340.00 |
| 6,000+ | ₹12.45 | ₹74,700.00 |
5 × ₹23.32
₹116.60
excl. GST
₹137.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME3116AM6G
₹116.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 550kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.75V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 1.35mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
Applications
- Battery-powered devices
- Industrial discrete power supplies
- Portable media devices
- Portable handheld devices
Key features
- Asynchronous rectification step-down regulator with integrated MOSFET
- Up to 1A load capability over 4.75V–40V wide input voltage range
- PWM control mode with excellent transient response and cycle-by-cycle current limiting
- Automatic PFM mode transition under light load for high light-load efficiency
- Integrated power switch with low R<sub>DSON</sub> (typical 0.9Ω), up to 90% typical efficiency
- Built-in soft-start, loop compensation, and 550K fixed switching frequency, minimizing external components
- Over-temperature shutdown, input undervoltage protection, BS undervoltage protection, and short-circuit protection
- Feedback reference voltage: 0.8V
- Input voltage range: 4.75V to 40V
- Output current: up to 1A
- Switching frequency: 550KHz
- Maximum efficiency: 90%
- Automatic PWM/PFM mode switching
- Low shutdown quiescent current: I<sub>Q</sub> = 0.7μA (typical)
- Built-in soft-start
- Built-in compensation
